4.7 Others
4.7.1 Maximum rear body width
The maximum limits on the rear body width is
prescribed in the local laws and regulations.
There is a limitation on rear body width for exterior
mirror and Lamps.
Exterior mirror
The vehicle is shipped from the factory with the
exterior mirrors installed in the "Inside set" position.
Before delivery, relocate the mirrors in the necessary
positions shown in type 1, 2 and Table 1 depending on
the rear body width.

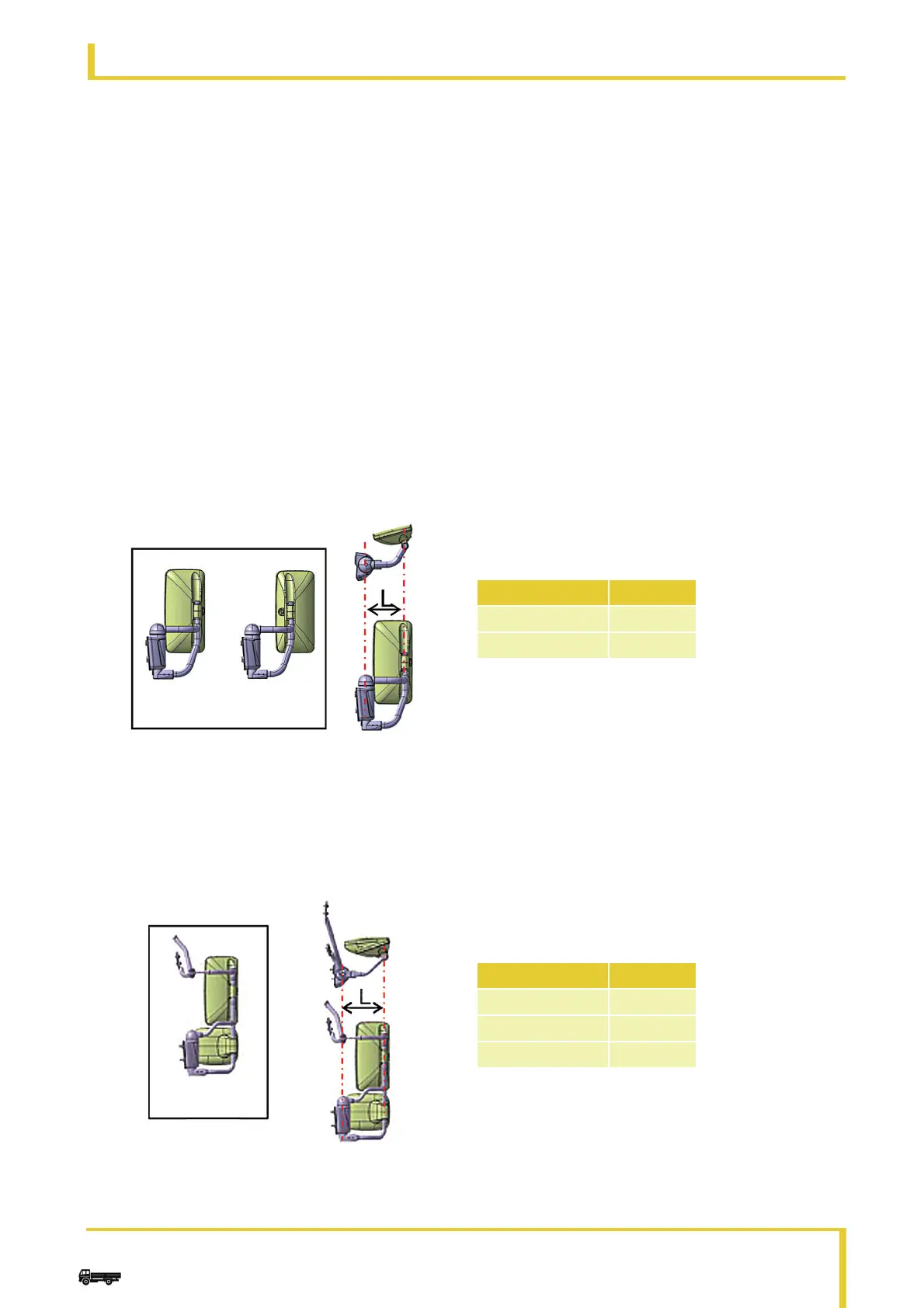

Dimensions for type 1
1Inside
2Outside
Dimensions for type 2
1Inside
21
N88.70-2047-00
Unit: mm
STAY LENGTH L
Short 170
Long 290
Unit: mm
STAY LENGTH L
Short 205
Middle 297.5
Long 390
