6 Modifications to the basic vehicle
6.3 Drilling work on the vehicle frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
6.3 Drilling work on the vehicle frame

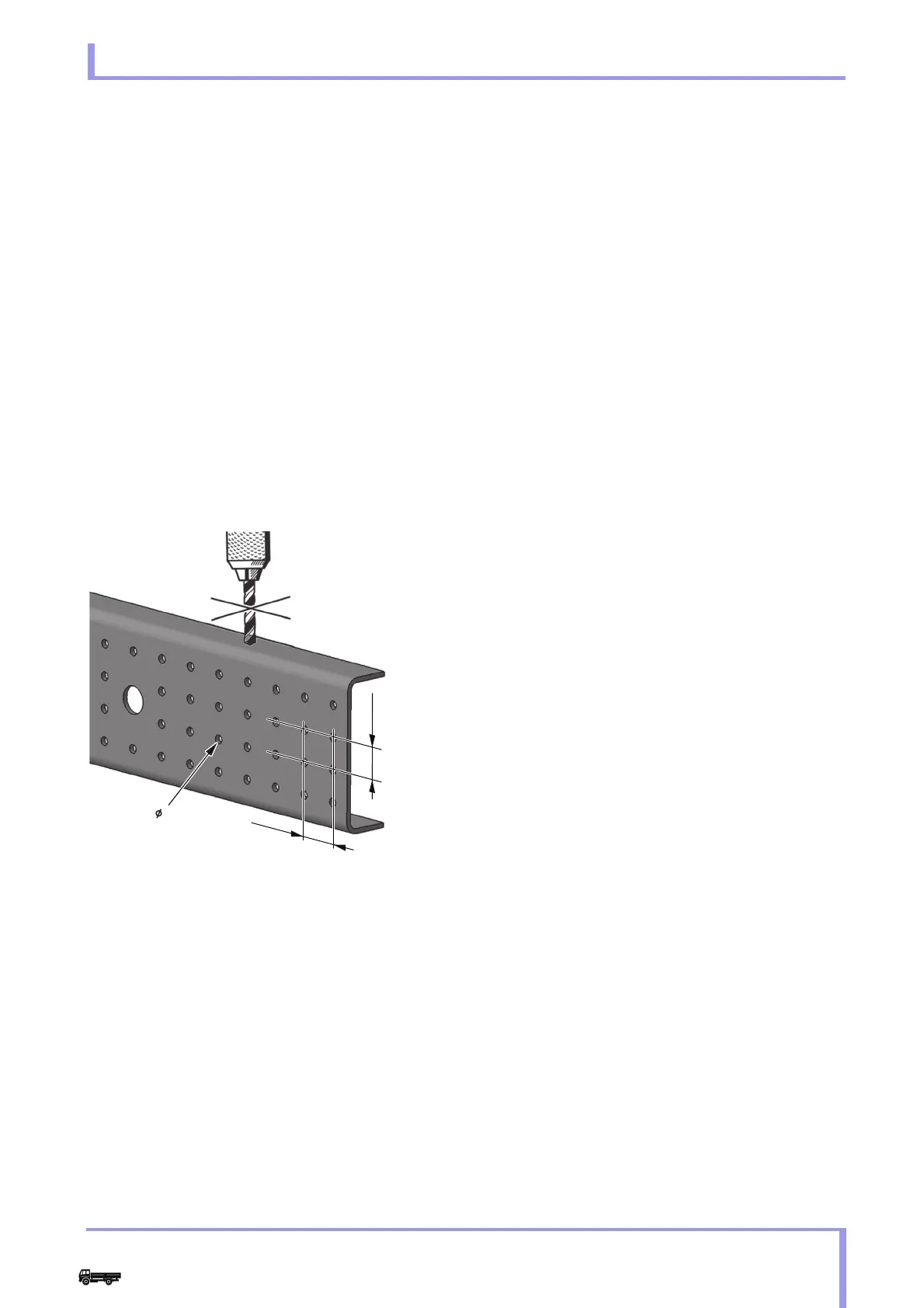

Drilling holes in side rail
• Holes have been drilled in the side rail at regular
intervals (longitudinal pitch 50 mm, vertical pitch
40 mm). Use the existing holes.
• The drilling of futher holes is not permitted.
• Never drill holes in the upper and lower surfaces of
the flange.
• As a rule, no holes may be enlarged. If it is
absolutely necessary to enlarge one, keep its
diameter within 13 mm.
• No load may be applied to the center of the web of
theside rail (diaphragm effect). If this is
unavoidable, make sure that there is a large area of
support on bothsides of the web.
• After drilling deburr all holes.
40 mm
50 mm
N31.00-2208-00
