82
6 Modifications to the basic vehicle
6.3 Drilling work on the vehicle frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
Drilling work on the cross members
• The holes and distances between the holes should
conform to the values specified in the chart below.
Unit: mm
Note*: Maintain the dimensions of previously drilled
holes.
• Holes should be more than 100 mm away from the
end of the side rail flange or the end of the gusset.
• Holes in the web of the channel type cross member
should be 50 mm min. from the end of the cross
member. (Refer to Fig. 2)
• Holes in the flange should be more than 25 mm
from the end.
• Holes should be drilled more than 20 mm from the
curved part of the flange.
Cross member type Hole
diameter
Center-to-
center
distance
of holes
• Alligator type
(see Fig. 1)
• Channel type
(see Fig. 2)
9 max. 30* min.

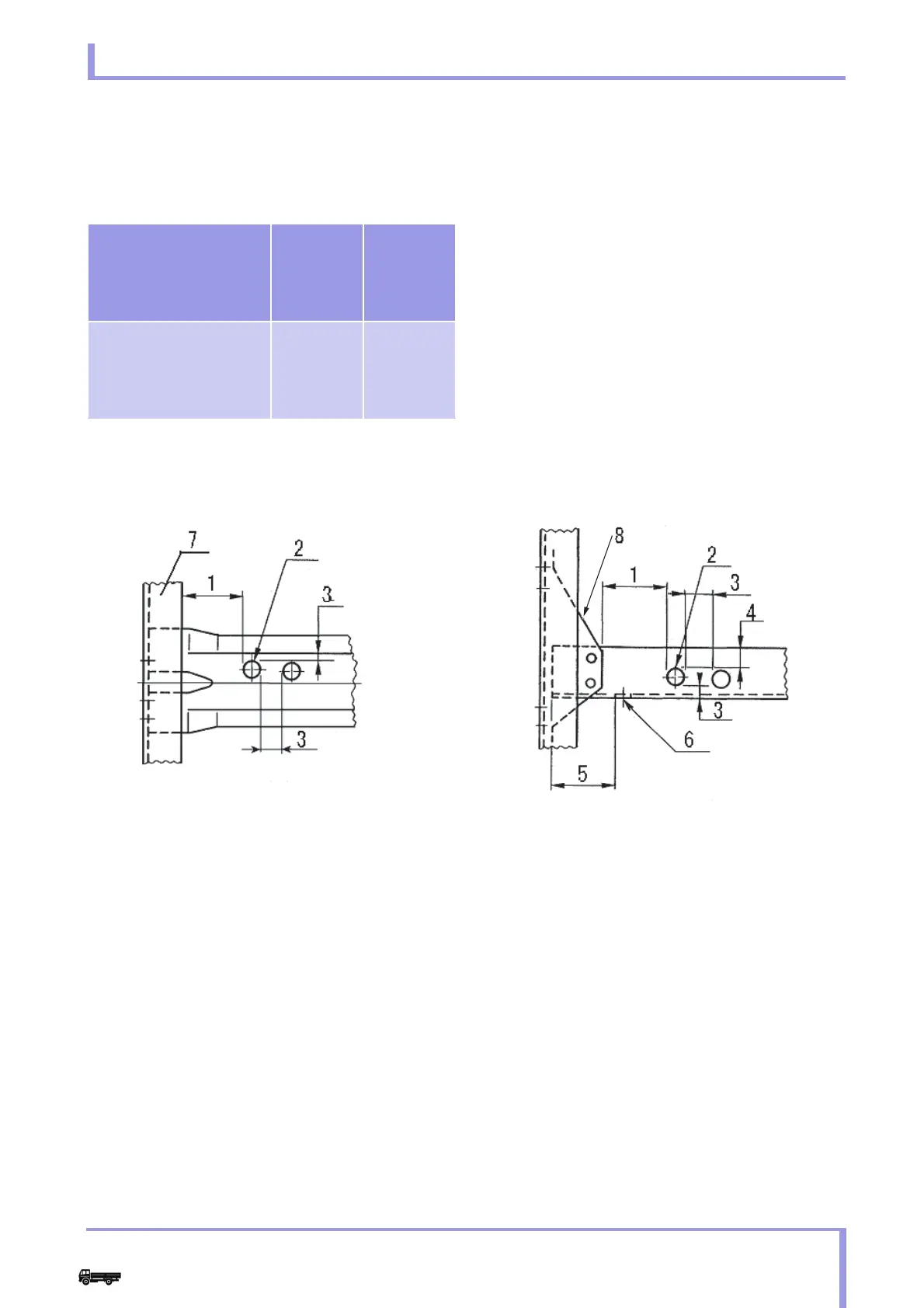

Alligator type Channel type
Fig. 1 Fig. 2
1 100 mm min
2 DIA 9 mm max
3 25 mm min
4 20 mm min
5 50 mm min (Web surface)
6 DIA 13 mm max (Web surface)
7Side rail
8Gusset
