4 Technical threshold values for planning
4.4 Clearance for the basic vehicle and bodies
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

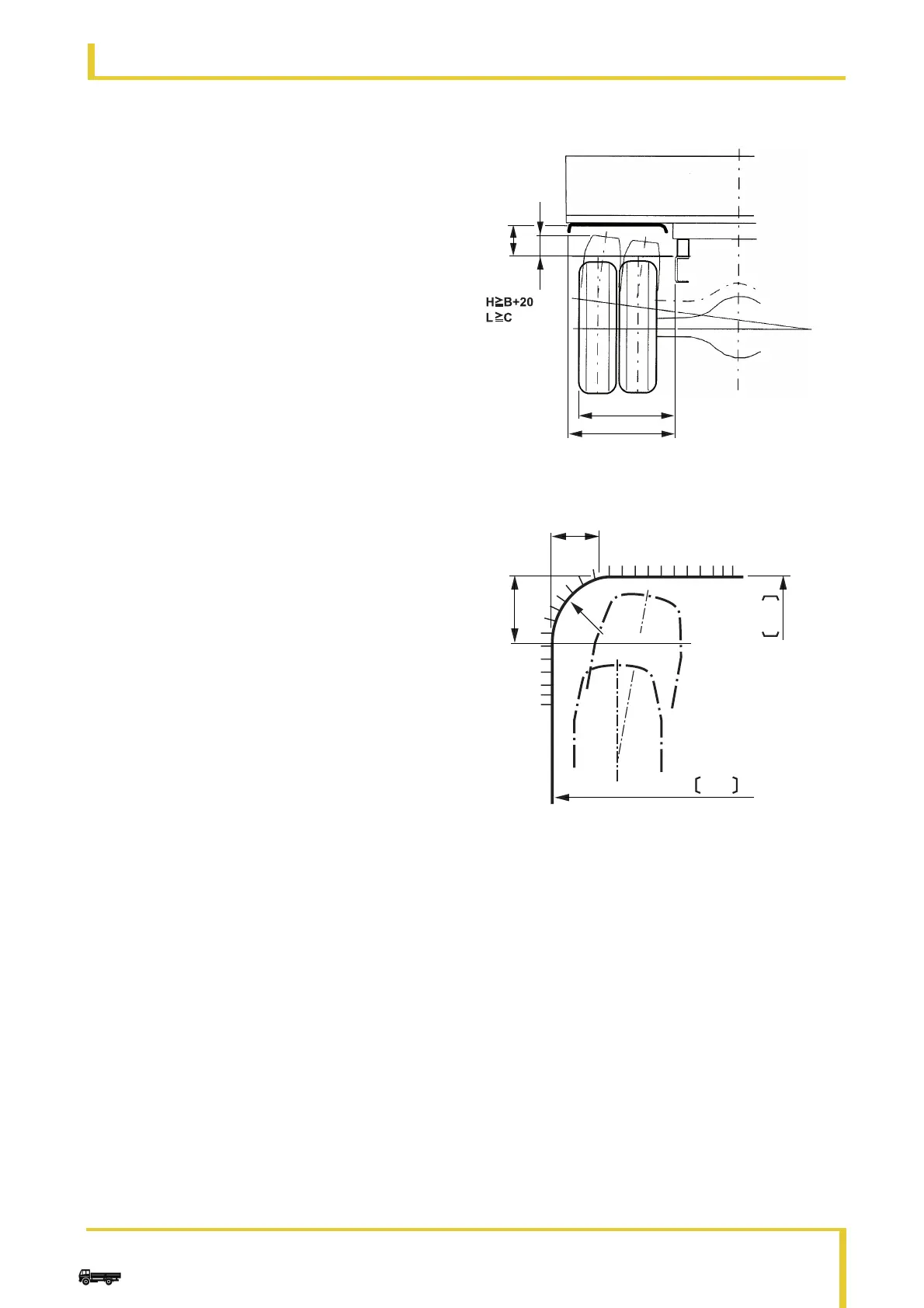

Space above rear axle
Air and electrical lines such as the brake hose and
wiring harness are laid on top of the rear axle.
Provide enough space above the rear axle so that
these lines will not come into contact with any of the
mounting parts even when the axle is elevated to the
highest position.
Refer to "Differential and tire bound height" É 10.6.2.
Attaching the rear fender
The clearance between the rear fender and tire must
be designed to be optimum assuming that the vehicle
is travelling in bad conditions.
Determine the standard clearance from the fender and
top and side surfaces of the frame as follows from
dimensions B and C listed in 10.6 "Differential and tire
bound height" É 10.6.2.
150
100
C+30
B+20
R200
N88.10-2030-00
