8.5 Electric circuit continuity check
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

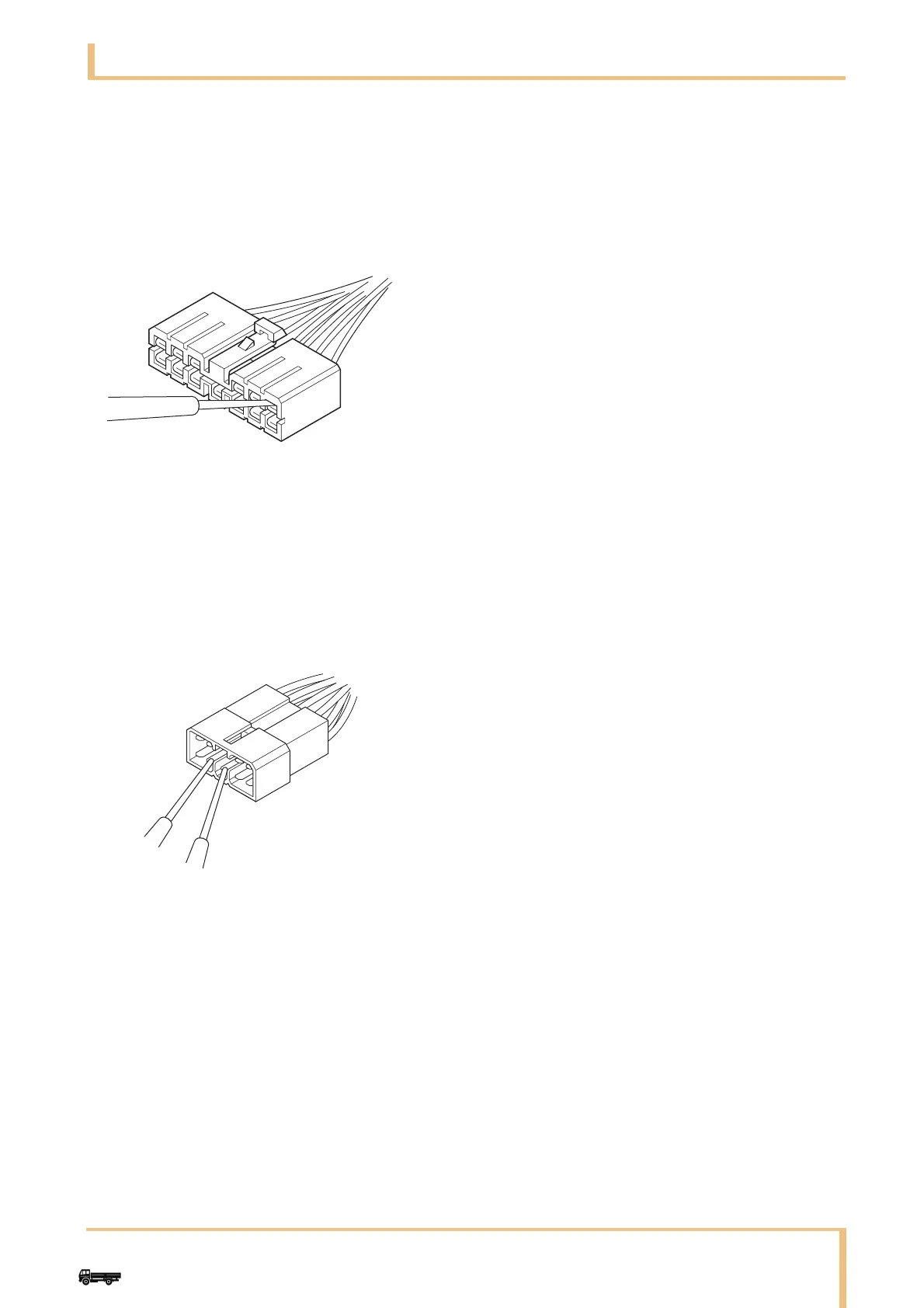

Continuity check with connectors disjoined
Check with female connector pins
• Perform the check with the test bar inserted in the
pins.
• Forced bar insertion could result in poor contact.
Check with male connector pins
• Perform the check applying the test bar directly to
connector pins.
• Take care that the test bar does not short-circuit
between connector pins. In the case of electronic
control units, short-circuiting could break down
their internal circuit.
