4 Technical threshold values for planning
4.6 Vehicle body incline
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
4.6.2 Correction method
The correction method differs depending upon the
posture of the actual vehicle.
Check to see which condition of to shown in the
graph below the measurement results correspond to,
and then carry out correction as follows. (Note that if
you carry out a different kind of correction, the results
may actually become worse.)

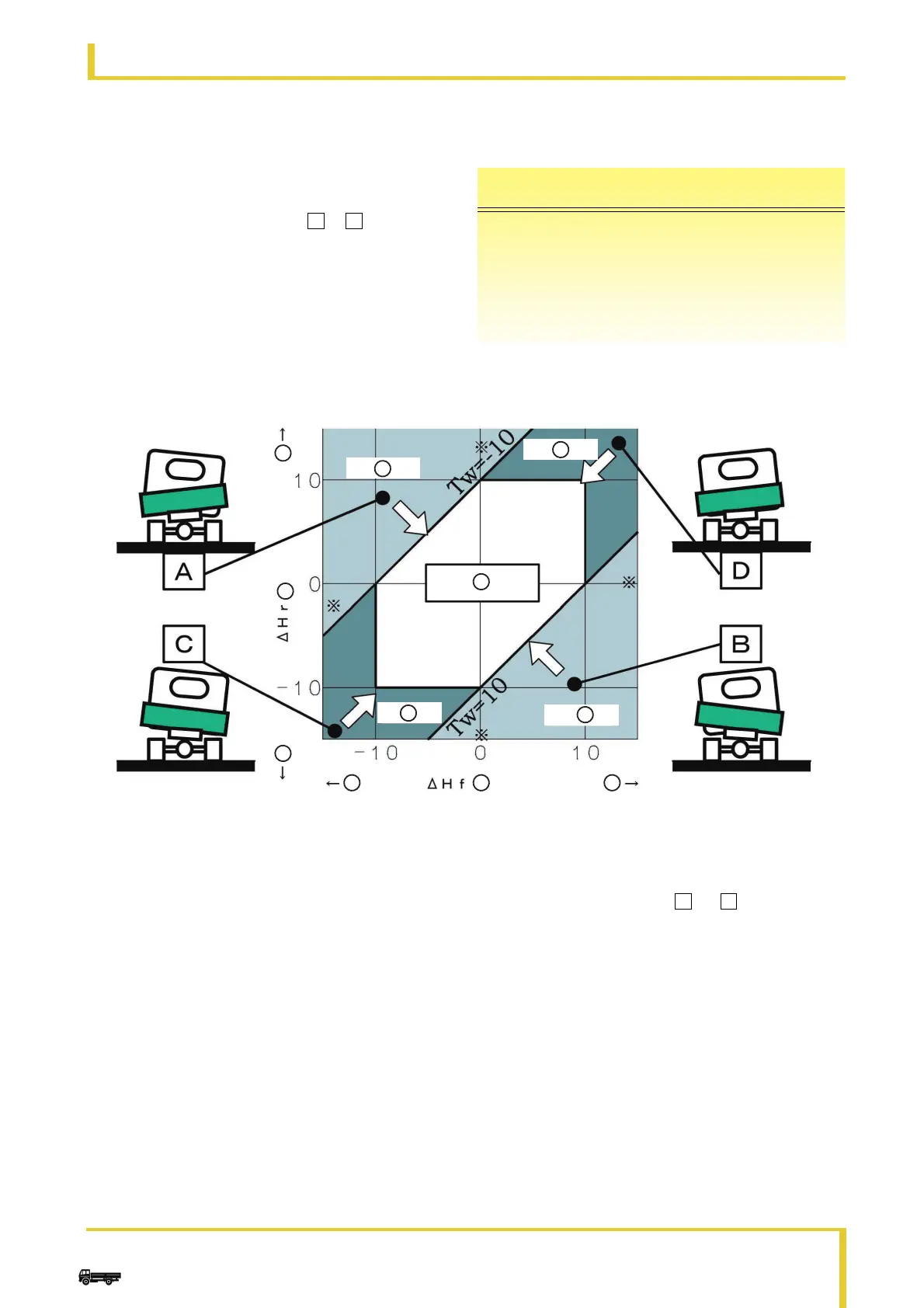

Body posture and applicable correction method
i Additional information
Measure the tilt of the body with the body-building
part mounted.
5
6
8
1
2
3
2
1
7 9
4
N60.00-2260-00
a
Twist
b
Droop
c
Target range
d
Rear
e
Right rising
f
Right falling
g
Front
h
Right falling
i
Right rising
Twist correction (in the case of and : | Tw | > 10 mm)
