6 Modifications to the basic vehicle
6.7 Mounting of implements and auxiliary components
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

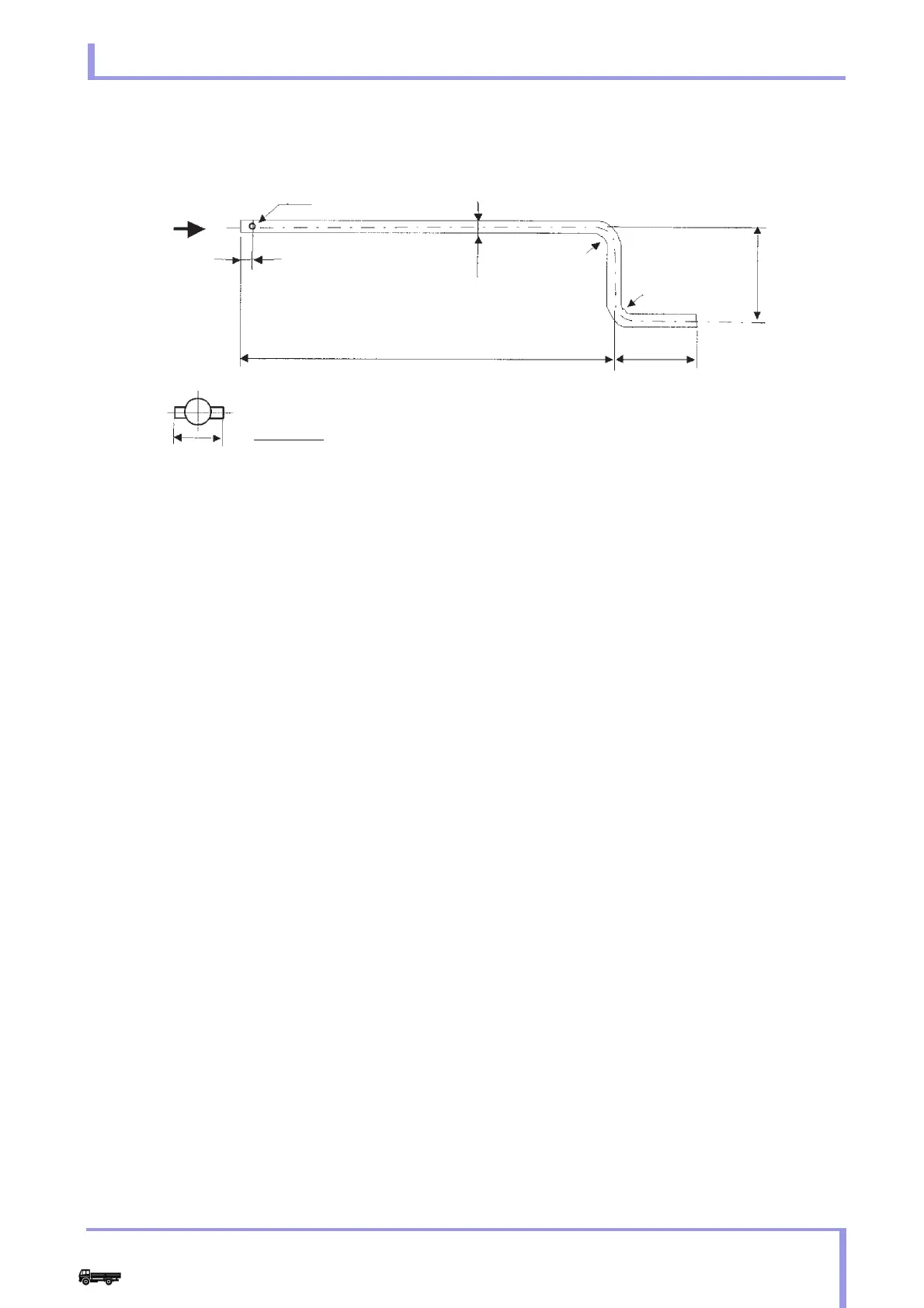

Crank handle (reference)
6.7.4 Mudguards and wheel arches
• The distance from the tire to the mudguard or
wheel arch must be sufficient, even when snow
chains or anti-skid chains are fitted and at full
spring compression (including under torsion). The
dimensional data in the tender drawings must be
observed.
• On chassis with standard bore holes for mudguard
brackets, use these bore holes to secure the
brackets.
Ø8
10
A
Ø16
700
R30
R30
115
150
28
Arrow A
