6 Modifications to the basic vehicle
6.7 Mounting of implements and auxiliary components
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
Check strength of underrun protection and its
mounting in accordance with UN regulation R58.
At maximum deformation, the distance from the end
of the body to the end of the underrun protection at
the load points may not exceed 400 mm.
max.100
700-1000
P
1
P
2
P
3
P
2
P
1

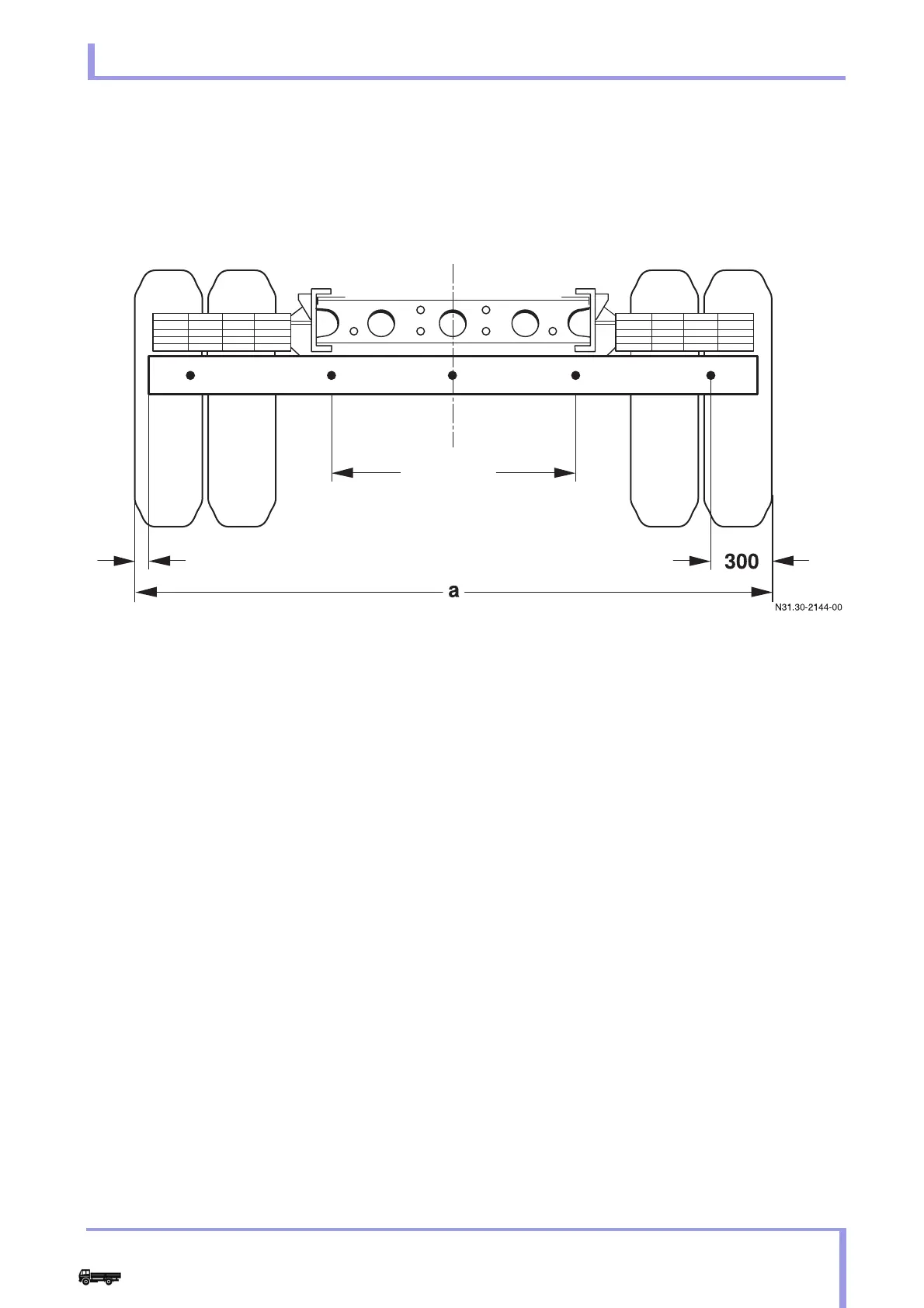

a = Rear axle width
P
1
, P
2
, P
3
= Load application points
