6 Modifications to the basic vehicle
6.8 Cab
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
Attaching the roof deck
Roof
• When attaching externally mounted parts such as
roof deck or drag foiler onto the roof, use the
exclusive mounting holes provided on the roof.
(See Figs. 1 and 2.)
• Prevent the weight of externally mounted parts
attached to the roof from exceeding 50 kg. (See
Figs. 1, 2 and 4.)
• Use nickel-chrome plated stainless steel bolts and
washers.
• Take special care to prevent the body from
becoming scratched when attaching externally
mounted parts.
• Insert packing between externally mounted parts
and the body to prevent rusting. Use RC710CP
(EPDM) rubber or equivalent with a thickness of
2 mm or less and a hole diameter of 8 mm (for
ozone crack prevention).
• After attaching externally mounted parts, coat the
entire periphery of the mounting bolts with sealer.
• The top coat of paint must be applied to externally
mounted parts before attaching to the roof. (See
Fig. 3.)

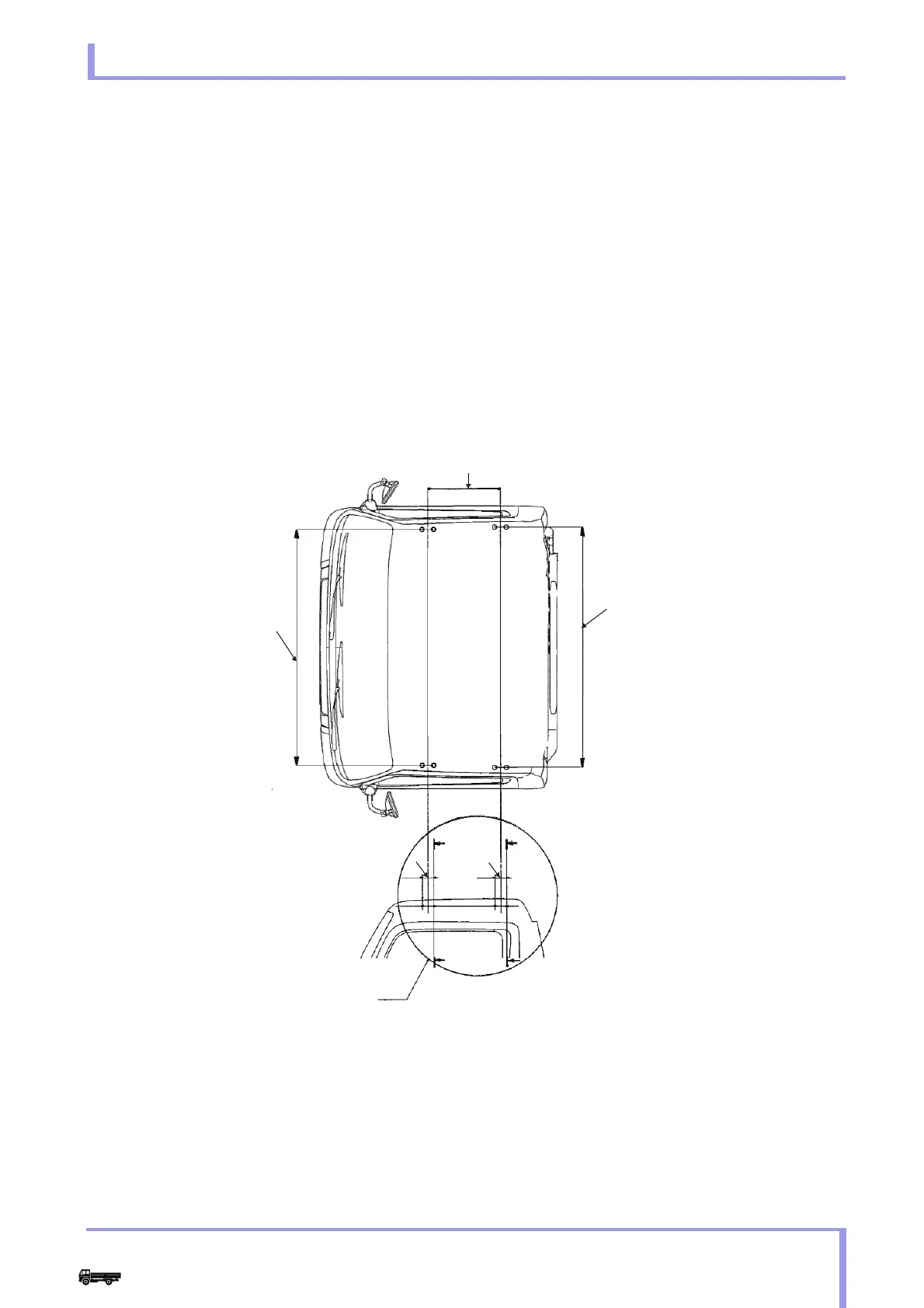

Fig. 1
4
1
2
6
7
5
2
1
3
3
1Section A-A
2Section B-B
380
4 Detail C
5 1664 (Wide cab)
1364 (Standard cab)
6 1694 (Wide cab)
1394 (Standard cab)
7 500
