FUTABA 14MZ - Line and Spline Curve Adjustments; Line and Spline Curve Configuration

Line and spline curve adjustment
Line curves or spline curves of up to 17 points
can be used. (Initial value: 9 points) The set points
can be freely increased, decreased, and offset.
Curves which are symmetrical to the left and right
of center can also be set.
[Setting modes]
*[Separate] mode: Normal setting
*[Combined] mode: Creates a left and right
symmetrical curve.
[Adjusting the rate of each point]
1. Use the move between points buttons [ << ]
or [ >> ] to select the point. (The pink point is
the selected point.)
2. Touch the Rate button.
3. Use the adjustment buttons to adjust the
rate.
[Point addition method]
1. After touching the point button, move the
stick, etc. to the point you want to add and
press the [Move] button. (An outlined point
appears on the graph.)
Or move the stick, etc. to the position you want
to add and press the [Move] button. (An
outlined point appears on the graph.)
2. Use the move buttons [ < ] or [ > ] to fine
adjust the position.
3. Touch the Rate button.
*A new point is created.
[Point deletion]
1. Use the move between points button [ << ]
or [ >> ] and select the point. (The pink point
is the selected point.)
2. Touch the [Delete] button. (The selected
point becomes an outlined point.)
3. Touch the move between point button [ << ]
or [ >> ].
*The point is deleted.
The curve can also be offset horizontally in the
vertical direction.
[Offsetting the curve horizontally in the vertical
direction]
1. Touch the Offset button.
2. Use the adjustment buttons to move the
curve horizontally up and down.
*Initial value: +0.0%

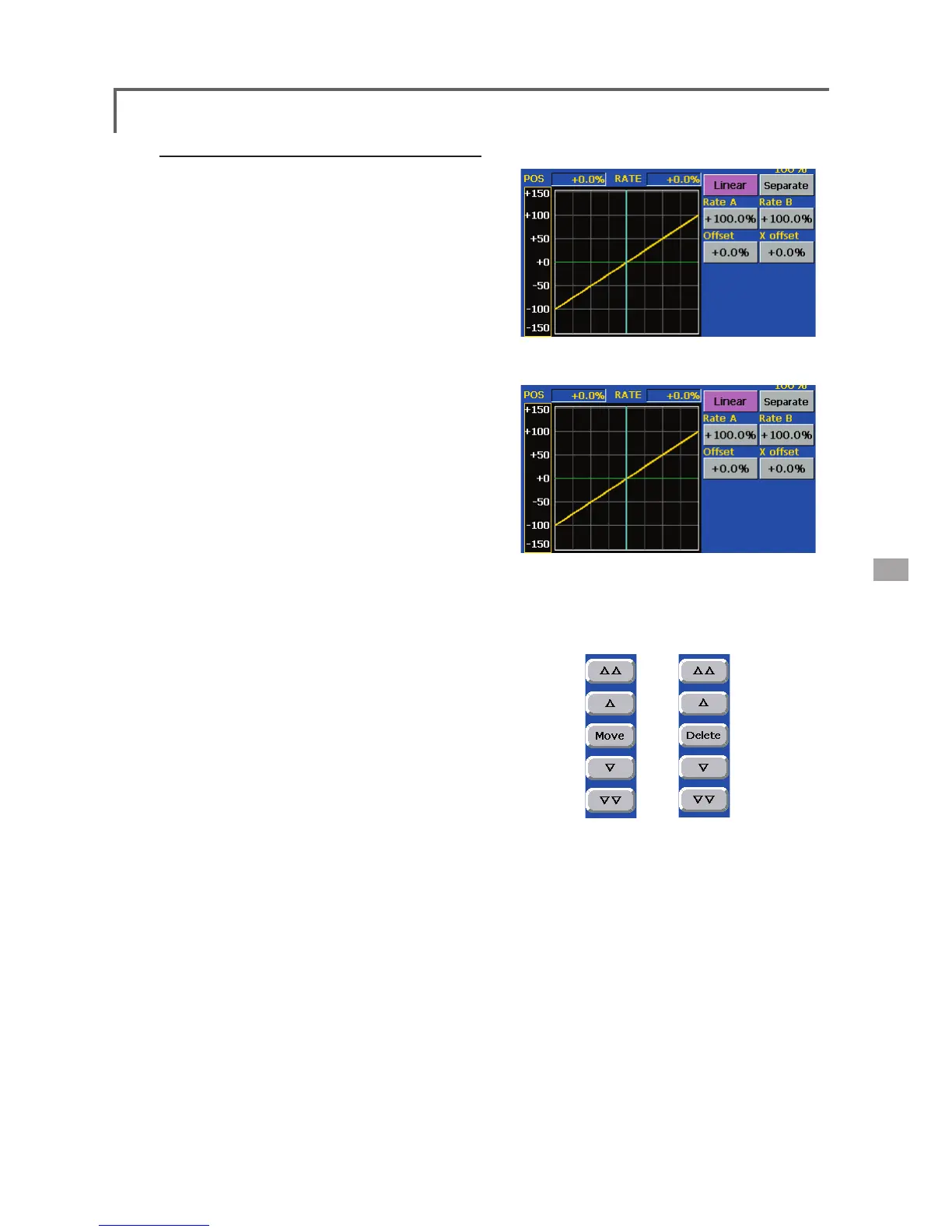

(Line curve)
(Spline curve)
(Rate adjustment buttons)
