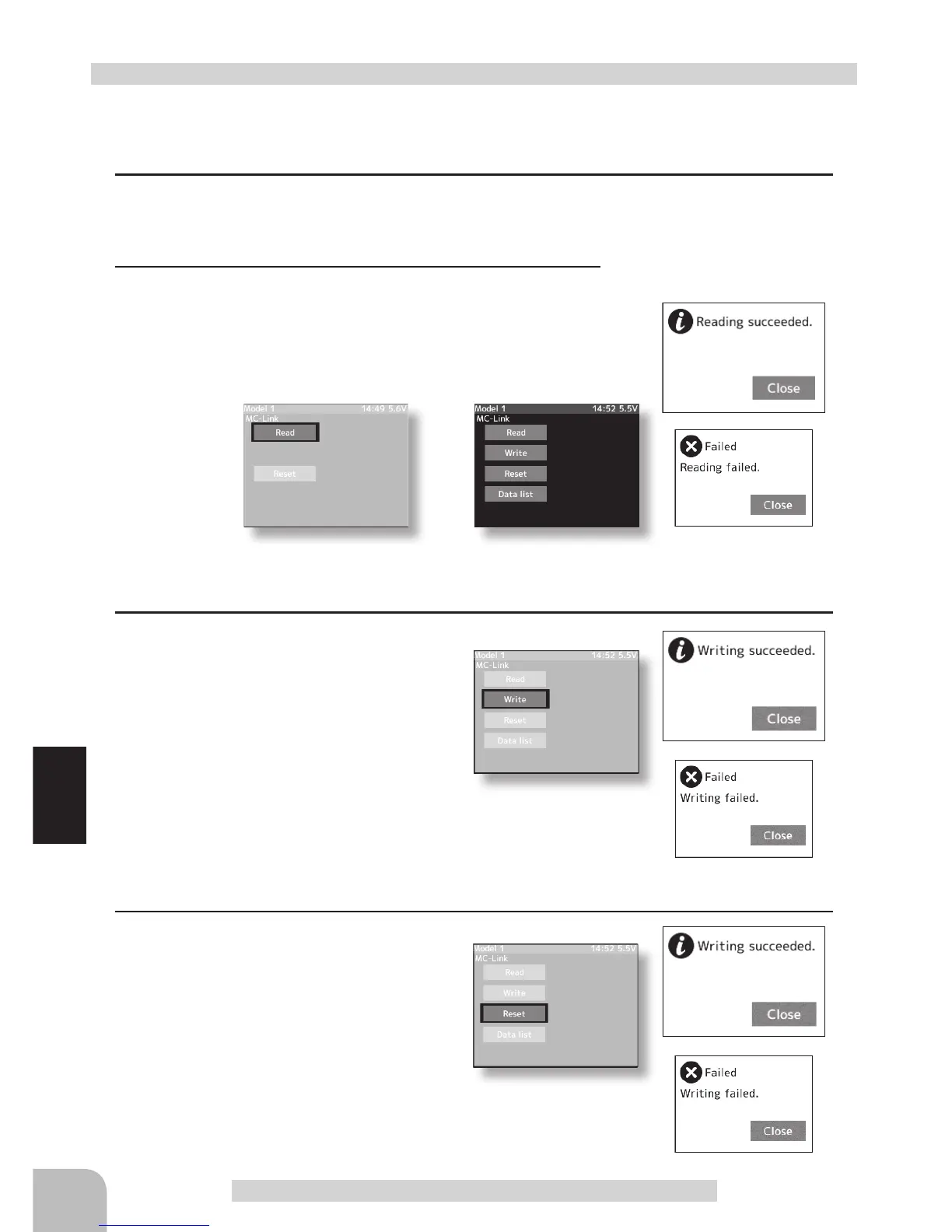

MC Link Function (ESC Link)
(Preparation)
-Connect the T4PX and ESC in accordance with the connection diagram shown on page 117.
-Connect the battery to ESC.
1
Turn power on the transmitter. "MC link" menu is displayed re-
ferring to the map of page117. Set the FET amp power switch
to the ON position.
Using the ESC Link function
2
(ESC read)
Execute this function to read the connected ESC type and
the data currently set at the ESC.
-Select the setting item "Read" by (JOG) button up or down
operation, and press the (JOG) button.
-"Reading succeeded"
is displayed on the screen
and the ESC type and currently set contents are read.
- If "Faild"
is displayed on the screen
, communication with the ESC is not being performed normally. Check the
T4PX and ESC connection and the battery connection to ESC and the ESC power switch and repeat "Read".
3
(Writing to ESC)
Execute this function to write the setting
data to ESC. See pages 120~125 for the
setting data contents.
-Select the setting item "Write" by (JOG)
button up or down operation, and press
the (JOG) button.
-"
Wrieing succeeded
" is displayed on the screen and the setting data is written to
ESC.
- If "Faild"
is displayed
on the screen, communication with the ESC is not being per-
formed normally. Check the T4PX and ESC connection and the battery connection to
ESC and the ESC power switch and repeat "Write".
- Different type ESC data cannot be written. If writing is attempted, "Faild"
is displayed
on the screen
.
4
(Initialization)
Write the factory set ESC setting data to
the connected ESC and T4PX.
-Select the setting item "Reset" by (JOG)
button up or down operation, and press
the (JOG) button.
-"
Wrieing succeeded
" is displayed on the screen
and the setting data is written to ESC.
-
If "Faild"
is displayed
on the screen, communication with the ESC is not being
performed normally. Check the T4PX and ESC connection and the battery con-
nection to ESC and the ESC power switch and repeat "Write".
Setup item selection
- Select by (JOG) button up or
down operation.
Reset execution button
- (JOG) buttons pressed.
To Next Page
