-Usable sensor options(As of June 2014)
*Temperature sensor (SBS-01T) Perfect for engine head, etc.
*Temperature sensor (SBS-01TE) Used by attaching to a motor, etc.
*RPM Sensor (SBS-01RM) Measures speed over the 0 to 999,900rpm range.
*Voltage Sensor (SBS-01V) Measures external power supply voltages up to 100V.
What is a slot?
Servosareclassiedbychannelandsensorsareclassiedby"slot".SincetheT4PXinitialslot
No. is set at each sensor in advance, they can be connected as is. There are 31 slots numbered
1 to 31.
*When sensors over the initial setting (use of multiple sensors of the same type) are used, they
must be registered at the sensor menu (p.138).
Telemetry
Telemetry System
With the telemetry system, the running status can be displayed at the transmitter and also
recorded as a data log by installing various sensor units to the chassis
(The S-FHSS and FASST systems do not have a telemetry function.)
-The sensor data can be checked at the transmitter by connecting the telemetry sensor sold
separately to the S.BUS2 connector of the R304SB receiver.
-To log this information, a start/stop switch is set by switch setting (p.99).
The log data recorded on a microSD card can be converted to CSV format by the telemetry
log converter released at our home page. When copying or moving the log le, always select
both .FLI and .FLD les.

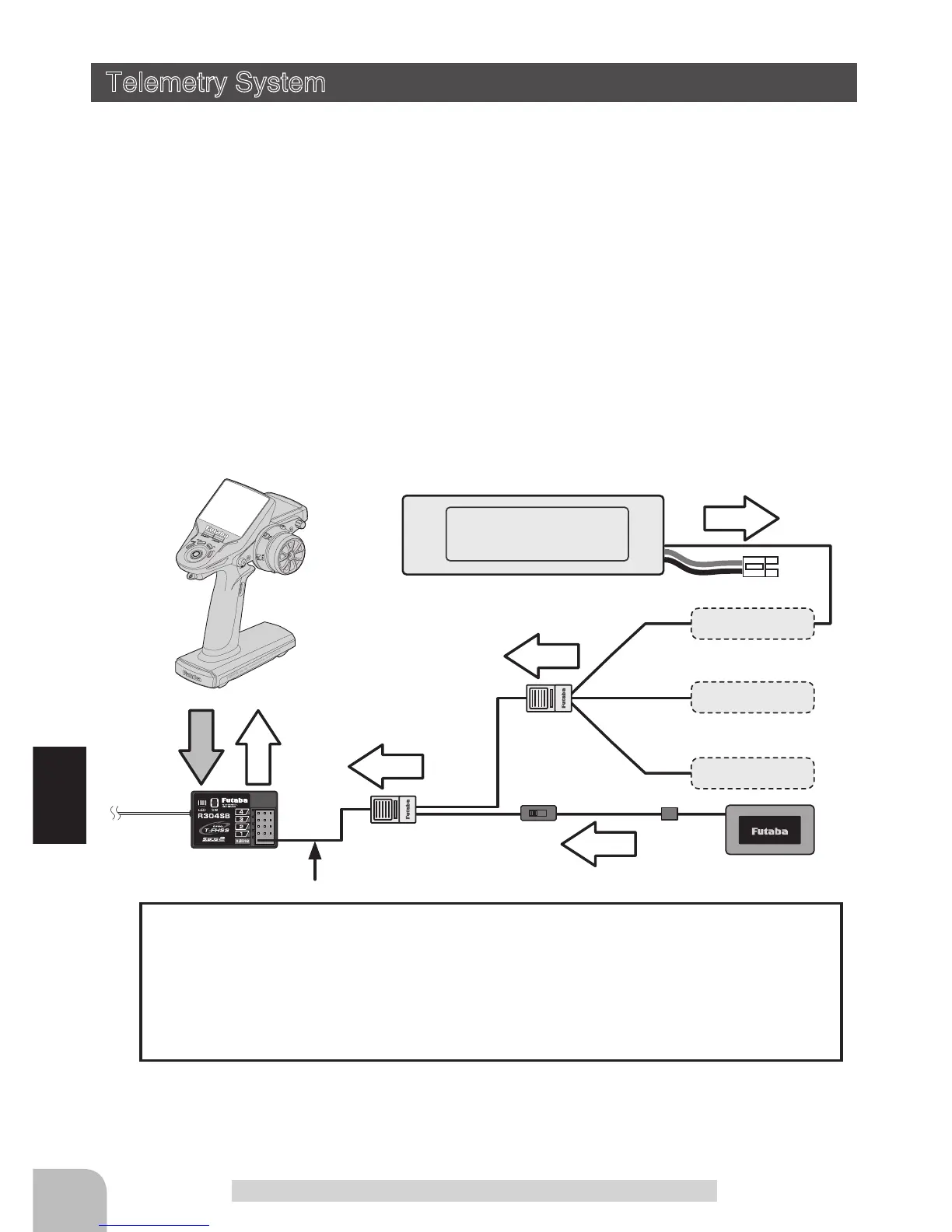

-The gure is an example of connection of a telemetry sensor. The data of up to the follow-
ing 3 types of sensor and the receiver power supply voltage can be transmitted by using the
3-way extension cord or double extension cord sold separately.
The receiver power supply can also be connected to the S.BUS2 connector or CH1~4 con-
nector. A receiver power supply voltage sensor is unnecessary.
