Start Function/ Engine Cut

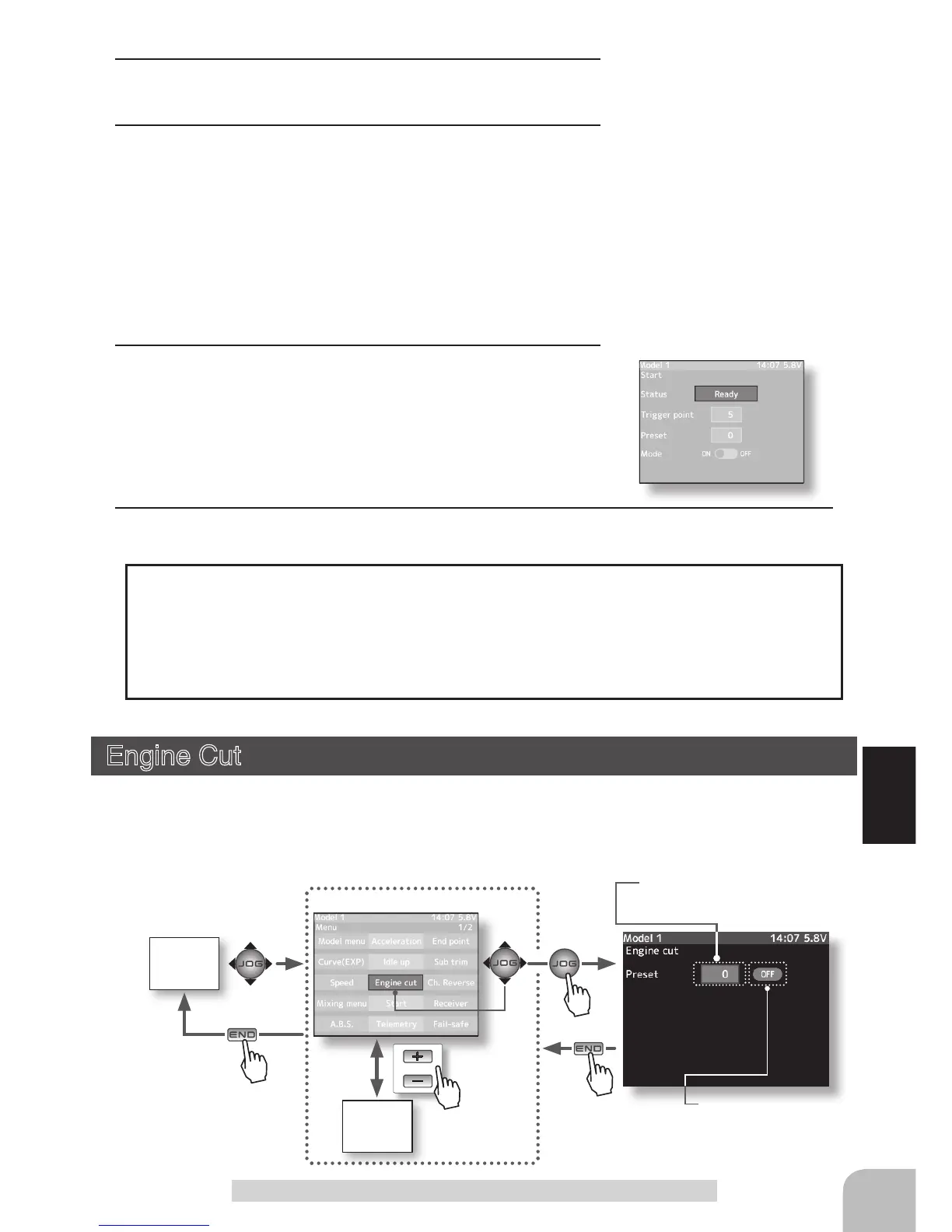

Engine Cut
(Throttle system)
When the switch is pressed, the throttle servo will move to the preset position without re-
gard to the throttle trigger position. This is convenient when used to cut the engine of boats,
etc. (The function select switch function. See page 99)
-If the throttle trigger is moved to the set position while "Ready" on the screen, the throt-
tle servo will move to the set position. The throttle operation wait state is reset when the
throttle trigger is returned.
-When using the Start function, always set the function by performing step 3 above each
time.
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Setup item selection
- Select by (JOG) button up or
down operation.
Preset position
0, F1 ~ F100
Initial value: 0
Trigger point
5 ~ 95
Initial value: 5
1
(Throttle position setup)
Set the throttle position by pressing the (+) or (-) button.
2
(Preset position setup)
Select the setting item "Preset" by (JOG) button up or down
operation, and use the (+) and (-) buttons to set the preset
position of the throttlle servo.
"0" :Neutral
"F0" ~ "F100" :Forward side
Setting Example: (When ESC used with an electric car)
Set the preset position to F75% at EPA100%.
3
("Ready" setting)
Select the setting item "Status" by (JOG) button up or down
operation, and press the (JOG) buttons simultaneously for
about 1 second. "Ready" on the screen and the system en-
ters the "Ready" state. Throttle trigger operation starts the
function.
4
When ending setting, return to the menu screen by pressing the (END) button
Engine cut on/off state.
Preset Rate
0 ~ 100
