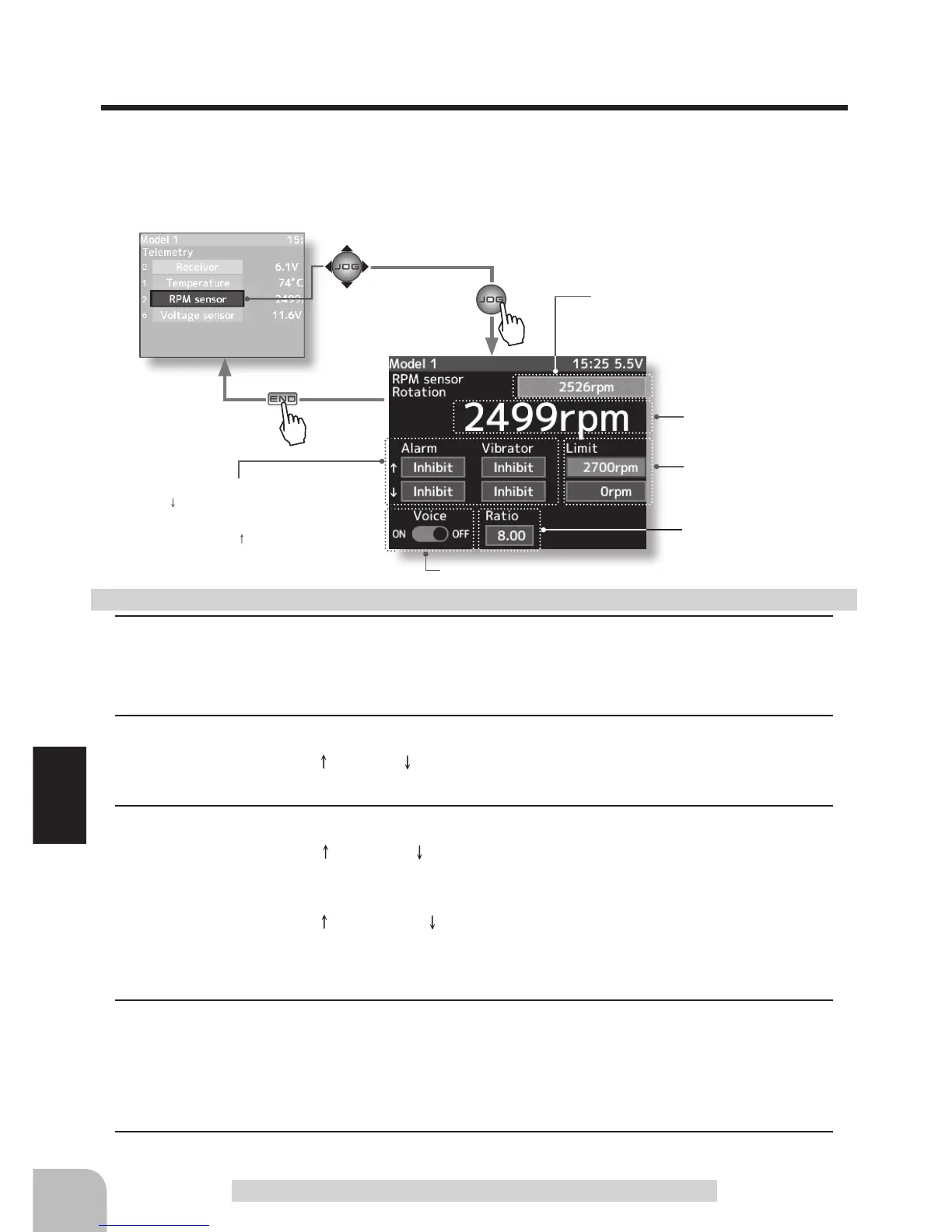

Telemetry
Current RPM
Gear ratio
Sets the limit speed
Upper limit/lower limit
(Speed that sound an alarm)
The Speech function (ON/OFF)
The maximum when powering ON are
shown.
Alarm and vibrator ON/OFF and type set-
ting (The arrow indicates that an alarm
is generated when the speed drops below
the set value and the arrow indicates that
an alarm is generated when the speed ex-
ceeds the set value.)
A RPM sensor must be installed in the model car.
Install and connect the sensor in accordance with
the sensor instruction manual.
1
(Gear ratio setup)
Select the setting item "Ratio" by (JOG) button up, down, left or right operation. Use the (+)
or (-) button to adjust the lgear ratio.
2
(Limit adjustment)
Select the setting item "
Limit" or "
Limit
"
by (JOG) button up, down, left or right operation.
Use the (+) or (-) button to adjust the limit voltage.
3
(Alarm and vibrator function setup)
Select the setting item "
Alarm" or "
Alarm" by (JOG) button up, down, left or right opera-
tion. Set the function to the active state by pressing the (+) or (-) button.
"Inhibit" :No audible alarm / "Buzzer" :Audible alarm/ "Voice" :Voice alarm
Select the setting item "
Vibrator" or "
Vibrator" by (JOG) button up, down, left or right op-
eration. Press the (+) or (-) button and select the type.
"Inhibit" :No active vibration/ "Type1" :Continuous vibration/ "Type2" :Intermittent vibration for a long time/
"Tyoe3" :Intermittent vibration for a short time
4
(Speech function setup)
Select the setting item "Voice" by (JOG) button up,
down, left or right operation. Set the function to the ac-
tive state by pressing the (+) or (-) button.
"OFF" :No voice guide/ "ON" :Information loaded by voice
5
When ending setting, return to the Telemetry menu screen by pressing the (END) button.
Alarm and Vibrator function setup
Telemetry :RPM
Speed information from an SBS-01RM (telemetry rotation sensor) sold separately is dis-
played and set at this screen. The speed of the engine, motor, etc. of the chassis while run-
ning can be viewed at the transmitter. When the speed becomes higher (lower) than the set
speed, it can be announced by an alarm and vibration.
