Telemetry
Telemetry :The Drive Battery
With an external power supply, one voltage of the batteries (drive battery, servo power sup-
ply battery, etc.) mounted separately in the chassis can be displayed at the transmitter. The
receiver S.BUS2 connector is used to connect the SBS-01Vsensor and the battery.

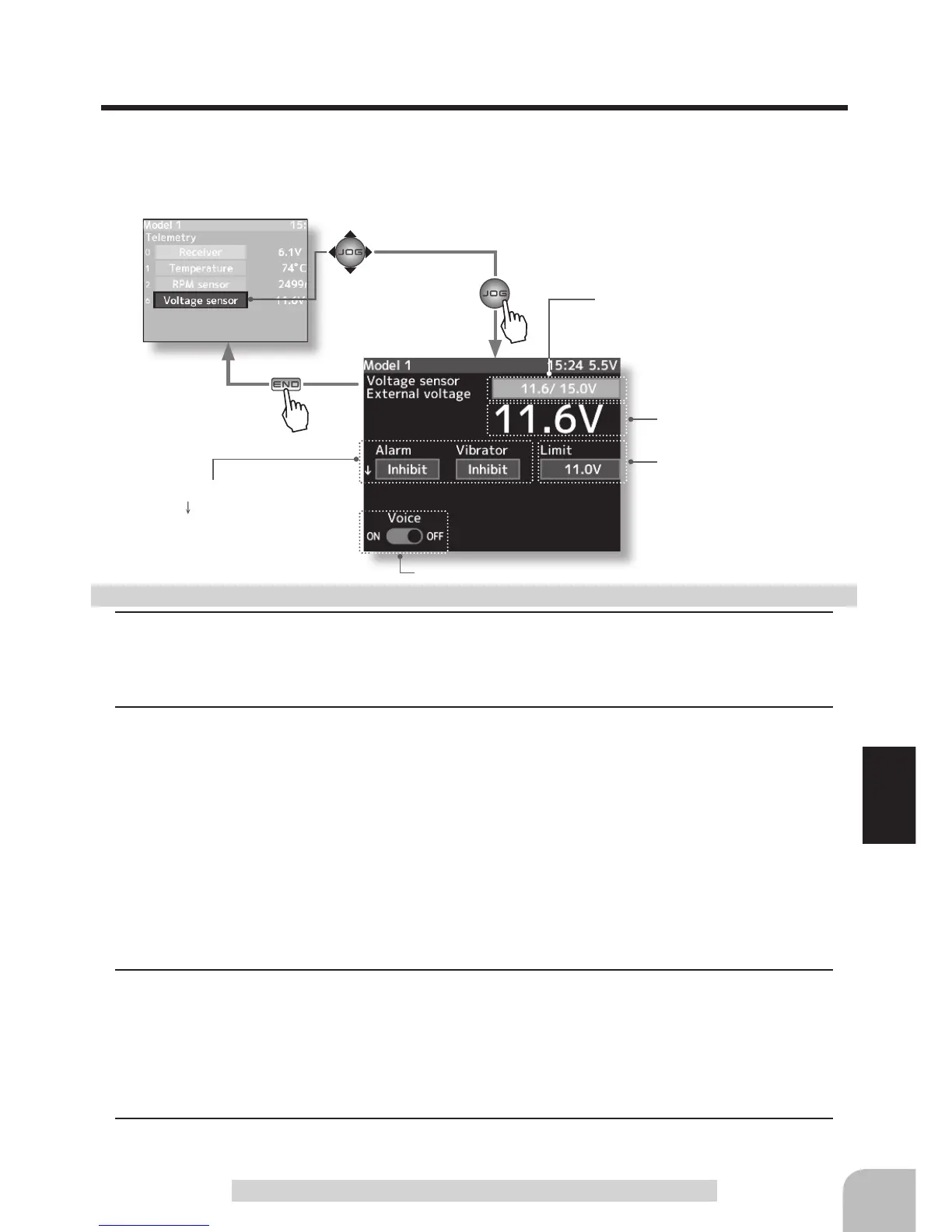

Sets the limiter voltage
(Voltage that sounds an alarm)
Current drive battery voltage
The Speech function (ON/OFF)
The minimum and maximum the
when powering ON are shown.
Alarm/vibrator ON/OFF and type set-
ting (The arrow indicates that an
alarm is generated when the power
supply voltage drops below the set
value.)
A drive bsttery sensor must be installed in the mod-
el car.
Install and connect the sensor in accordance with
the sensor instruction manual.
1
(Limit adjustment)
Select the setting item "Limit" by (JOG) button up, down, left or right operation.
Use the (+) or (-) button to adjust the limit voltage.
2
(Alarm and vibrator function setup)
Select the setting item "Alarm" by (JOG) button up, down, left or right operation. Set the
function to the active state by pressing the (+) or (-) button.
"Inhibit" :No audible alarm
"Buzzer" :Audible alarm
"Voice" :Voice alarm
Select the setting item "Vibrator" by (JOG) button up, down, left or right operation. Press the
(+) or (-) button and select the type.
"Inhibit" :No active vibration
"Type1" :Continuous vibration
"Type2" :Intermittent vibration for a long time
"Tyoe3" :Intermittent vibration for a short time
3
(Speech function setup)
Select the setting item "Voice" by (JOG) button up,
down, left or right operation. Set the function to the ac-
tive state by pressing the (+) or (-) button.
"OFF" :No voice guide
"ON" :Information loaded by voice
4
When ending setting, return to the Telemetry menu screen by pressing the (END) button.
Alarm and Vibrator function setup
