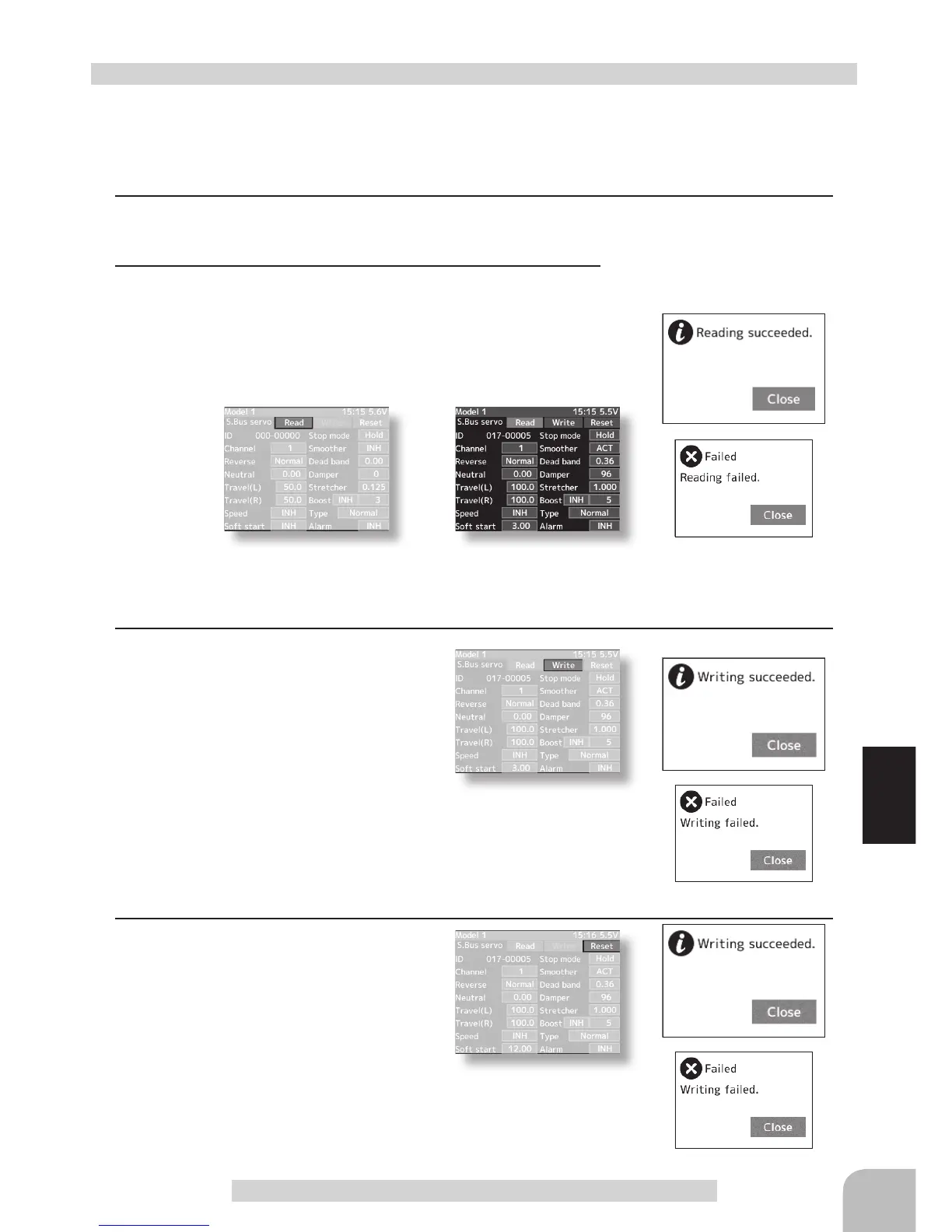

S.Bus servo
(Preparation)
- Connect the T4PX and S.BUS or S.BUS2 servo in accordance with the connection diagram
shown on page 126.
- Connect the battery to a non-high voltage(HV) support S.BUS/S.BUS2 servo.
1
Turn power on the transmitter. "S.Bus servo" menu is dis-
played referring to the map of page126.
Using the S.Bus servo function
2
(S.BUS/S.BUS2 servo read)
Execute this function to read the connected servo type and
the data currently set at the servo.
-Select the setting item "Read" by (JOG) button up or down
operation, and press the (JOG) button.
-"Reading succeeded"
is displayed on the screen
and the servo’s ID cord and currently set contents are read.
- If "Faild"
is displayed on the screen
, communication with the servo is not being performed normally.
Check the T4PX and servo connection to servo and repeat "Read". (Connect the battery to a non-high voltage(HV)
support servo.)
3
(Writing to S.BUS/S.BUS2)
Execute this function to write the setting
data to servo. See pages 128~129 for
the setting data contents.
-Select the setting item "Write" by (JOG)
button up or down operation, and press
the (JOG) button.
-"
Wrieing succeeded
" is displayed on the screen and the setting data is written to
servo.
- If "Faild"
is displayed
on the screen, communication with the servo is not being per-
formed normally. Check the T4PX and servo connection to servo and repeat "Write".
(Connect the battery to a non-high voltage(HV) support servo.)
4
(Initialization)
Write the factory set servo setting data
to the connected servo and T4PX.
-Select the setting item "Reset" by (JOG)
button up or down operation, and press
the (JOG) button.
-"
Wrieing succeeded
" is displayed on the screen
and the setting data is written to servo.
-
If "Faild"
is displayed
on the screen, communication with the servo is not being
performed normally. Check the T4PX and servo connection to servo and repeat
"Write". (Connect the battery to a non-high voltage(HV) support servo.)
Setup item selection
- Select by (JOG) button up or
down operation.
Reset execution button
- (JOG) buttons pressed.
