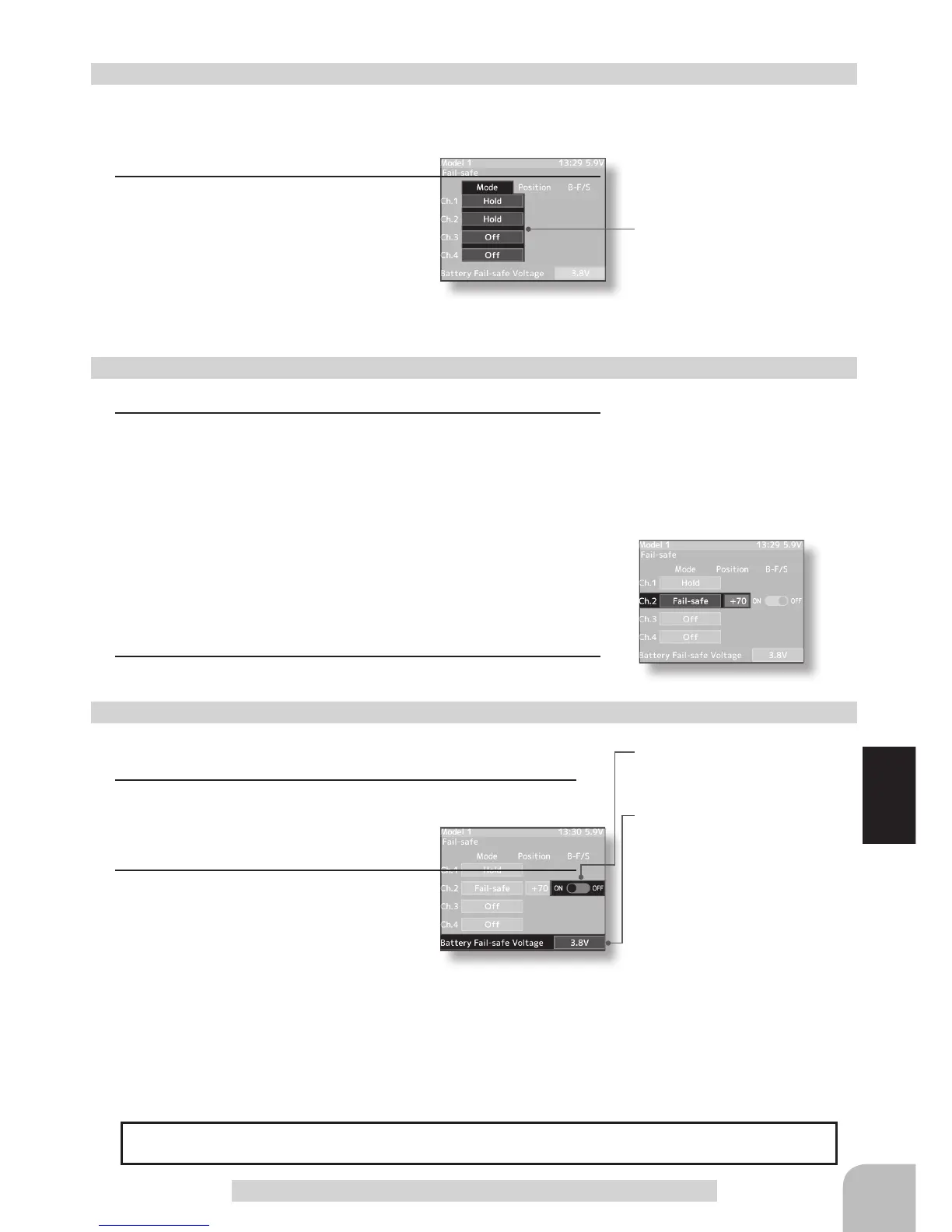

Fail Safe/Battery Fail Safe Function
Battery fail safe function ON/OFF & BATT-F/S voltage set-
ting
1
(Battery fail safe function ON/OFF)
Select "OFF" or "ON" of "B-F/S" by (JOG) button opera-
tion. Set B-F/S function ON/OFF by (+) or (-) button.
2
(Battery fail safe voltage setting)
Select battery fail safe **V at the bot-
tom of the screen by (JOG) button op-
eration. Set the voltage that turns on
the B-F/S function by (+) or (-) button.
(Since R604 Series receivers are not for high voltage
use, the use of LiFe and Li-Po batteries is prohibited.
Therefore, the 4.8v and 5.6v settings are prohibited.)
BATT-F/S Voltage
T-FHSS
3.5,3.8,4.0,4.2,4.4,4.6,4.8,5.0,
5.3,5.6,5.9,6.2,6.5,6.8,7.1,7.4V
FASST
3.5,3.8,4.4,4.75
5.5V
(
Only R614
)
S-FHSS
Only 3.8V
Example:
Ni-MH /Ni-Cd 4cell---3.8V
Ni-MH /Ni-Cd 6cell---4.4V
LiFe 2cell---4.8V
Li-Po 2cell---5.6V
When the receiver power supply of an electric car uses a common power supply from an ESC, we recommend that this function be set to
OFF because the voltage supplied to the receiver may drop momentarily and the battery fail safe function may be activated.
Fail safe mode selection
(Preparation)
- Select the channel to be set by (JOG) button operation.
1
(Mode selection)
Select the mode by (+) or (-) button.
Fail safe function setup
1
(Servo position setup)
When the fail safe function operates, select the channel’s
"Position" to be set by (JOG) button operation.
The steering wheel, the throttle trigger or 3rd, 4th channels
dial remains in the desired operation position. When the
(JOG) button are pressed simultaneously for about 1 sec-
ond, the servo position is displayed and you can conrm that
the function was set.
(Each channel can be set similarly.)
2
When ending setting, return to the HOME screen by press-
(Each channel can be individually set.)
To Next Page
