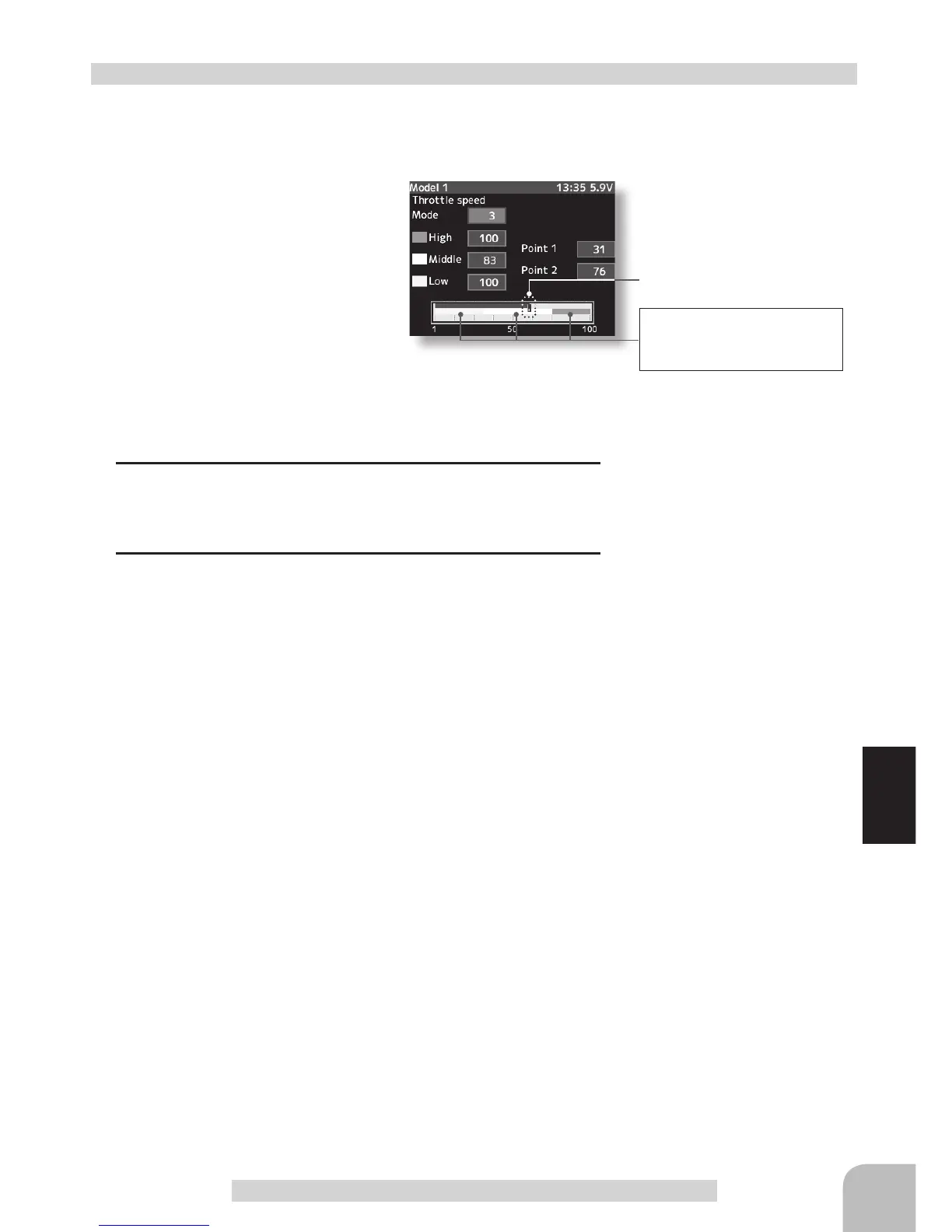

Setting item
Mode :Speed type selection
High :High side range speed
adjustment
Middle :Medium speed range
speed adjustment
Low :Low side range speed
adjustment
Point1 :Low and medium speed
switching point
Setup item selection
- Select by (JOG) button up or down operation.
Adjustment buttons
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Initial value
Low, Middle, High:"100"
Point1 :30
Point2 :60
Speed type Select button
- Select with the (+) or (-) but-
tons.
The Low and High ranges are
linked with the Point1,2 set points
and displayed.
Throttle trigger position
Adjustment range
High :1~100
Middle :1~100
Low :1~100
At 100%, there is no delay.
Point1 :1~100
Point2 :1~100
65
Throttle Speed
Adjustment method for 3 Speed
(Preparation)
- Select the setting item "Mode" by (JOG) button up or down op-
eration. Press the (+) or (-) button and select "3".
1
("Low", "Middle", and "High" delay adjustment)
Select the setting item "Low", "Middle", or "High" by (JOG)
button up or down operation.
2
(Speed switching point adjustment)
When you want to change the "Low", "Middle", and "High"
switching point, select setting item "Point1" or "Point2" by
(JOG) button up or down operation.
To Next Page
