B rake return
(Amount of
brake return)
B rake return
Servo travel
* Displays ON/OFF of the con-
dition that ABS is working by
throttle trigger operation.
The amount of brake return var-
ies depending on the curve set-
ting of the brake etc.
Adjustment buttons
- Adjust with the [+] and [-] but-
tons.
- Return to the initial value by
tapping the [reset] buttons.
- Delay
Sets the delay from brake operation to ABS operation. When set to 0%, the ABS func-
tion is activated without any delay. At 50%, the ABS function is activated after a delay
RIDSSUR[LPDWHO\VHFRQGVDQGDWWKH$%6IXQFWLRQLVDFWLYDWHGDIWHUDGHOD\
RIDSSUR[LPDWHO\VHFRQGV
- Cycle speed
The lower this setting, the faster the pulse speed. Set value, the quicker the pulse speed.
- Duty ratio
Sets the proportion of the time the brakes are applied, and the time the brakes are re-
leased by pulse operation. The ratio can be set to +4 ~ 0 ~ -4 in 9 steps.
- Trigger point
Sets the trigger point at which the ABS function begins to operate at brake operation.
:KHQWKHWULJJHUUDWLR/LQNDJHPHQXĺ7KURWWOHPRGHZDVVHWWREUDNHRS-
eration stops, and the servo does not operate even if the ABS function is set.
When the trigger ratio was set to 100:0
1
(Function ON/OFF)
Tap "Brake" (ON) or (OFF) to select ON/OFF.
"OFF" :ABS function OFF
"ON" :ABS function ON
When using ABS function ON/OFF by
switch, use the switch select function (Link-
age menu) to set the switch to be used.

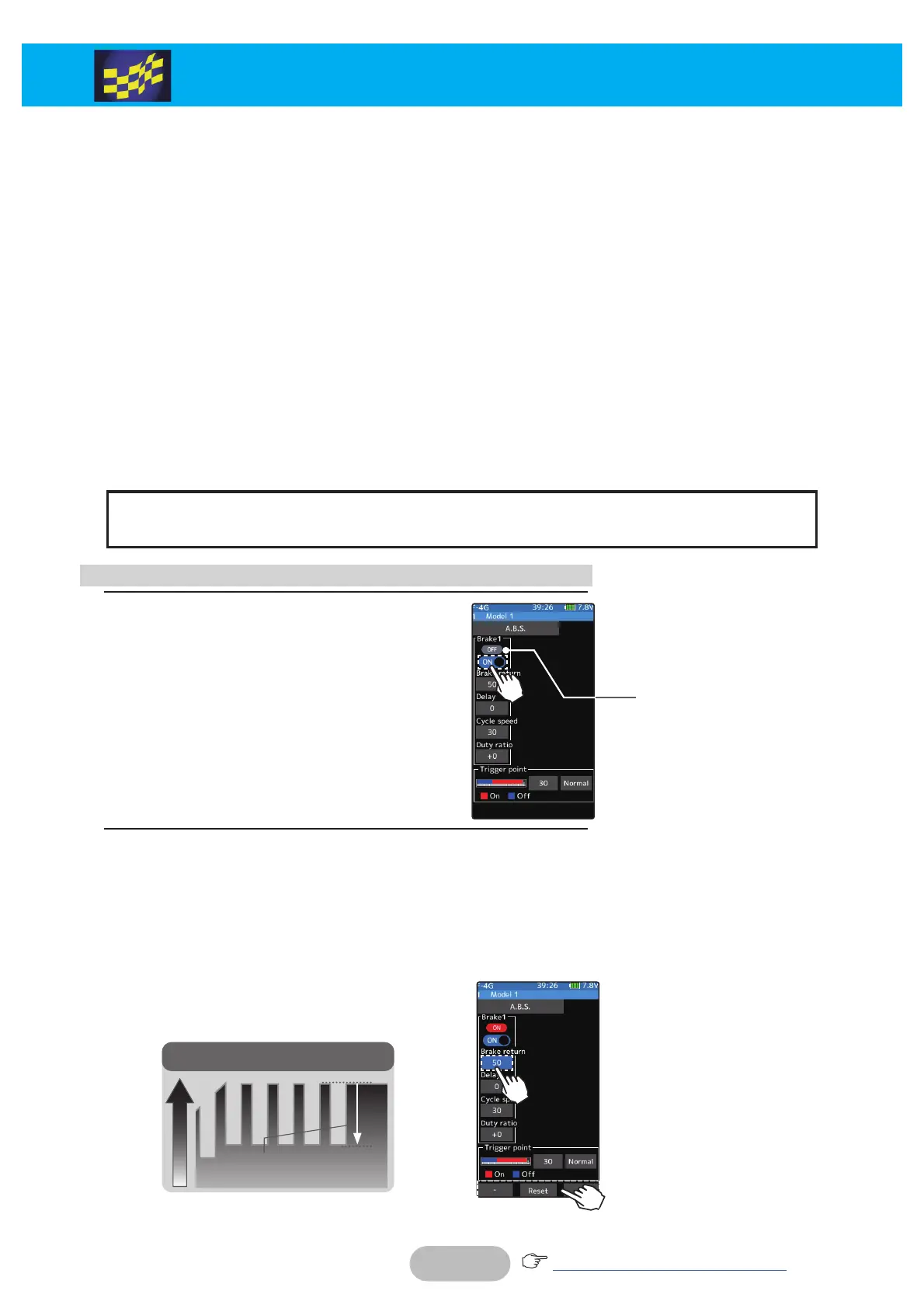

A.B.S. function adjustment
2
("Brake return" amount adjustment)
Tap the value button of the [Brake return]. Value input buttons
appear on the screen. Use the [+] and [-] buttons to adjust
the return amount.
"0": No return
"50": Return to the 50% position of the brake operation amount
"100": Return to the neutral position.
Return amount
0~50~100
Initial value: 50
