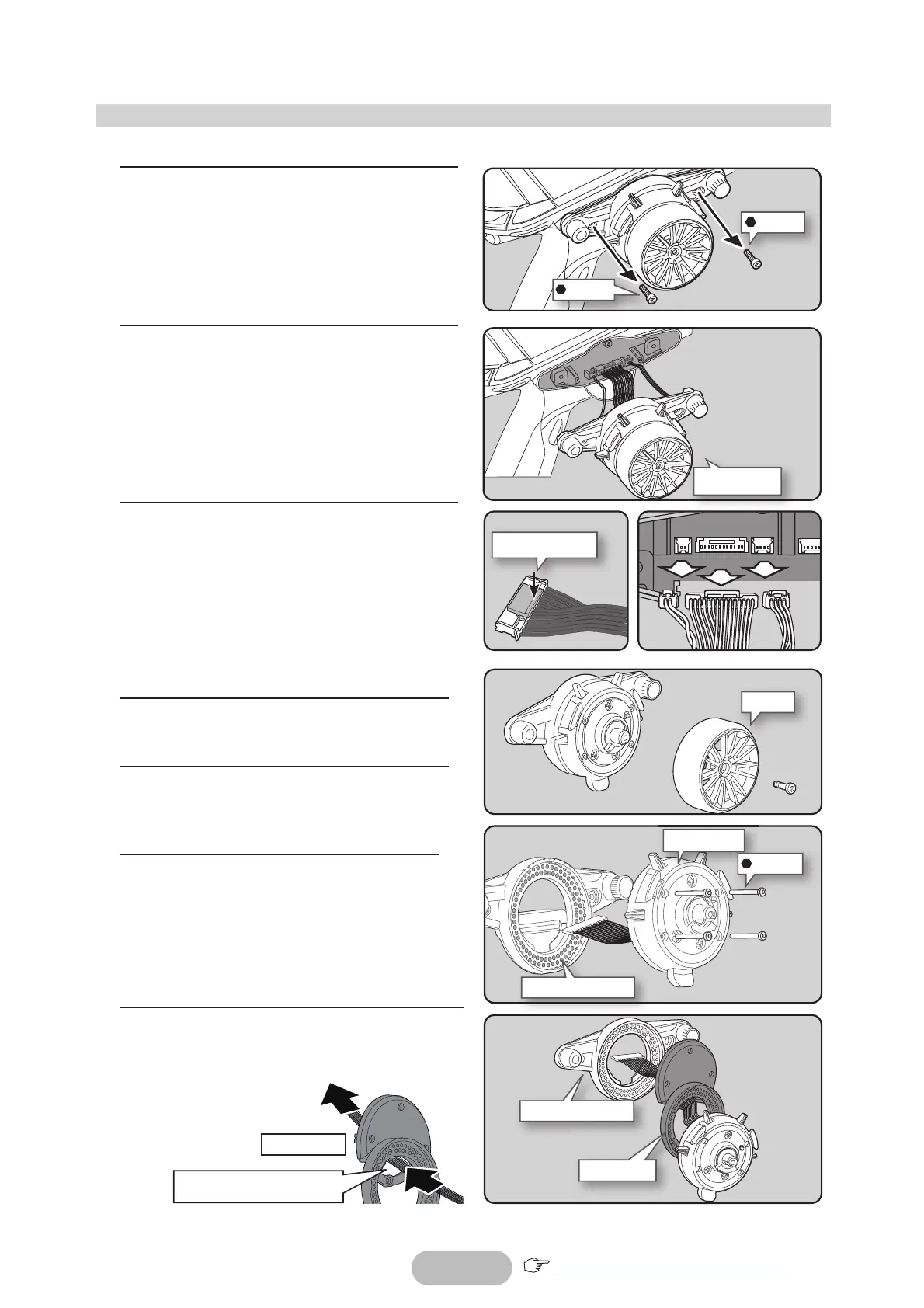

FUTABA T10PX - Installing the Accessory APA Steering Wheel Offset Adapter

24
Returntotableofcontents
M3×12
M2×19
Steering housing
4
Hold the wheel and remove the screw.
(Using a hex wrench.)
Steering unit
Press to unlock
Wheel unit
1
Remove the 2 steering unit mounting
screws (M3x12 screw).
(Using a hex wrench.)
Remove the 2 mounting screws com-
pletely from the transmitter body.
- Obtain hex wrench./ Remove the battery.
2
Gently remove the steering unit, without
pulling excessively on the wiring.
- Remove the steering unit slowly so that
the internal wiring is not pulled unrea-
sonably.
3
Remove the 3 connectors from the PC
board.
Press the upper side of the connector to
release the lock and remove it from the
PC board.
(The 3 connectors each have the same
lock type although they are different in
size.)
6
Using a hex wrench, remove the 4
screws (M2×19) mounting the wheel
unit. Remove the wheel unit from the
steering housing.
Installing the accessory APA steering wheel offset adapter
Wheel
7
Pass the wiring from the wheel unit
through the hole in the APA parts and
steering housing as shown in the figure.
APA parts
Steering housing
M3×12
Wiring goes through here
APA parts
With Wheel adapter
5
Pull off the wheel and wheel adapter.
- Do not overtighten these four screws.
