FUTABA T10PX - Page 145

145
Returntotableofcontents
*Shows the ON/OFF state
Adjustment buttons
- Adjust with the [+] and [-] but-
tons.
- Return to the initial value by
tapping the [reset] buttons.
Cycle speed amount
1~100
Initial value: 50
Setting
- Tap operation mode.
Setting
- Tap control mode.
2
(Channel setup)
The channel list screen used for the CPS channel is displayed. Tap the auxiliary channel
that connected the CPS-1 unit channel.
- When all channels are in use, a screen saying "No assignable channel" is displayed, please turn off other mixing
and make an unused channel. You can check the mixing used on the channel setting screen (Linkage menu).
3
(Control system setup)

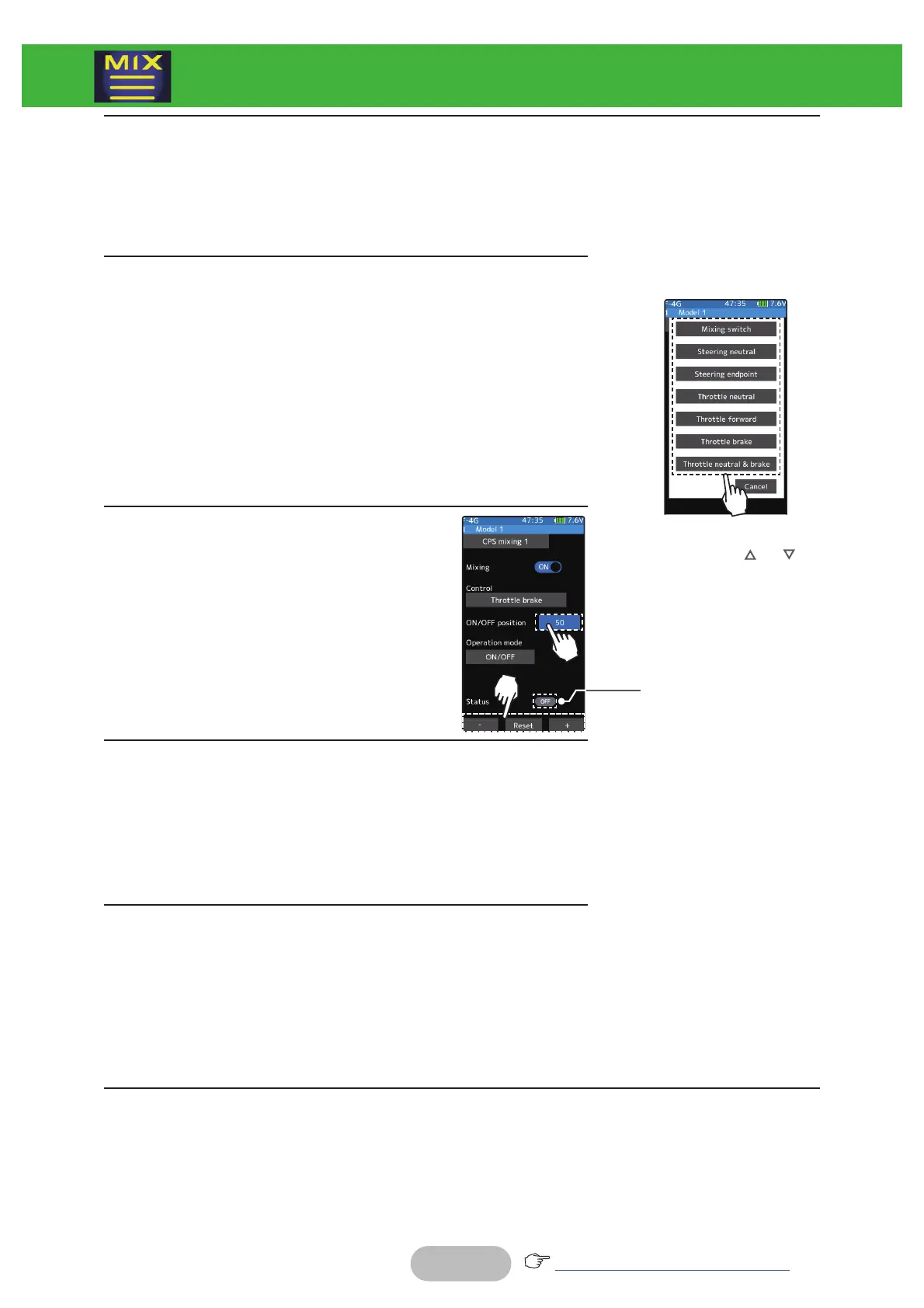

Tap the [Control]. The mode list appears on the CPS
mixing menu screen, and tap from the list and select the con-
trol mode. To cancel, tap [Cancel].
"Mixing Switch": ON/OFF by switch set at the CPS mixing
"Steering neutral": ON at steering neutral
"Steering endpoint": ON at both sides of steering
"Throttle neutral": ON at throttle neutral
"Throttle forward": ON at throttle forward side
"Throttle brake": ON at throttle back (brake) side
"Throttle neutral & brake": ON at throttle neutral and back (brake) sides
4
(ON/OFF switching position selection)
Tap the value button of the [ON/OFF point].
Value input buttons appear on the screen.
Use the [+] and [-] buttons to adjust the
operation point. Since the ON/OFF state is
displayed at the right side of the “Status”,
the setting can be confirmed while operat-
ing the function to be controlled (for exam-
ple, throttle).
5
(Operation mode setup)
Tap the [Operation mode]. The mode list appears on the CPS
mixing menu screen, and tap from the list and select the Op-
eration mode. To cancel, tap [Cancel].
"ON/OFF": Normal ON/OFF type
"Flash": Flashing display
6
(Flashing cycle setting)
When "Operation mode" is set to "Flash", the "Cycle speed"
can be set to the preferred setting. Tap the value button of
the [Cycle speed]. Value input buttons appear on the screen.
Use the [+] and [-] buttons to adjust the cycle speed amount.
Adjustment buttons
- Adjust with the
and buttons.
- Return to the initial value by
tapping the [reset] buttons.
ON/OFF position
5~95
Initial value: 50
7
When finished, return to the Mixing menu screen by pressing the HOME button twice.
MIXINGMENU
