When being used while racing, the ESC inhibits the lead angle function, set
"
Lead
angle use
"
to
"
INH
"
. The
"
Lead angle use
"
setting has priority over
"
Turbo mode
"
.
If
"
Lead angle use
"
is set to
"
INH
"
WKHOHDGDQJOHVHWWLQJIXQFWLRQFDQEHWXUQHGR൵
even if
"
Turbo mode
"
is set to
"
Turbo 1
"
or
"
Turbo 2
"
.
The MC940,960CR shows that the lead angle setting function is OFF (
"
0
"
timing)
by blinking the LED.

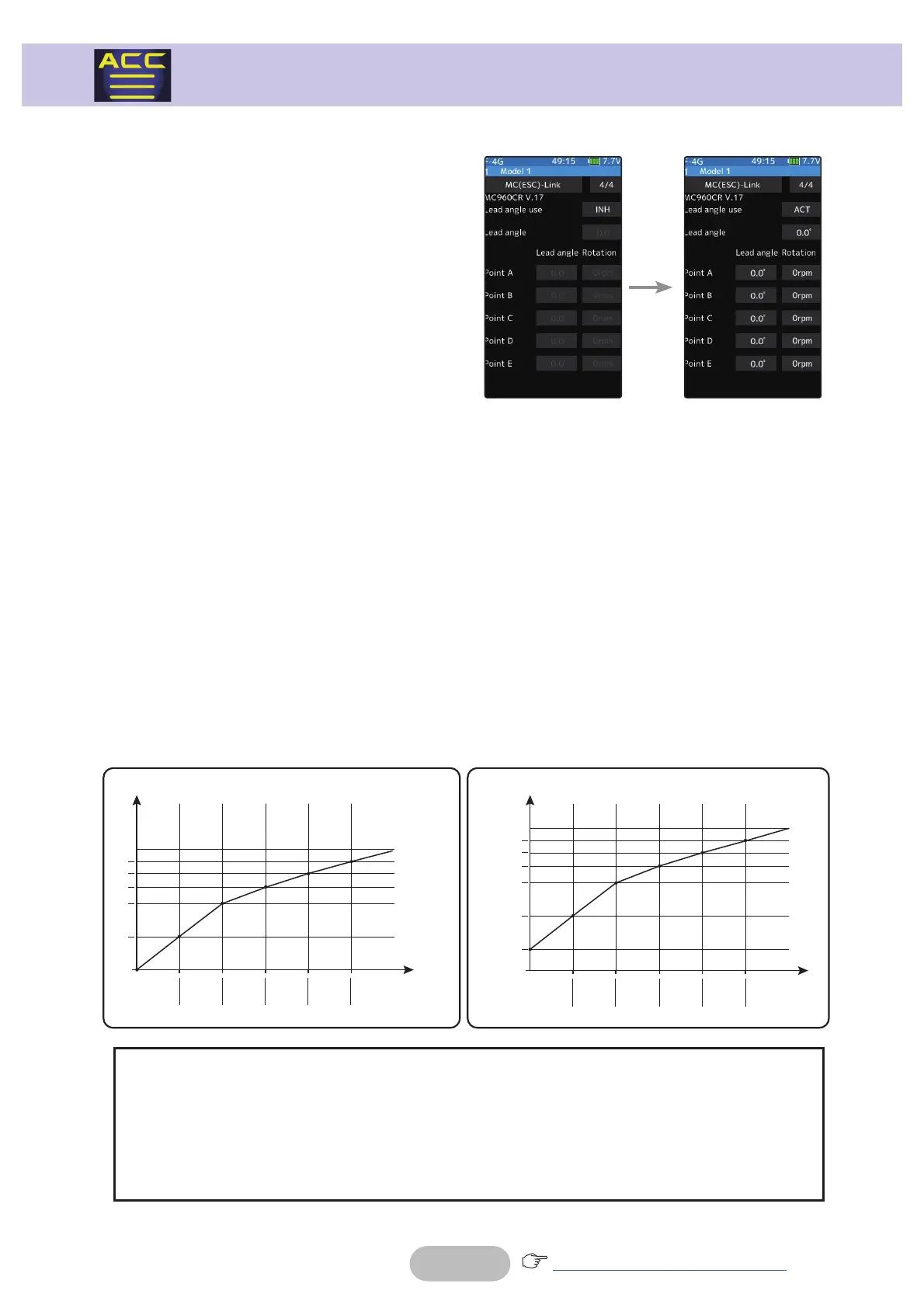

Turn on "Lead angle use"
Lead angle use
MC940,960CR :ACT/INH
Same as Link software Lead Angle Use.
This function is effective when Turbo Mode
is Turbo1 or Turbo 2 and sets whether or not
the lead angle is used. This setting has prior-
ity over the Turbo Mode setting. When being
used while racing, the ESC inhibits the lead
angle function, set this function to INH.
"INH": Lead angle function not used.
"ACT": Lead angle used
Point A,B,C,D,E Lead angle
MC940,960CR :0deg~59deg
Same as Link software Boost Angle.
Point A,B,C,D,E Rotation
MC940,960CR :0rpm~120,000rpm
Same as Link software Boost Angle rpm.
When "Lead Angle Use" is turned on the lead angle versus motor speed of the 5 points A to
E can be set. The lead angle can be set up to 59 degrees in 1-degree increments.
The "Lead angle" and "Point A, B, C, D, E Lead angle" relationship is shown on the graphs
below. Graph [1] shows the relationship when the same value is set at "Points A, B, C, D, E
Lead angle" of [1] and [2] and the "Lead angle" was set to "0" and graph [2] shows the rela-
tionship when a value other than "0" was set at "Lead angle". As shown in the graphs, [2] is
added to the "Points A, B, C, D, E Lead angle" set lead angle and [1] is added to the "Lead
angle" set lead angle. For example, if "3" is set at Point A and "Lead angle" of [2] is set to "2,
the actual Point A becomes 3+2=5 (deg). Since "Lead angle" of [A] is "0", the actual Point A
also becomes 3+0=3 (deg).
A B C D E
A
B
C
D
E
A B C D E
A
基準進角
B
C
D
E
1 (Lead angle ="0") Lead Angle(deg) 2 (Lead angle >"0") Lead Angle(deg)
rpm rpm
