Rear unit
Rear unit fixing screw
Steering unit bottom cover
9

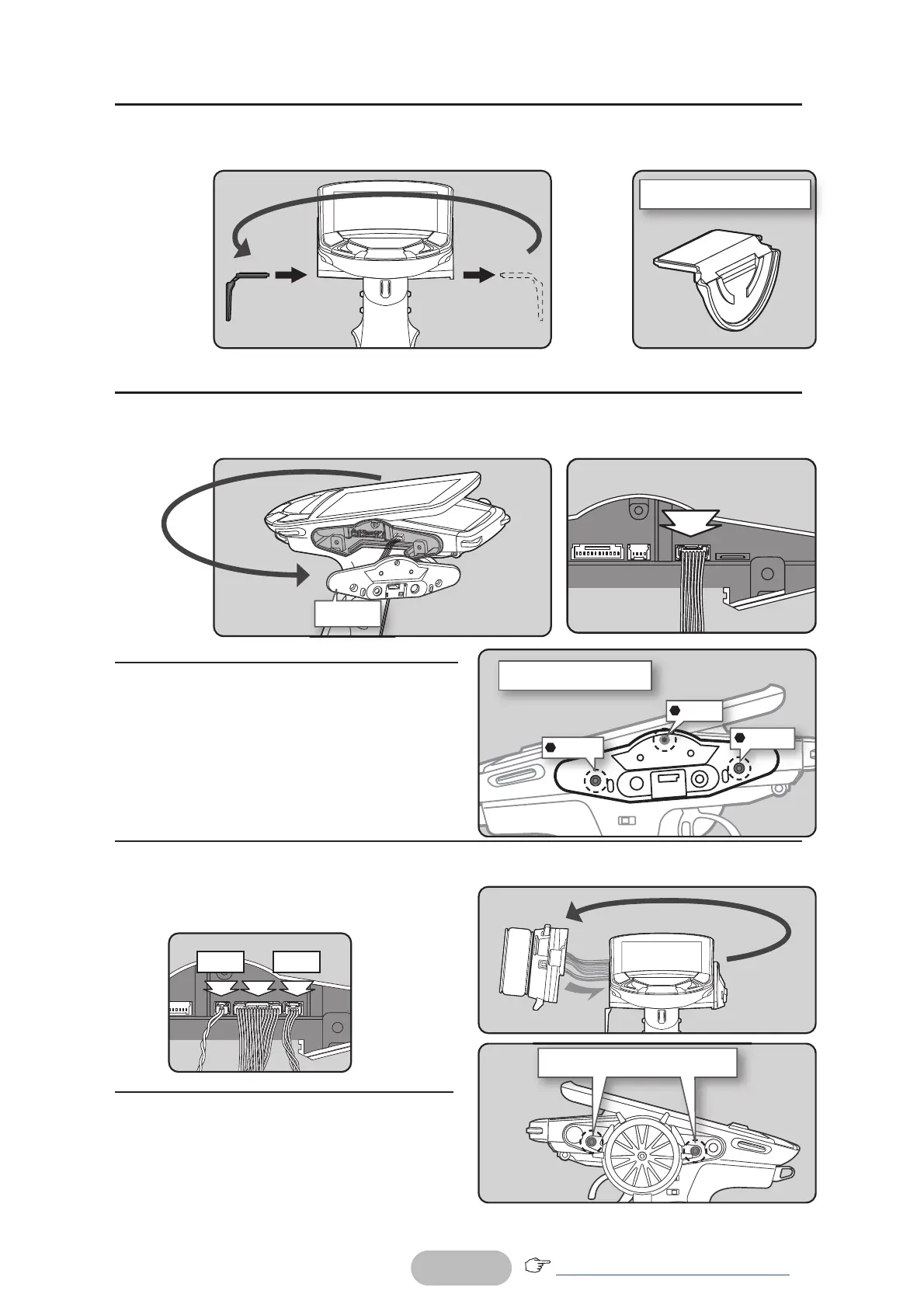

Install the steering unit to the connector on the opposite side of the transmitter body.
• Install slowly so that the wiring is not pinched.
M3×12
M3×12
M2×6
Steering unit mounting screws
7
Install the rear unit to the connector on the opposite side of the transmitter body.
• Install slowly so that the wiring is not pinched.
6
Replace the steering unit bottom cover.
• Slide it outward and pull it out.
10
Install the steering unit to the trans-
mitter using the two screws (M3x12
screw) supplied.
(Using a hex wrench.)
8
Fit the rear unit to the transmitter body
with two M3x12 screws and one M2x6
screw.
2 pin 4 pin
