GDS Adapter Cable
The GDS Power Adapter Cable is an optional cable that powers the printer from a standard 1 x 4 Molex
mini-fit GDS power port.

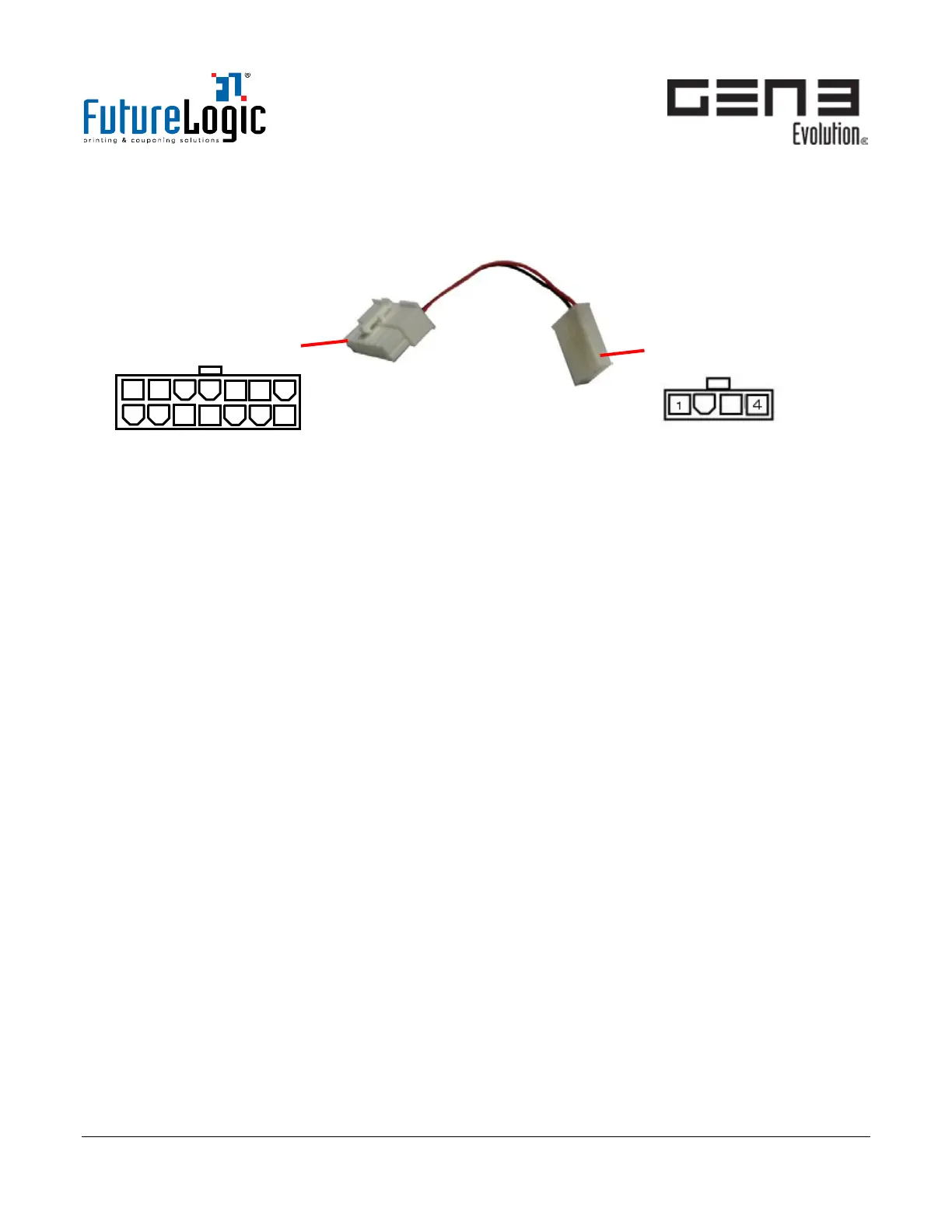

Figure 5-5 GDS Adapter Cable
P/N 150
-00164-100
Base Port
4-pin GDS Connector
7
8
1
14
