Operators and Technicians Manual
2011 – 2014 FutureLogic, Incorporated. All Rights Reserved. MNL Page 37 04/10/2014
MNL-000067 REV.X03

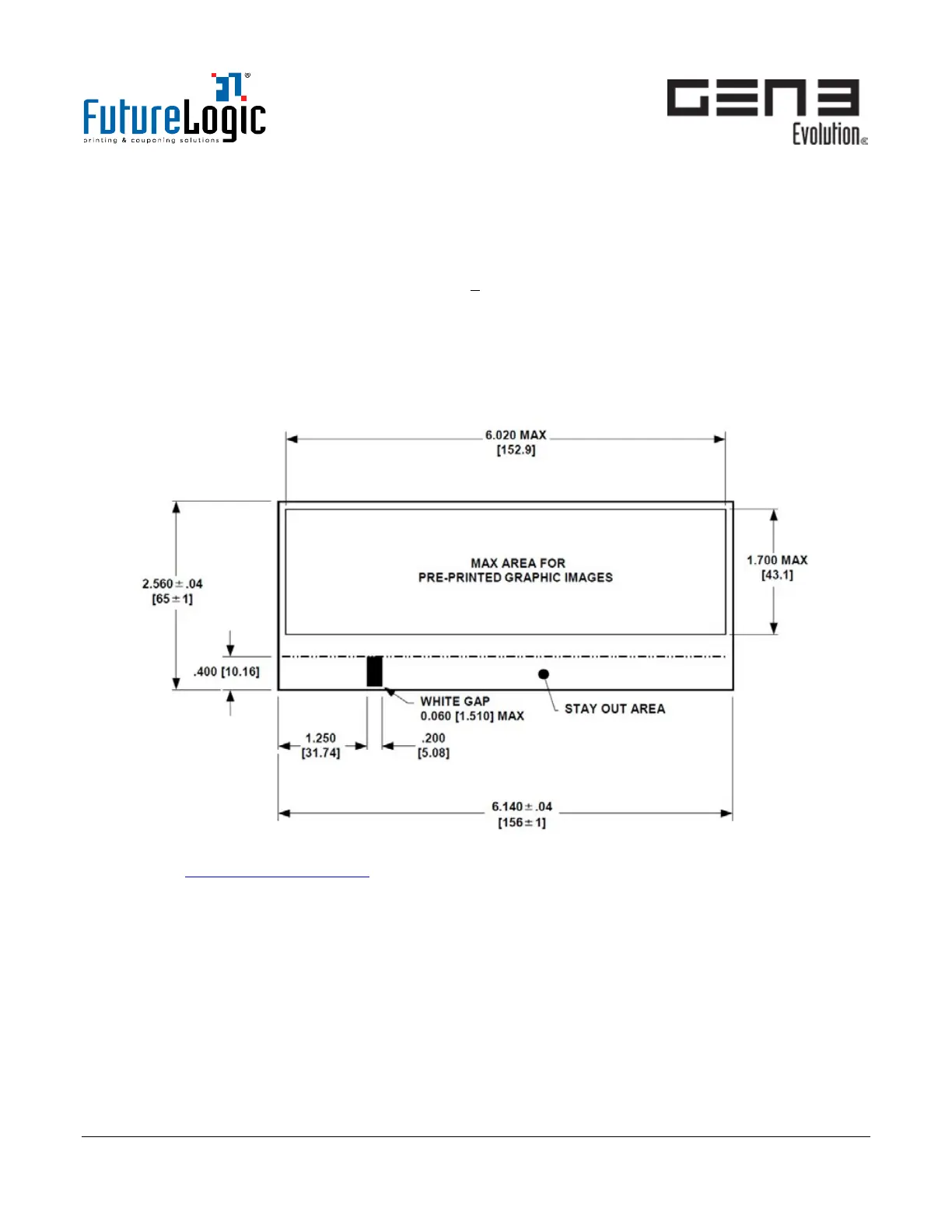

Ticket/Paper Specifications
Use only approved paper in the printer. Use of improper paper may cause damage to the device and will
void the printer’s warranty.
Paper dimensions: 65mm x 156mm (width dimension +1mm
Nominal paper thickness: 4.5mil
Paper width: +0mm, –1mm.
450 Ticket Stack: 450STK, 65X156, 5M, Fanfold
900 Ticket Stack: 900STK, 65X156, 5M, Fanfold
For authorized ticket converters and complete paper specifications, contact your sales representative or visit
our Web site: www.futurelogic-inc.com
.
