162 Appendices DMC-1000
Connectors are the same as described in section
entitled “
Connectors for DMC-1000 Main Board”.
see pg.
146
JX6, JY6, JZ6, JW6 - Encoder Input (10 pin IDC)
1 CHA 2 +VCC
3 GND 4 No Connection
5 CHA - 6 CHA
7 CHB - 8 CHB
9 INDEX - 10 INDEX
*CAUTION: The ICM-1100 10-pin connectors are designed
for the N23 and N34 encoders from Galil. If you are using
Galil's Motor-5-500, Motor-50-1000 or Motor-500-1000, you
must cut encoder wires 5, 6, 7 and 9.

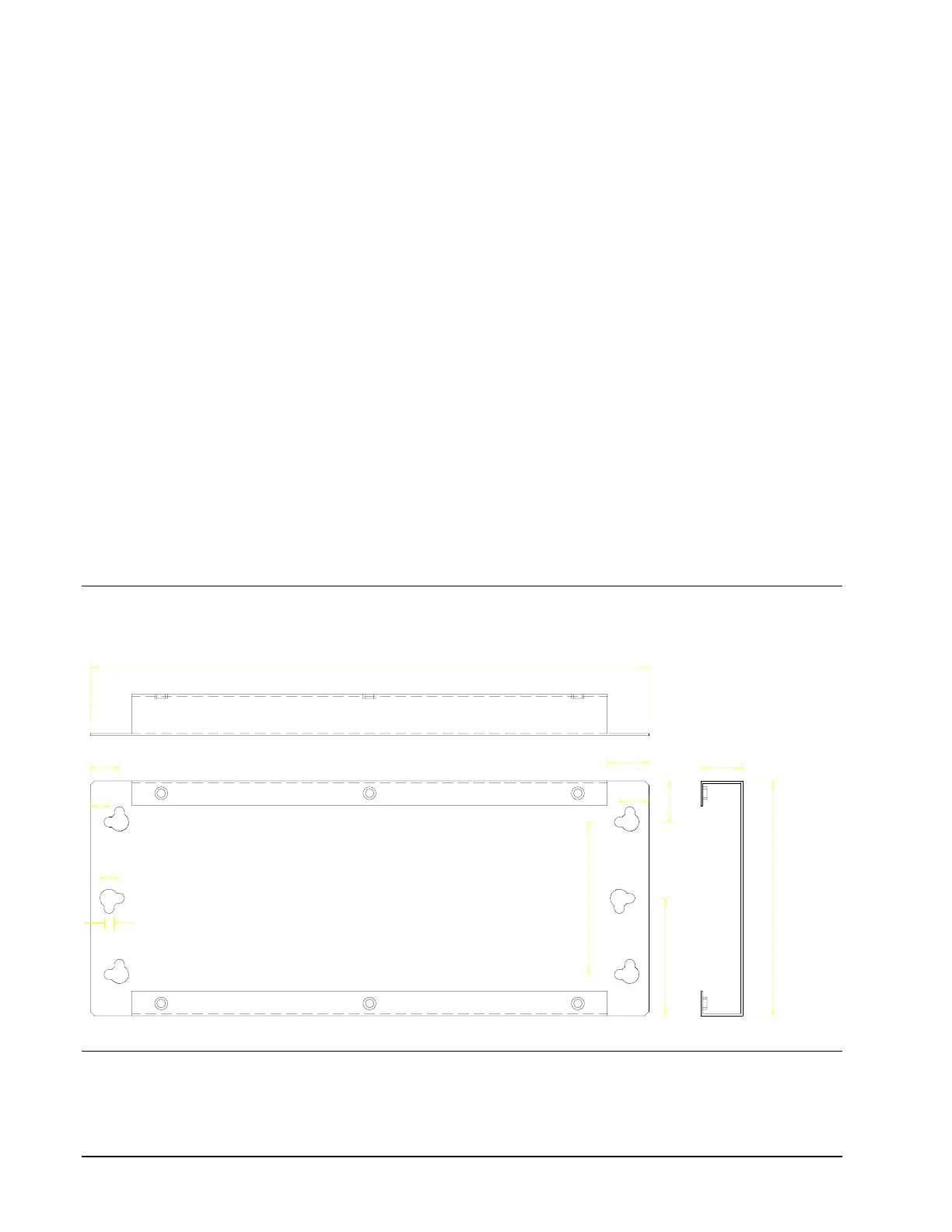

ICM-1100 Drawing
13.40"
0.44"
0.24"
0.70"
0.45"
3.70" 5.70"
2.85"
1.00"
1.01"
0.70"
1.00"
