DMC-21x3 Accessories Chapter 13 DB-28040• 79
SSI
The DB-28040 can also be ordered to support SSI encoders.
When using the SSI option for the DB-28040, note that bank 6 (bits 49 to 56) are not active.
Please see Application Note 2438: Galil SSI Encoder Interface, for more details.
DB-28040 and AMP-205x0
The standard DB-28040 is not compatible with an AMP-205x0; however, the DB-28040-RA
can be ordered to have a special right angle connector installed so that it can connect while the
AMP-205x0 is present. This option must be ordered at the time the AMP and DMC-21x3 is
ordered because both the AMP and DB require modification. Order AMP-205x0-DBREADY.
The eight analog inputs on the AMP become invalid in this configuration. Only the eight analog
inputs on the DB may be used.

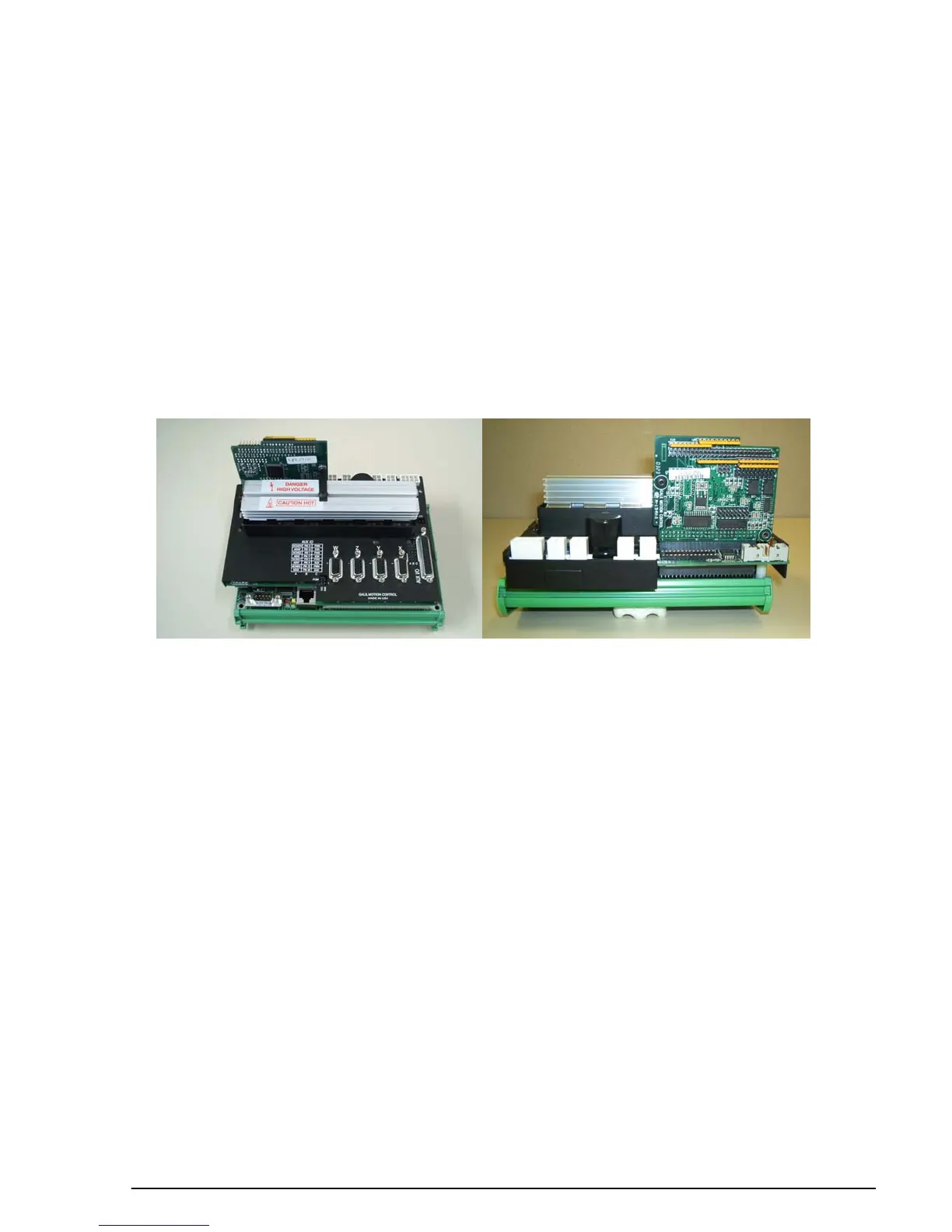

Figure 37 DMC-2143-DIN with AMP-20540 and DB-28040
DB-28040 and AMP-205x2 or SDM-20640
To use the AMP-205x2 or SDM-20640 with the DB-28040, order AMP-205x2-DBREADY or
SDM-20640-DBREADY. The standard DB-28040 is used, and lays flat on top of the AMP or
SDM, but the AMP or SDM requires modification. The eight analog inputs on the AMP
become invalid in this configuration. Only the eight analog inputs on the DB may be used.
