DMC-21x3 Accessories Chapter 7 AMP-20440/20420• 39
Chapter 7 AMP-20440/20420
_____________________________________________________________
Introduction
The AMP-20420 and AMP-20440 are brush style amplifiers with a power capacity of 200 Watts
per channel. The amplifier is operational from 18-60 VDC. The amplifier is a transconductance
amplifier and will supply a current proportional to a given command signal. The amplifier
includes protection against over voltage and over current. The controller below is shown
connecting with an AMP-20440.

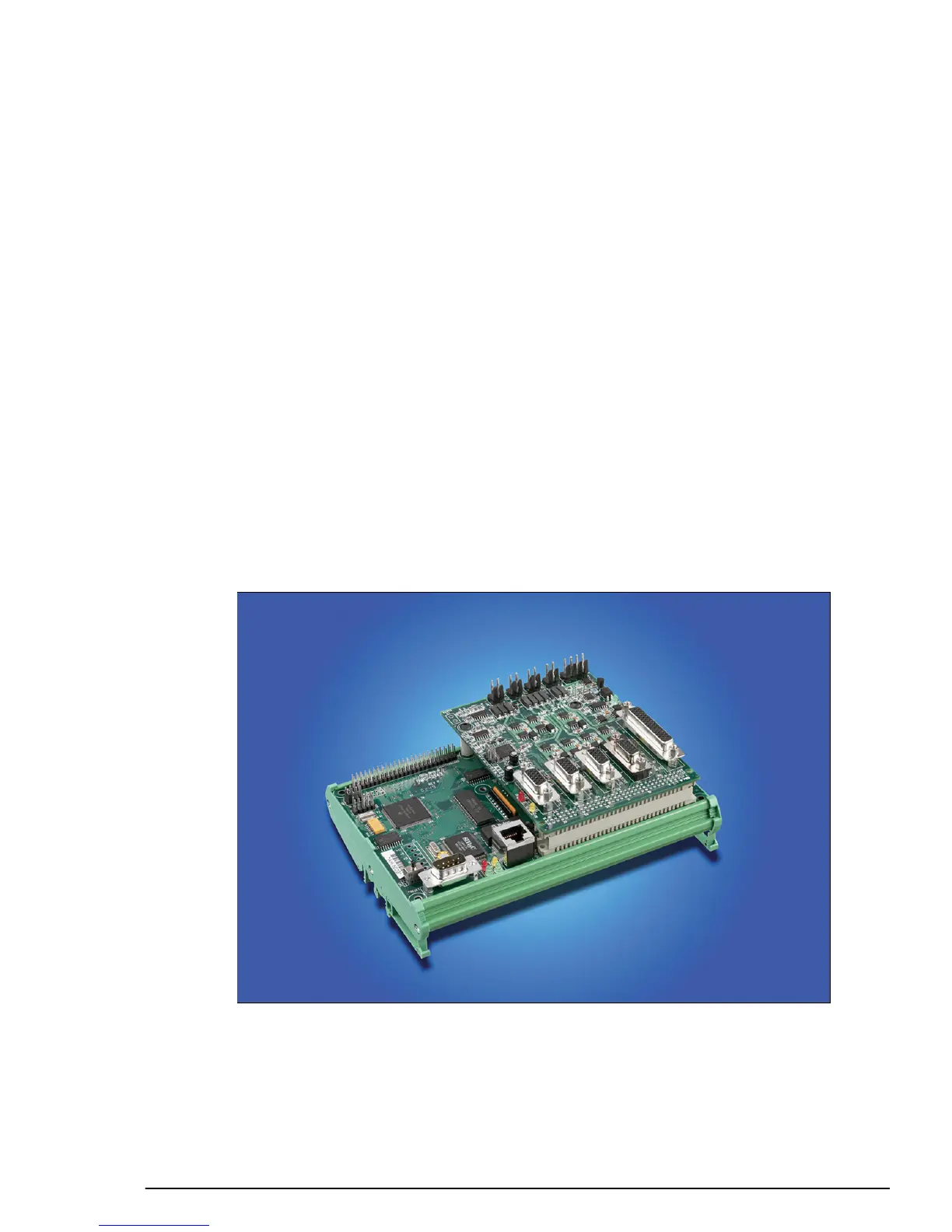

Figure 18 AMP-20440 shown mounted to a DMC-2143-DIN-DC24
