DMC-21x3 Accessories Chapter 15 Cables for AMP-20xxx• 91
Chapter 15 Cables for AMP-20xxx
____________________________________________________________________________
The Cable-44pin-xm is used to break-out the I/O signals on connector J3 of the AMP-205x0 or
AMP-20542. This cable consists of a 44-pin High Density Male DSub connector at one end, and
flying leads at the other end. This cable is available in 1 meter or 2 meter lengths, designated by
the ‘xm’ portion of the part number. For example, the part number for the 2 meter length is
Cable-44pin-2m.
There are three versions of the Cable-44, each version has different pinout color coding. The
following describes the three versions and their differences.
Version 1: Cables purchased before January 2004 have a slick black sheath. The part number on
the sheath is 0006-0044 REV.-S1.

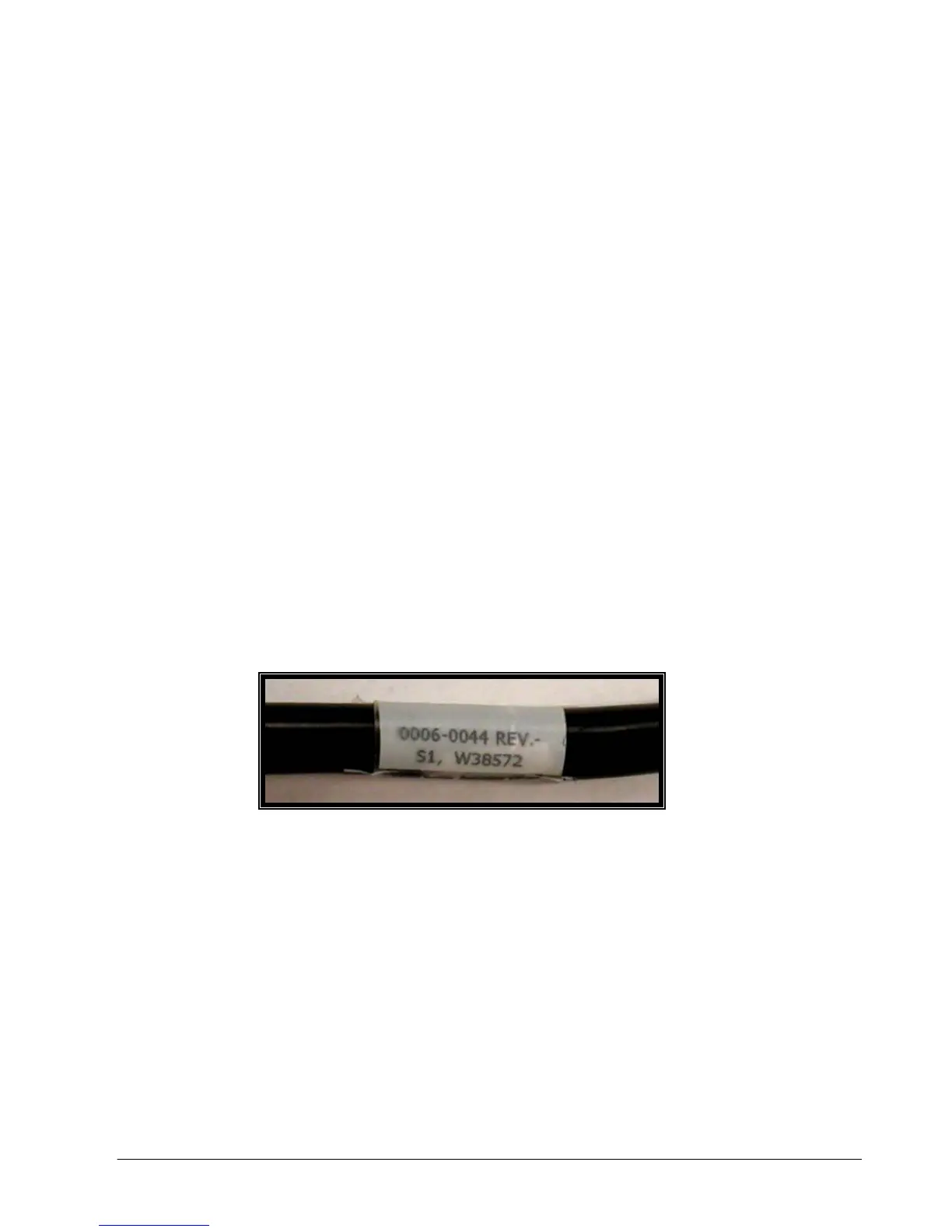

Fig 1. Version 1 Cable-44 Part Number
For pinout information of this cable, see Table 1 below.
Note: This chapter refers only to the pinout of the AMP-205x0 and 20542. For the AMP-204x0,
refer to Chapter 7.
