DMC-21x3 Accessories Chapter 13 DB-28040• 75
Chapter 13 DB-28040
____________________________________________________________________________
Introduction
The DB-28040 is an I/O daughter board for the DMC-21x2/21x3 series motion controllers.
NOTE: The following information will apply to all DB-28040 revision E or newer boards.
For information on previous revision boards please see application note #1253.
http://www.galilmc.com/support/appnotes/econo/note1253.pdf

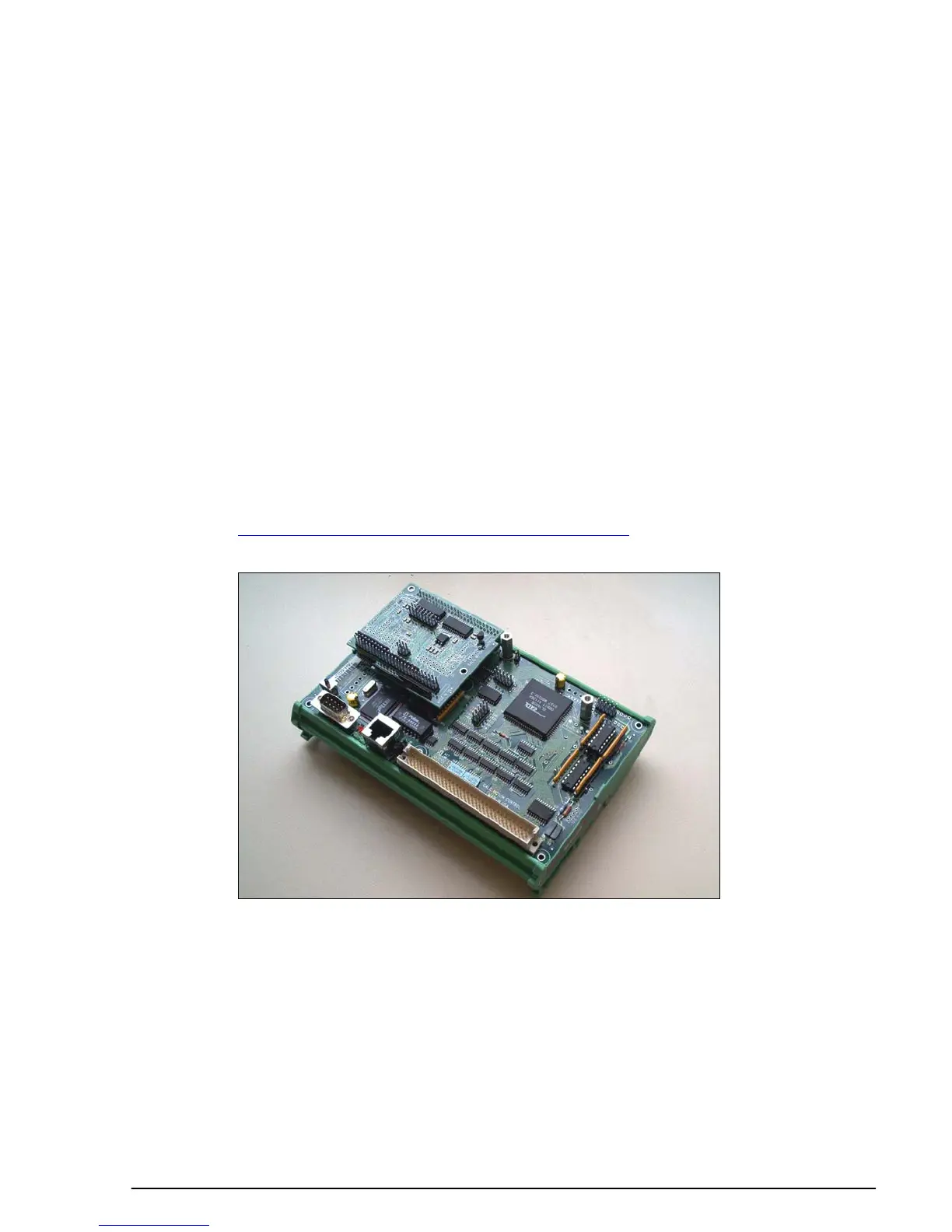

Figure 35 DB-28040 Mounted to DMC-2143-DIN
