DMC-21x3 Accessories Chapter 14 DB-28104• 89

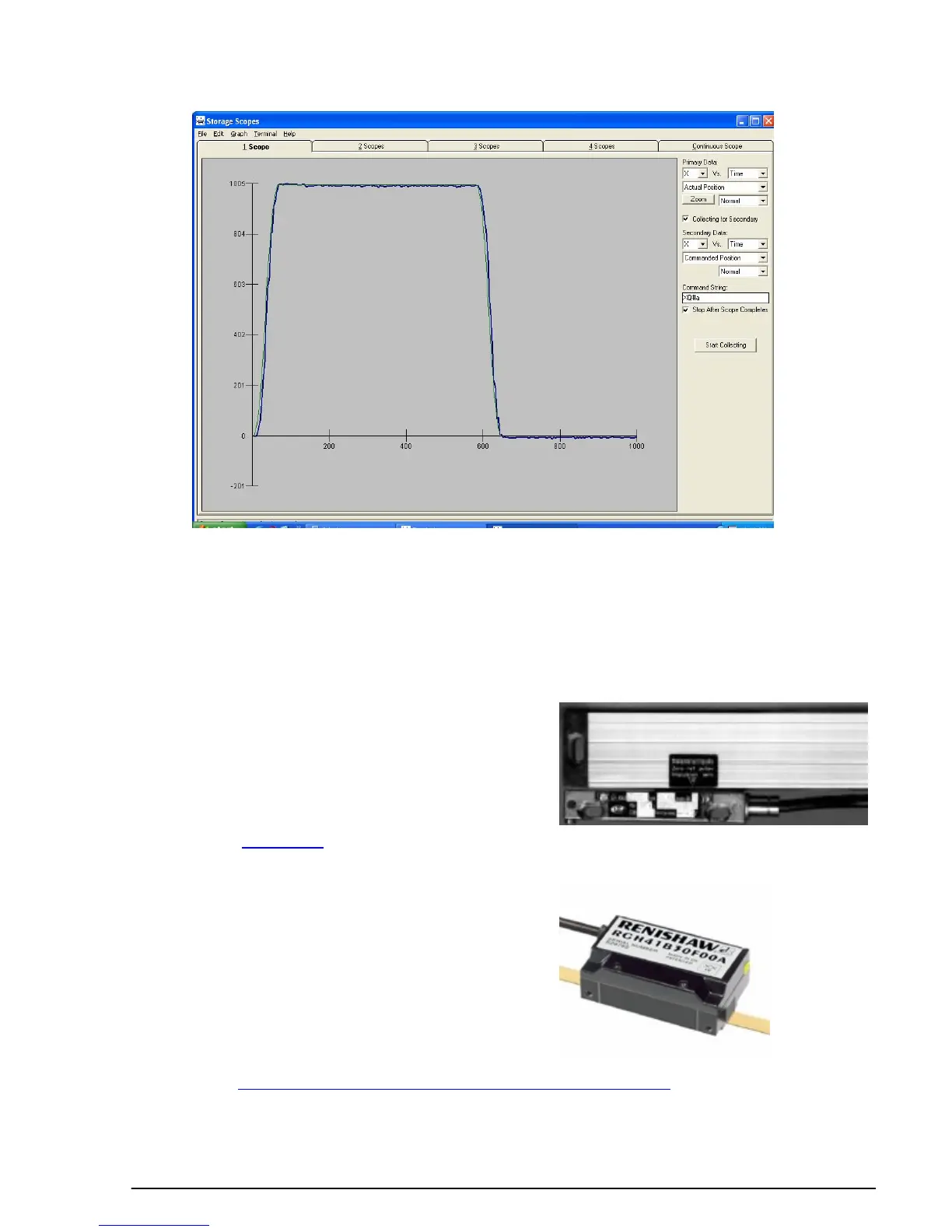

Figure 45 AFX=12 step response.
Example sin/cos Encoders
RSF Elektronik MSA 670.3
20 μm pitch
at AFX=12 results in 5 nm position resolution.
* This encoder can be ordered from RSF with
a cable that mates directly to the DB-28104.
Use cable code UIE.
www.rsf.net
Renishaw RGH41B30F00A
40 μm pitch
at AFX=10 result in 40 nm position resolution
Renishaw RGH22B series
20 μm pitch
at AFX=12 result in 5 nm position resolution
www.renishaw.com/client/category/UKEnglish/CAT-1079.shtml
