RX Series User Manual
Installation 2-30

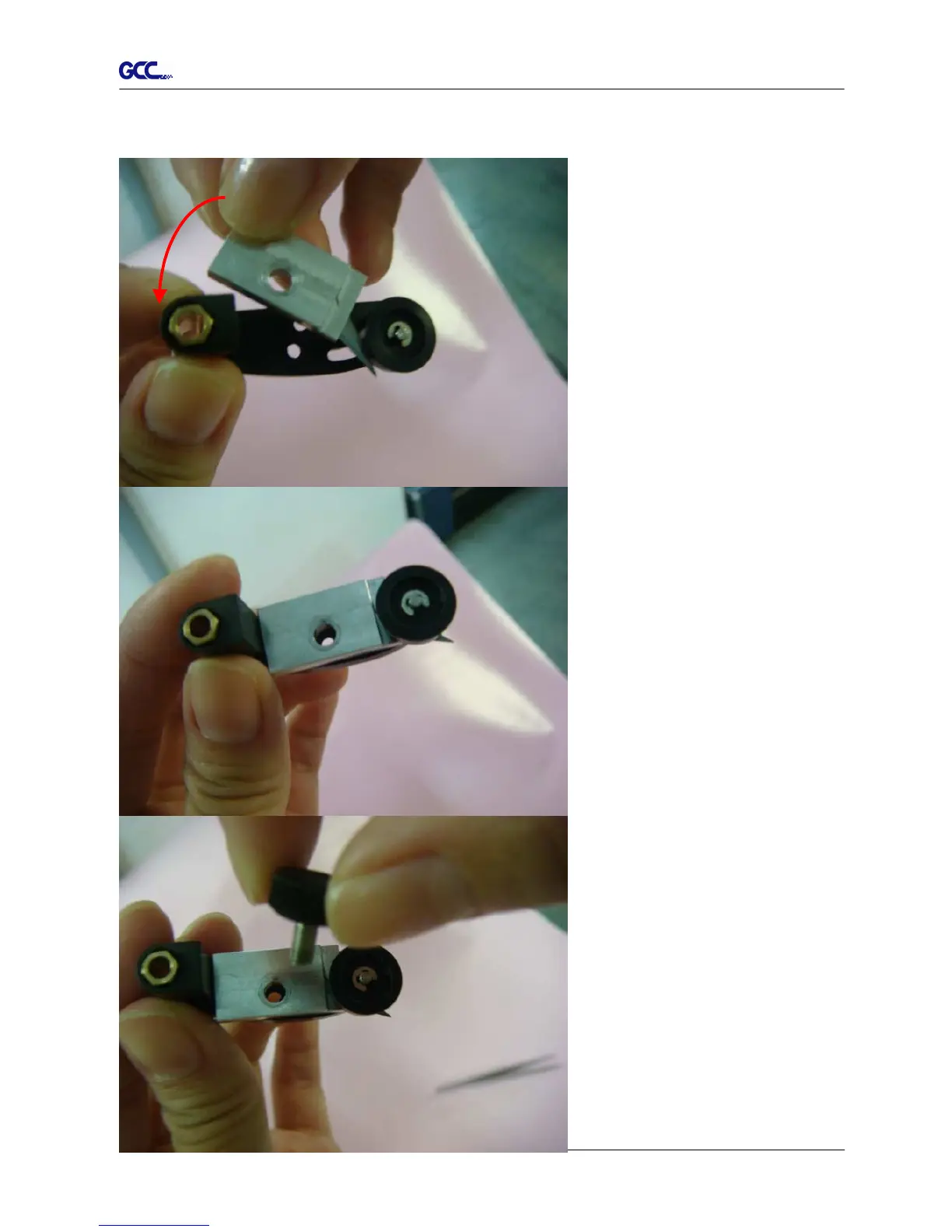

Step 8 Assemble the Cut-off Blade Fixer back to the Cut-off Unit by pushing the Holder
downwards (Figure 2-47 and 2-48) and attach the screw (Figure 2-49).
Figure 2-48
Figure 2-49
Figure 2-47
