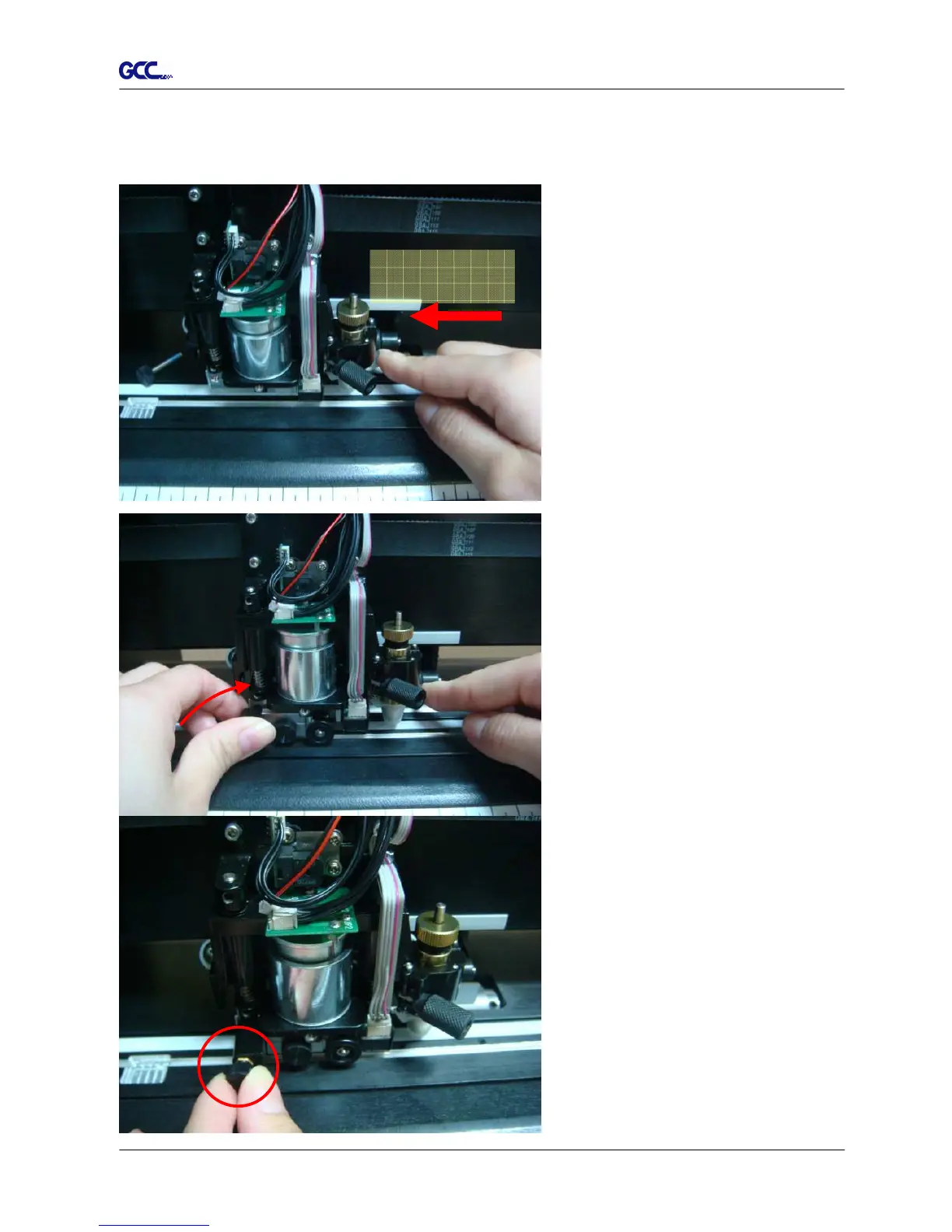

Step 9 Assemble the Cut-off Unit back to the Tool Carriage by pushing the metal board on the
right while pushing the Cut-off Unit upwards (Figure 2-50 and 2-51) and attaching the screw
(Figure 2-52).
Push to the left
Figure 2-51
Figure 2-50
Figure 2-52
