6–164 339 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
S5 INPUTS/OUTPUTS CHAPTER 6: SETPOINTS

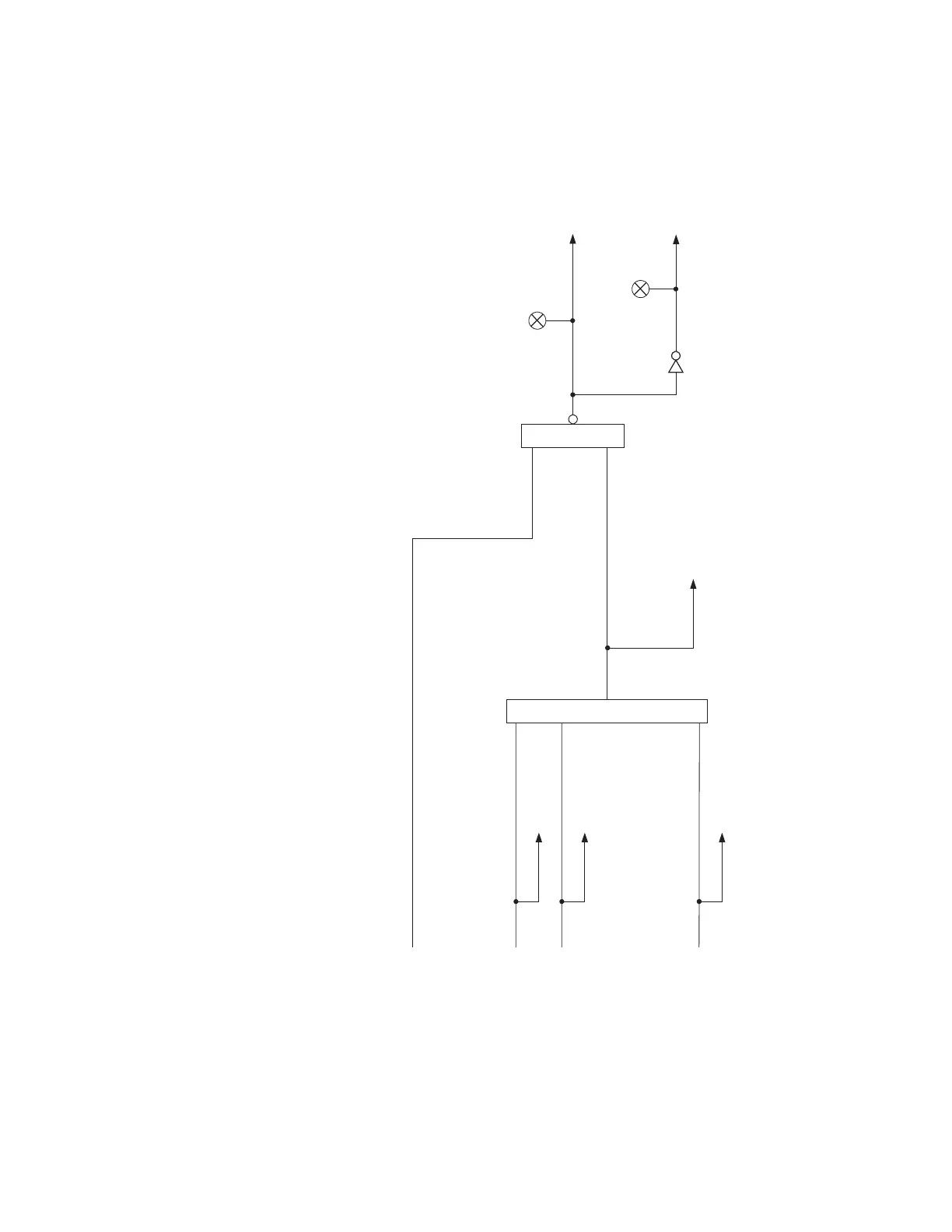

Figure 6-75: Output Relay 4: Critical Failure Relay
ANY MAJOR ERROR
(Forces the Relay into “Not Ready” state)
OR
S1 SETPOINTS / S1 RELAY SETUP / S1 INSTALLATION / RELAY STATUS
(Not Ready = 1)
LED: IN SERVICE
OR
.
.
.
.
.
.
Message & Ev
ent Recorder
Major Error 1
See all major errors listed in the
table below
To Output Relays 1 to 6
In Service
De-energize Output Relay #7
(Critical Failure Relay)
LED: TROUBLE
898778.CDR
Major Error 2
Message & Event Recorder
Major Error XX
Message & Event Recorder
ANY MAJOR ERROR
Message & Event Recorder
