PanaFlow™ LC User’s Manual 151
Appendix H. Foundation Fieldbus Communication
H.6 Composite Transducer Block
The Composite Transducer Block provides the measurement values and programmable parameters that are
common to all three paths. Figure 135 below shows the
Composite Transducer Block and Table 38 on page 152
lists the Measurements and Parameters that are available.
Note: The
R/W designation means that the parameter is writable in FF using an Admin password.

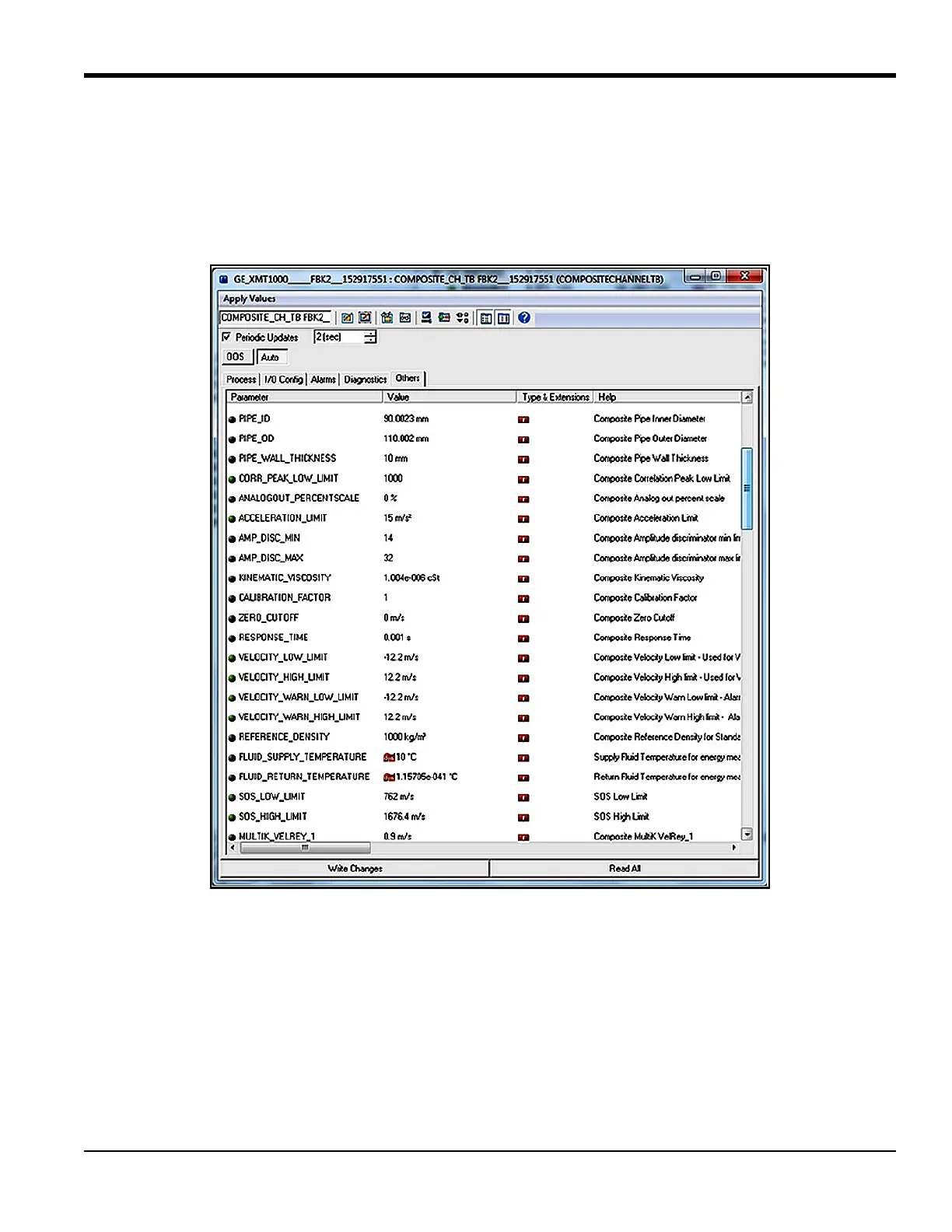

Figure 135: Composite Transducer Block
