Appendix H. Foundation Fieldbus Communication
158 PanaFlow™ LC User’s Manual
H.8 Channel Transducer Block
The CH1, CH2 and CH3 transducer blocks show the measurement values and programmable parameters for
each of the three paths. Figure 137 below shows the
Channel Transducer Block, and Table 41 on page 159 lists
the measurements and parameters that are available.
Note: The
R/W designation means that the parameter is writable in FF using an Admin password.

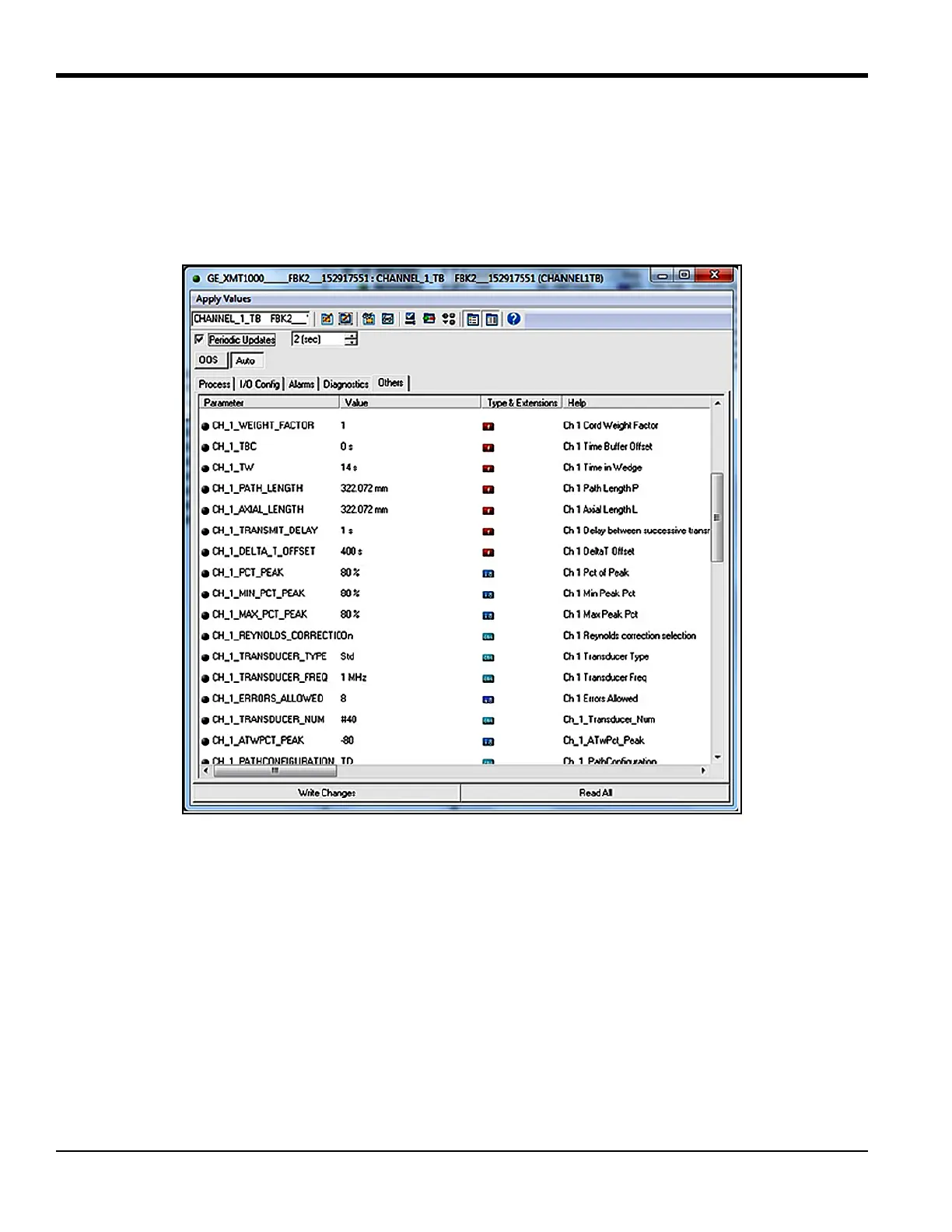

Figure 137: Channel Transducer Block
