Chapter 2. Installation
24 PanaFlow™ LC User’s Manual

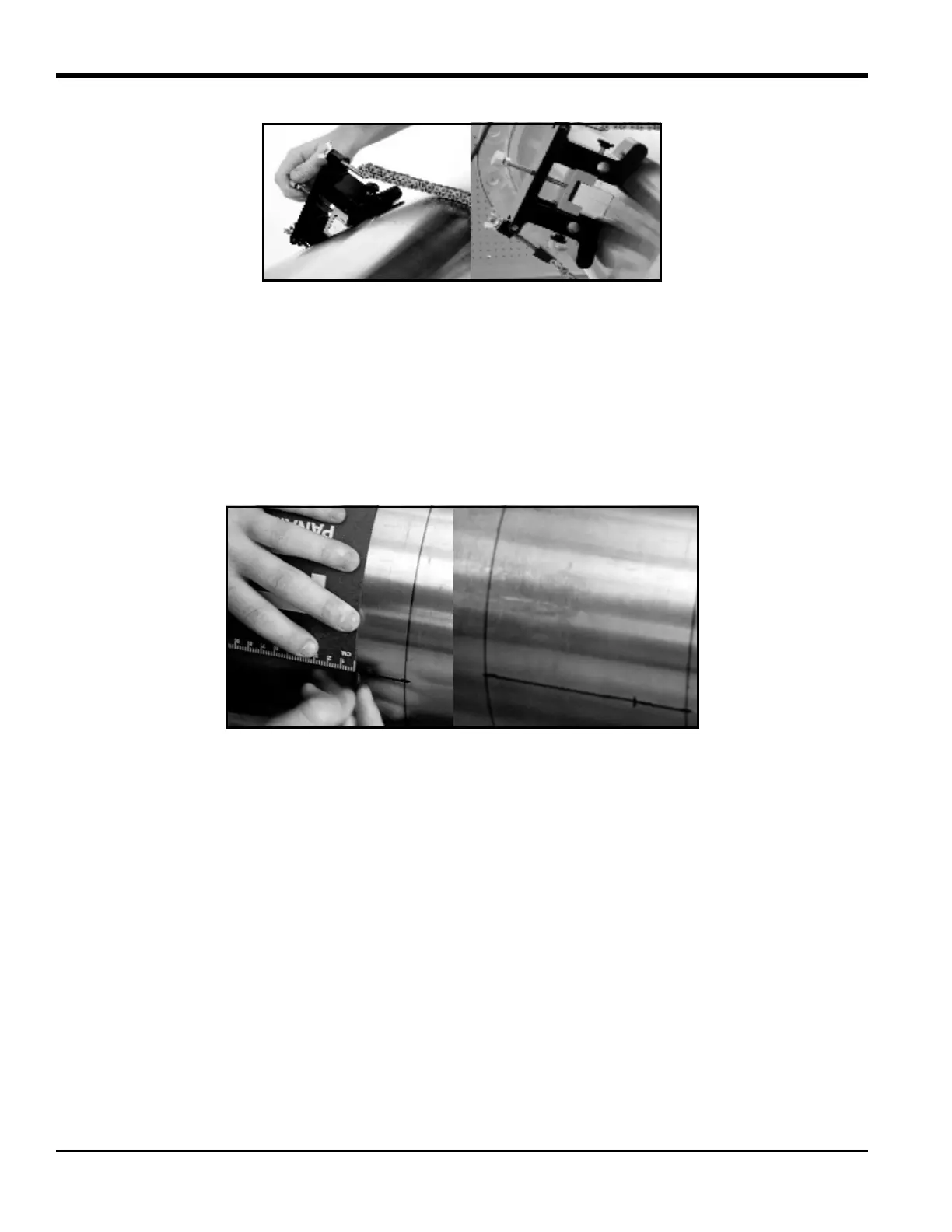

Figure 34: Positioning the CFG-PI Holder Bracket
5. Loosen the transducer hold-down screw and tighten the J-hooks on the clamping fixture. Be sure the
bracket has not moved from its position.
2.9.3 Installing the Second Bracket with a Chain
1. Measure the spacing from the zero point (the point of circumferential origin). Mark the spacing point
with a crosshair on the opposite side of the pipe, 180° from the zero point (as shown in Figure 35
below).
Figure 35: Measuring and Marking Spacing
2. Carefully wrap the chain or strap around the pipe, taking care not to twist it.
3. Loosen the wing nuts up to the end of the J-hooks. Then hook the chain into the tightest links and
firmly hand tighten the wing nuts.
4. Line up the other edge of the CFG-PI holder bracket with the scribe line and tighten the chain or strap,
as shown in Figure 36 below.
