PanaFlow™ LC User’s Manual 39
Chapter 3. Programming
3.3.2 Log-in and Primary Pages
To Log-in into the meter perform the following steps:
1. Press [] until the lock icon on the meter’s Measurement View display is highlighted, then press
[ENTER].
2. In the Main Menu Scroll down and select [Program], then press [ENTER].
3. Scroll and select desired access level [Operator], then press [ENTER].
4. Enter the password Operator access level, and press [ENTER].
5. After completing the log-in steps you will see the primary pages as shown in the Figure 53. To move
from one page to the next, press [] or [] and to scroll to options within a page press [] and [].
Note: For ease of navigation up and down scroll is circular, meaning if you press [] when the first option is
highlighted, then you will be taken to the last option in the page. Similarly, when you press [] when
the last option is highlighted, then you will be taken to the first option in the page.

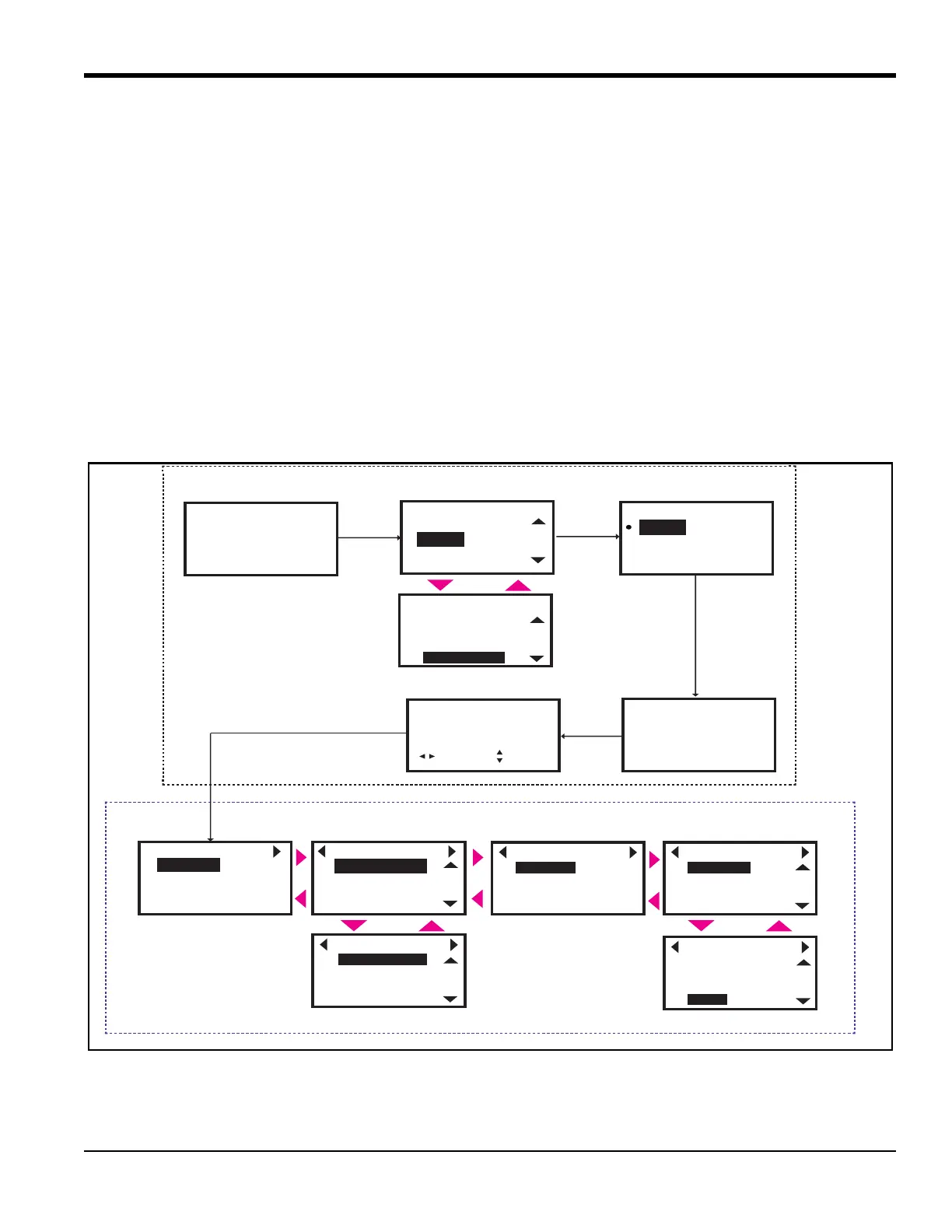

Figure 53: Log-in Steps and Primary pages
Velocity
0.000
m/s
Main Menu
Errors/Warnings
Flow Info
Display Format
Program
Admin
Factory
9
9
WARNING!
After Entering the correct
Password, the system will go
to config mode. Confirm it,
Press Enter!
9
Enter Operator Password
111111
[ ]
9
Program
2
9
[ ]
ESC
MOVE
[ ]
[ ]
ENTER
MODF
System
View Error Log
Meter Settings
Meter Units
Input/Output
Digital Output (Std)
Analog Output (Std)
Communication Port
Option Comm (Slot 1)
Channel 1
Channel 2
Channel 3
Composite
Programming
Calibration Mode
Calibration Type
Reset K-Table
Meter Factor
Calibration
Reset K-Table
K-Table Selection
No. of Points
K-Table
Calibration
Digital Output (Std)
Option Comm (Slot 1)
Input/Output
Log-in Steps
PRIMARY PAGES
9
Operator
Flow Info
Keypod Lockout
Errors/Warnings
Main Menu
Software Upgrade
Reset Error Log
Analog Output (Std)
Option I/O (Slot 2)
Operator Access or Higher
๰
