H.11 Error Handling
The flow meter publishes the error status on the Fieldbus along with the real data. The error status can be
seen in the
CH_x_Reported Error parameter on the Channel Transducer Block. In addition, the Quality parameter
shown with each of the process variables reports the error. In Figure 139 below, the
CH1_REPORTED_ERROR
shows as
E1.
Note: For more information on the actual measurement errors and possible causes, see Chapter 4, Error
Codes and Troubleshooting.

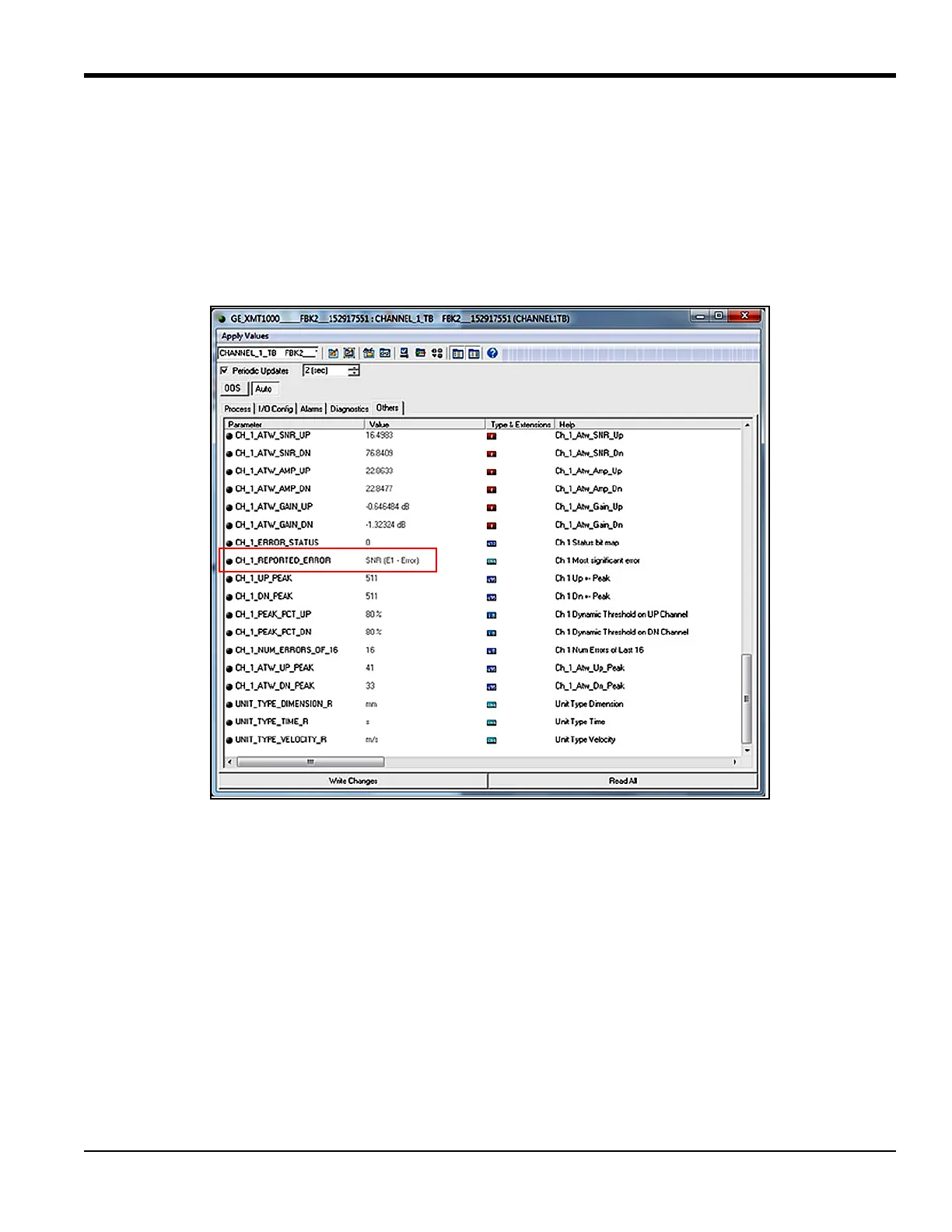

Figure 139: Reported Error
