Chapter 2. Installation
18 PanaFlow™ LC User’s Manual

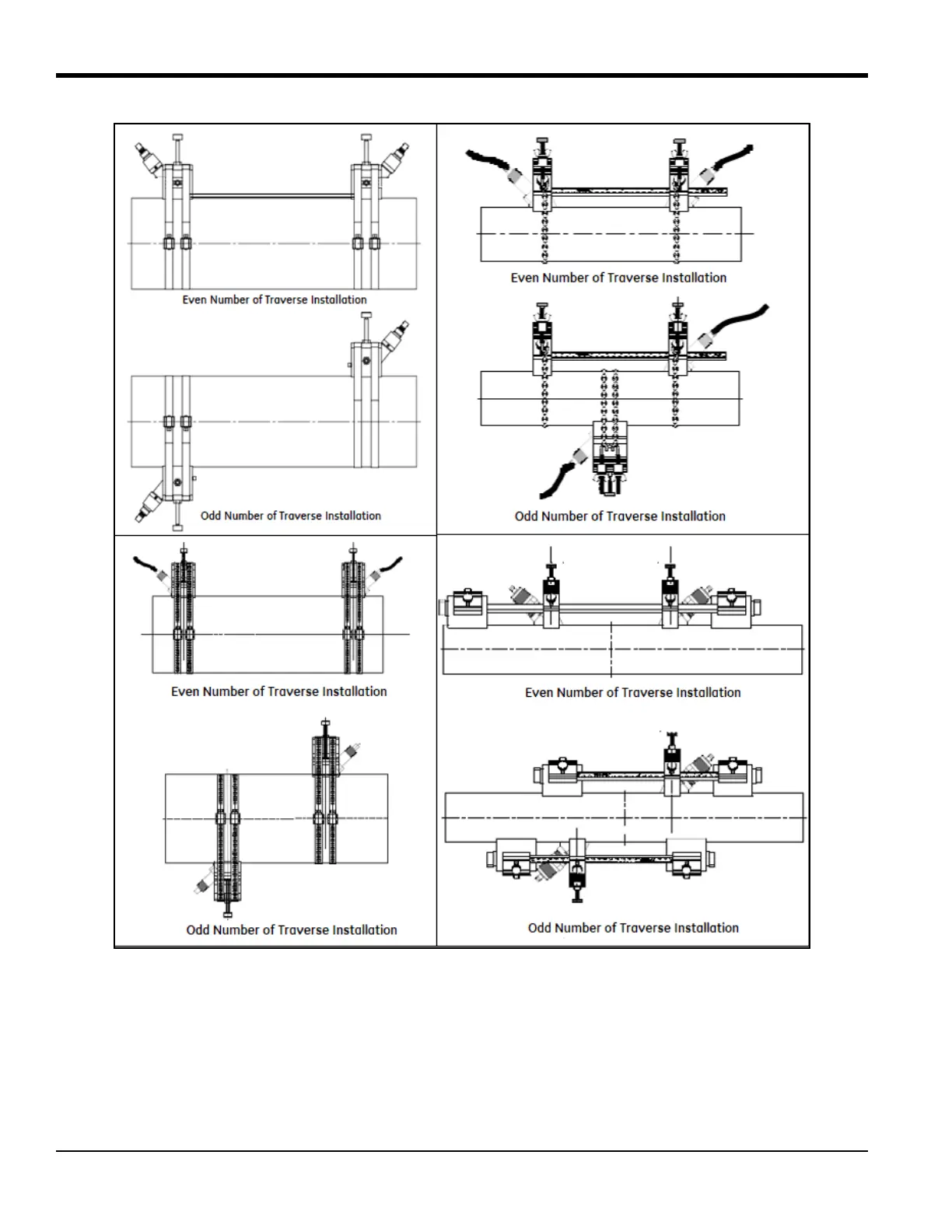

Figure 22: SCF Clamping Fixture (Top Left), UCF Clamping Fixture (Top Right), GCF Clamping Fixture
(Bottom Left), MCF Clamping Fixture (Bottom Right)
2.8 Installing the V Series Clamping Fixture and Transducers
To install the V Series clamping fixture and transducers, complete the following steps:
