3-54
C70 CAP
ACIT
OR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCT
ION MANUAL
ADD DEVICE TO SOFTWARE
CHAPTER 3: INSTALLATION
3

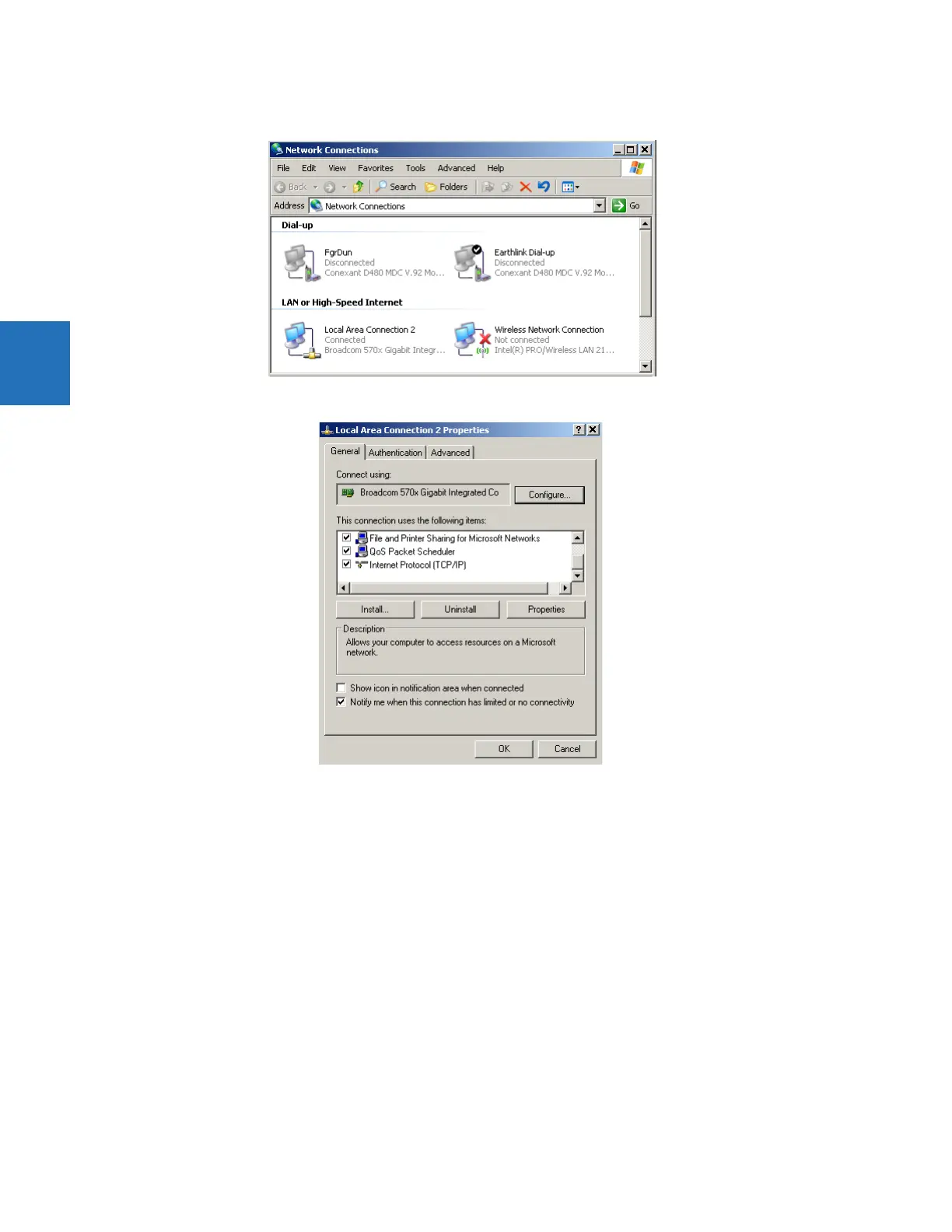

connections window
. Or in
W
indows 7, access the
Network and Sharing Center
in the Control Panel.
2.
Right-click the
Local Area Connection
icon and select
Properties
.
