CHAPTER 3: INSTALLATION WIRING
C70 CAPACITOR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL 3-33
3

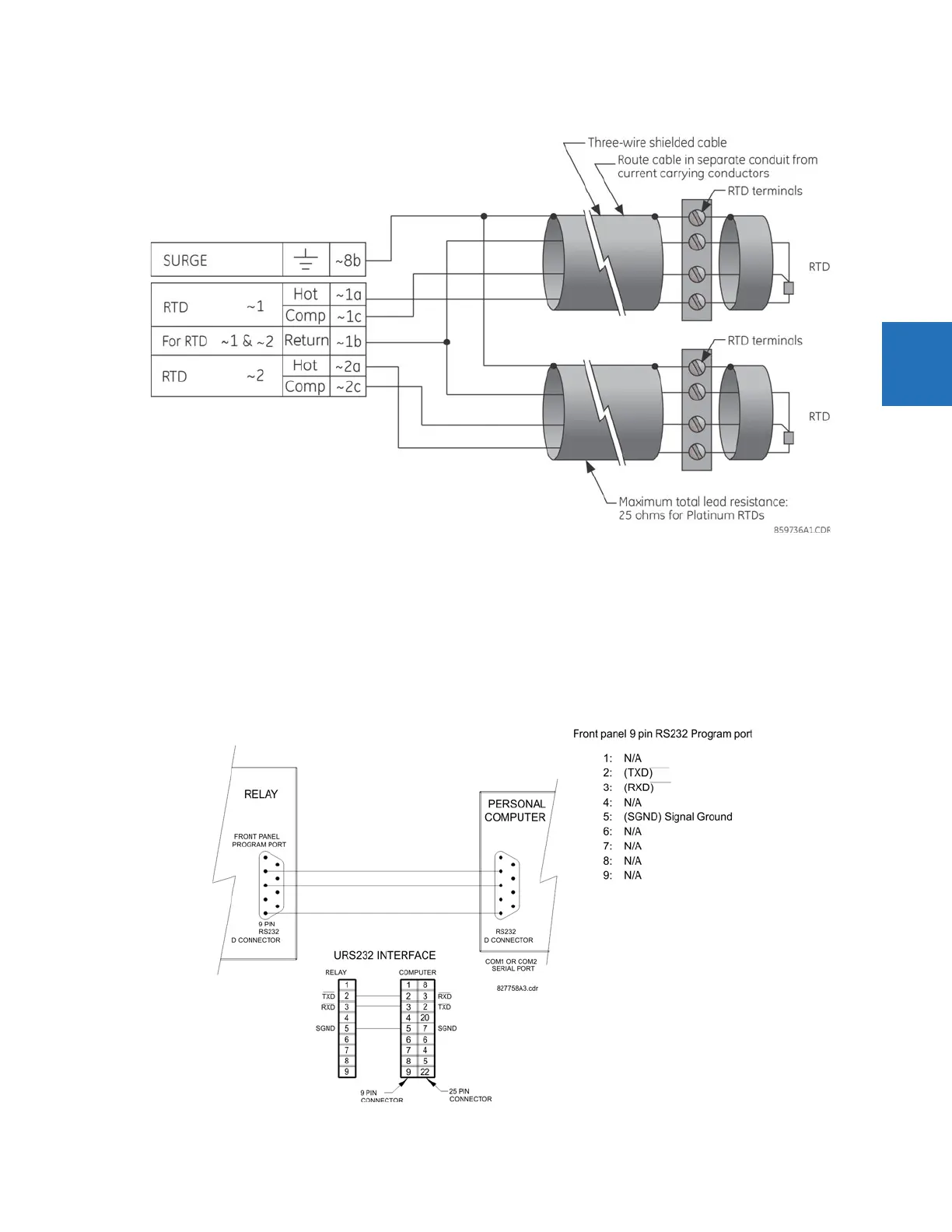

Figure 3-29: RTD connections
3.3.8 RS232 port
On the enhanced and standard front panels is a nine-pin RS232C serial port for programming with a computer. All that is
required to use this interface is a computer running the EnerVista UR Setup software provided with the relay. Cabling for
the RS232 port is shown in the following figure for the nine-pin connector on the UR and nine or 25-pin connector on a
computer.
The baud rate for this port can be set, with a default of 115200 bps.
Figure 3-30: RS232 front panel port connection
