3-32
C70 CAP
ACIT
OR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCT
ION MANUAL
WIRING
CHAPTER 3: INSTALLATION
3

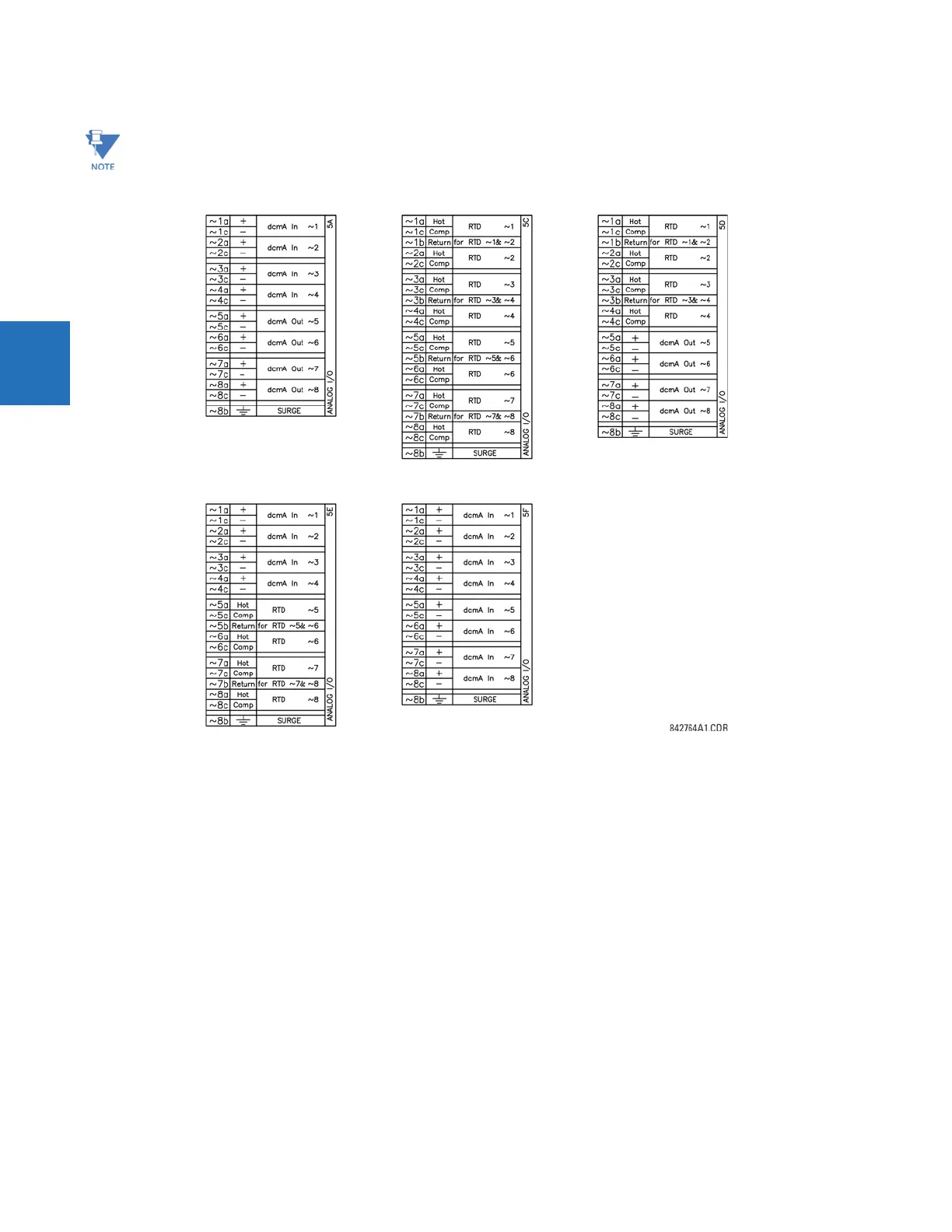

Figure 3-28: T
ransducer in
put/output module wiring
The following f
igure show how to connect RTDs.
Where a tilde “~” symbol appears, substitute the slot position of the module.
81
83
