4-6 C70 CAPACITOR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL
ENERVISTA SOFTWARE INTERFACE CHAPTER 4: INTERFACES
4
Alternatively, the settings template can be applied to online settings, as follows.
1. Locate the device in the Online Window area of the EnerVista UR Setup software.
2. Right-click the device and select the Template Mode > Create Template option. The software prompts for a template
password. This password is required to use the template feature and must be at least four characters in length.

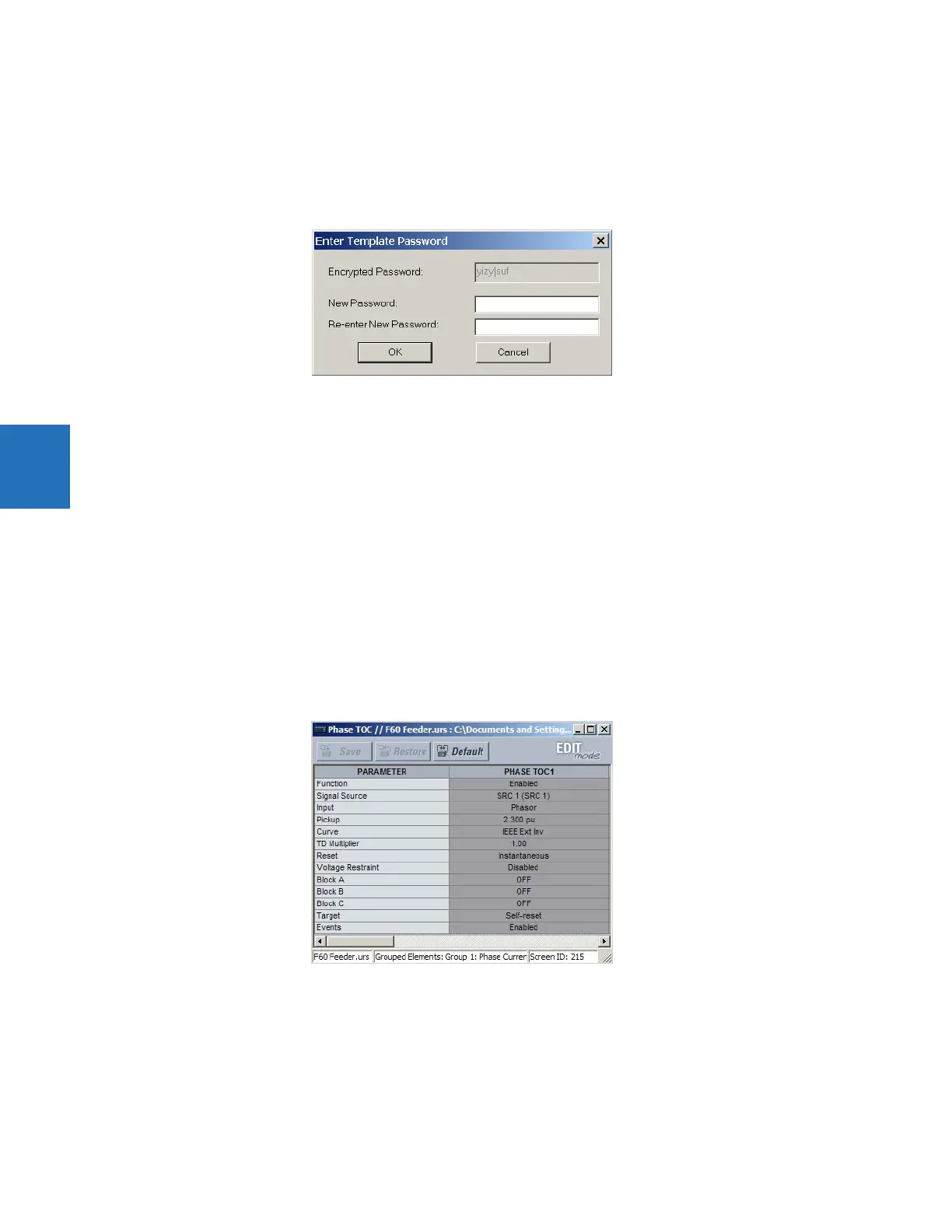

Figure 4-3: Entering a settings file password
3. Enter and re-enter the new password, then click OK to continue.
The online settings template is now enabled. The device is now in template editing mode.
4.1.7.2 Edit the settings template
The settings template editing feature allows the user to specify which settings are available for viewing and modification in
EnerVista UR Setup. By default, all settings except the FlexLogic equation editor settings are locked.
1. With the template already enabled, locate the device or settings file in the Online or Offline Window area in the
software.
2. Right-click the device or file and select the Template Mode > Edit Template option to verify or place the device in
template editing mode (check mark beside option). If prompted, enter the template password then click OK.
3. Open the relevant settings window that contains settings to be specified as viewable.
By default, all settings are specified as locked and displayed against a grey background. The icon on the upper right of
the settings window indicates that the EnerVista software is in EDIT mode. The following example shows the phase
time overcurrent settings window in edit mode.
Figure 4-4: Settings template with all settings specified as locked
4. Specify the settings to make viewable by clicking them.
A setting available to view displays with a yellow background.
