CHAPTER 4: INTERFACES FRONT PANEL INTERFACE
C70 CAPACITOR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL 4-53
4

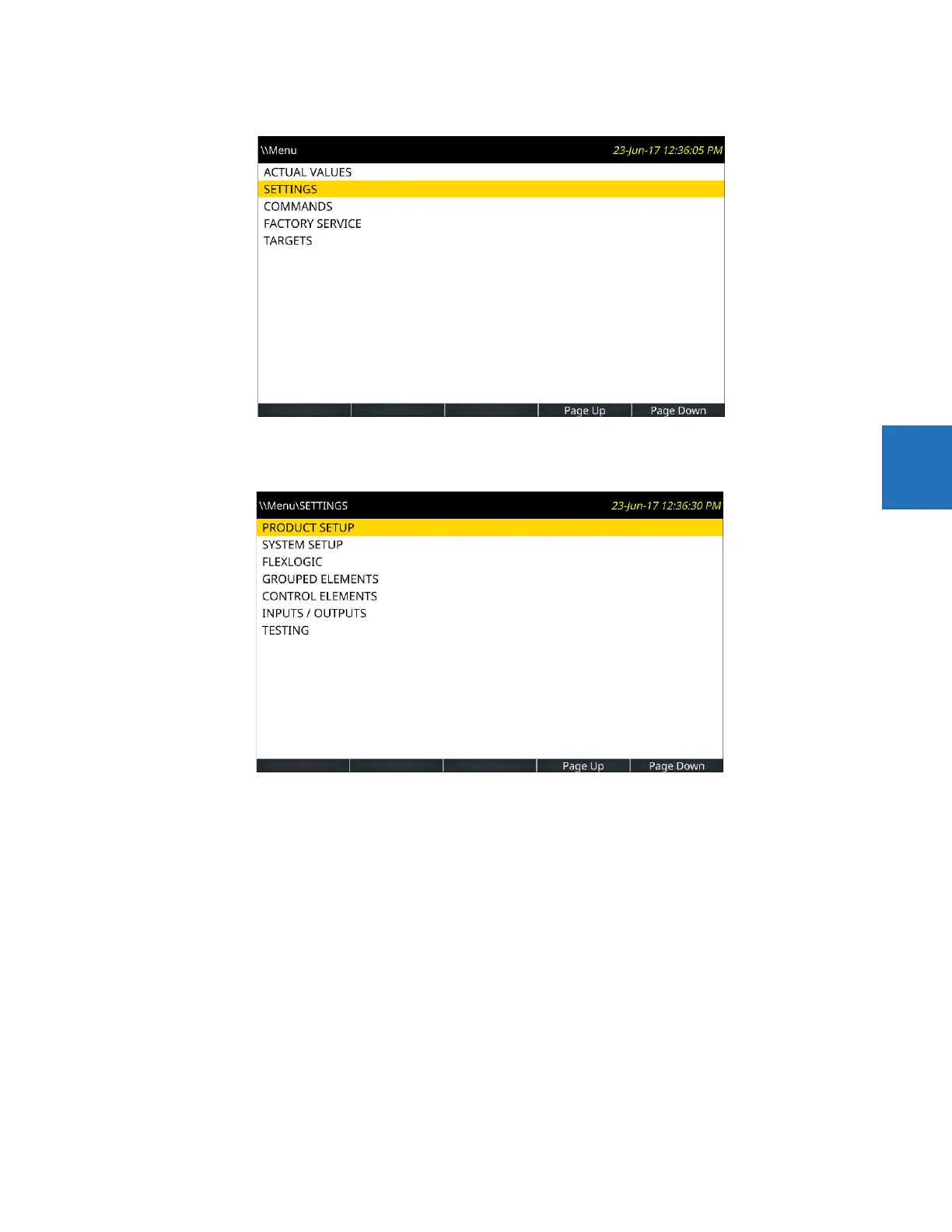

Figure 4-56: Main menu
Use the Up or Down pushbutton to select SETTINGS, then press the Right or ENTER pushbutton.
Figure 4-57: Settings menu
With PRODUCT SETUP selected, press the Right or ENTER pushbutton.
