CHAPTER 5: SETTINGS
SYSTEM SETUP
C70 CAPA
CIT
OR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL
5-159
5

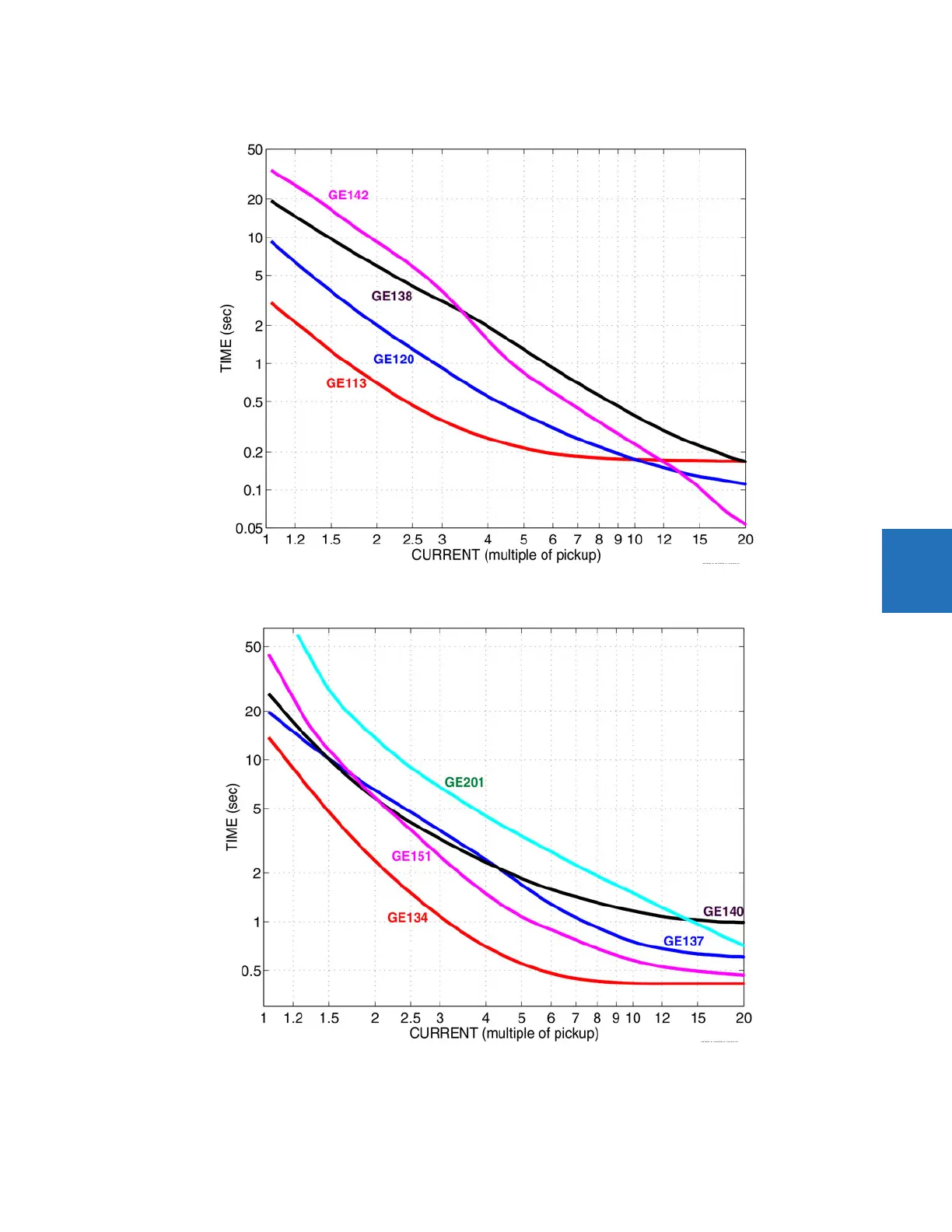

Figure 5-78: R
ecloser curves GE113, GE120, GE138, and GE142
Figure 5-79: Recl
oser curves GE
134, GE137, GE140, GE151, and GE201
