There are three phase overvoltage elements available. A phase overvoltage element is used as an instantaneous element
with no intentional time delay or as a definite time element. The input voltage is the phase-to-phase voltage, either
measured directly from delta-connected VTs or as calculated from phase-to-ground (wye) connected VTs. The figure
shows specific voltages to be used for each phase.

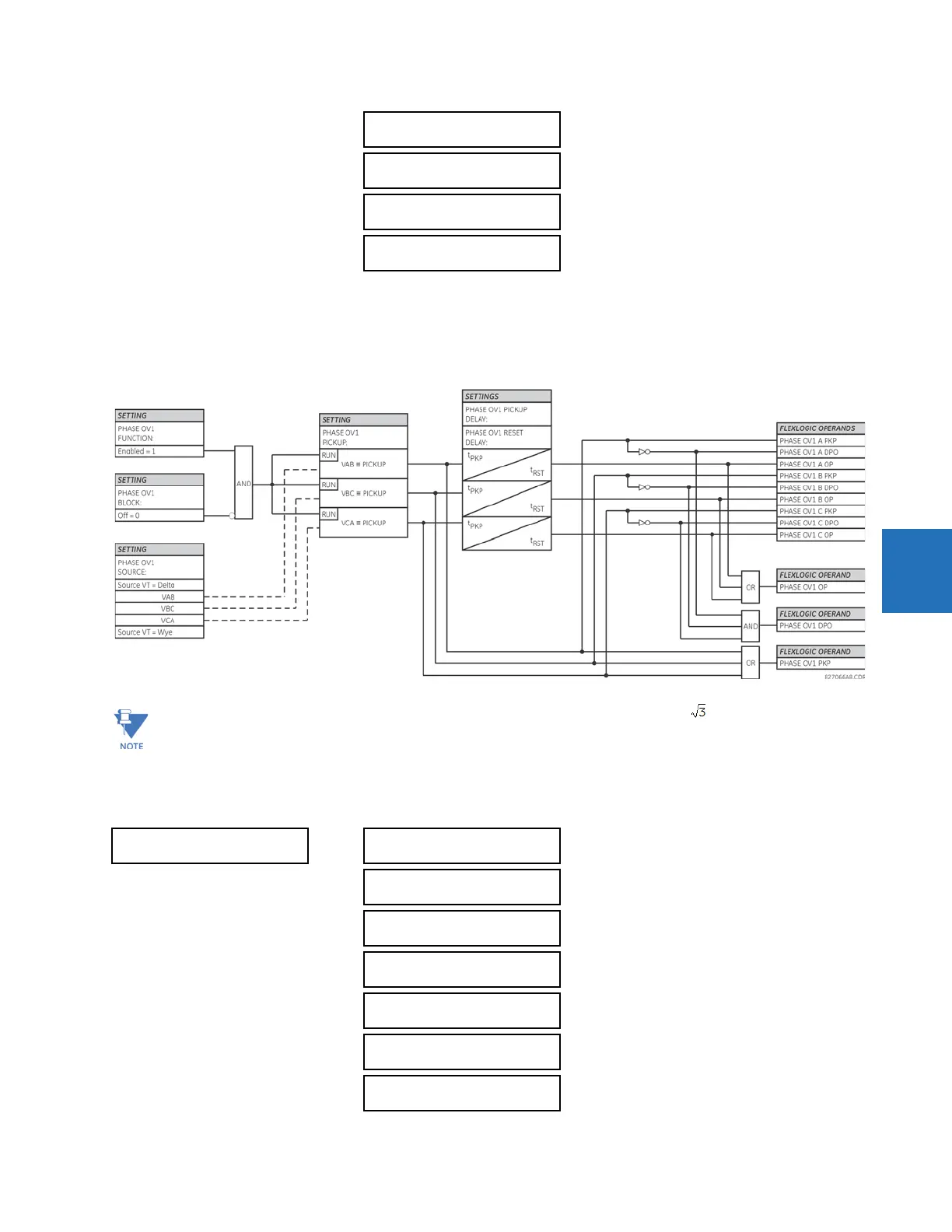

Figure 5-124: Phase overvoltage logic
5.7.8.4 Neutral overvoltage (ANSI 59N, IEC PTOV)
SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  VOLTAGE ELEMENTS  NEUTRAL OV1(3)

PHASE OV1 RESET
DELAY: 1.00 s
Range: 0.00 to 600.00 s in steps of 0.01

PHASE OV1 BLOCK:
Off
Range: FlexLogic Operand

PHASE OV1
TARGET: Self-reset
Range: Self-reset, Latched, Disabled

PHASE OV1
EVENTS: Disabled
Range: Disabled, Enabled
If the source VT is wye-connected, then the phase overvoltage pickup condition is V > x Pickup for V
AB
, V
BC
, and
V
CA
.
 NEUTRAL OV1


NEUTRAL OV1
FUNCTION: Disabled
Range: Disabled, Enabled

NEUTRAL OV1 SIGNAL
SOURCE: SRC 1
Range: SRC 1, SRC 2, SRC 3, SRC 4, SRC 5, SRC 6

NEUTRAL OV1 PICKUP:
0.300 pu
Range: 0.004 to 3.000 pu in steps of 0.001

NEUTRAL OV1 CURVE:
Definite Time
Range: Definite Time, FlexCurve A, FlexCurve B,
FlexCurve C

NEUTRAL OV1 PICKUP:
DELAY: 1.00 s
Range: 0.00 to 600.00 s in steps of 0.01

NEUTRAL OV1 RESET:
DELAY: 1.00 s
Range: 0.00 to 600.00 s in steps of 0.01

NEUTRAL OV1 BLOCK:
Off
Range: FlexLogic operand
