PANEL CUTOUTS CHAPTER 3: INSTALLATION
3

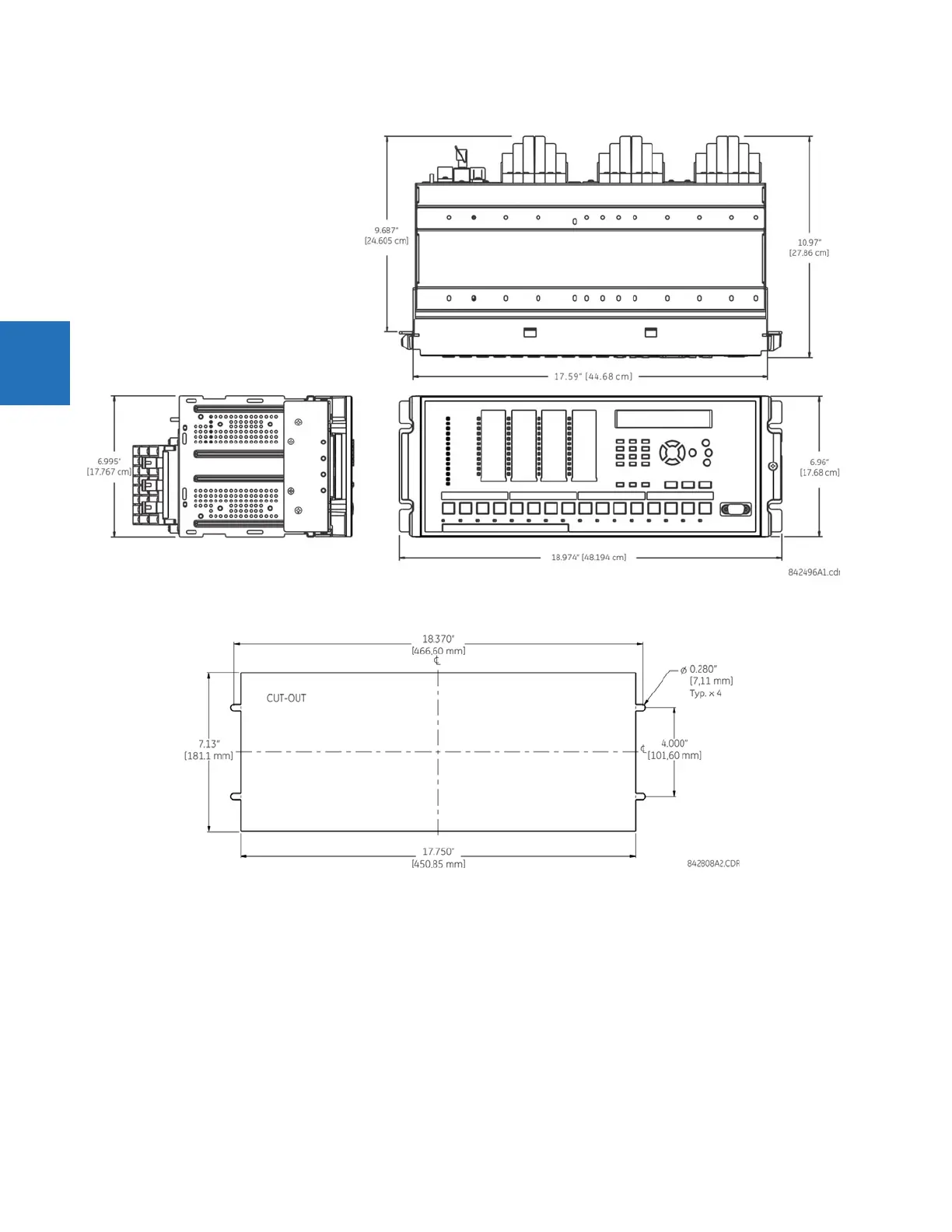

Figure 3-2: Horizontal dimensions (enhanced front panel)
Figure 3-3: Horizontal mounting (enhanced and graphical front panels)
