Device Labels
LOGIQ E9
–
User Guide
4-45
Direction 5454884-100 English
Rev. 1
Warning Label Locations (continued)

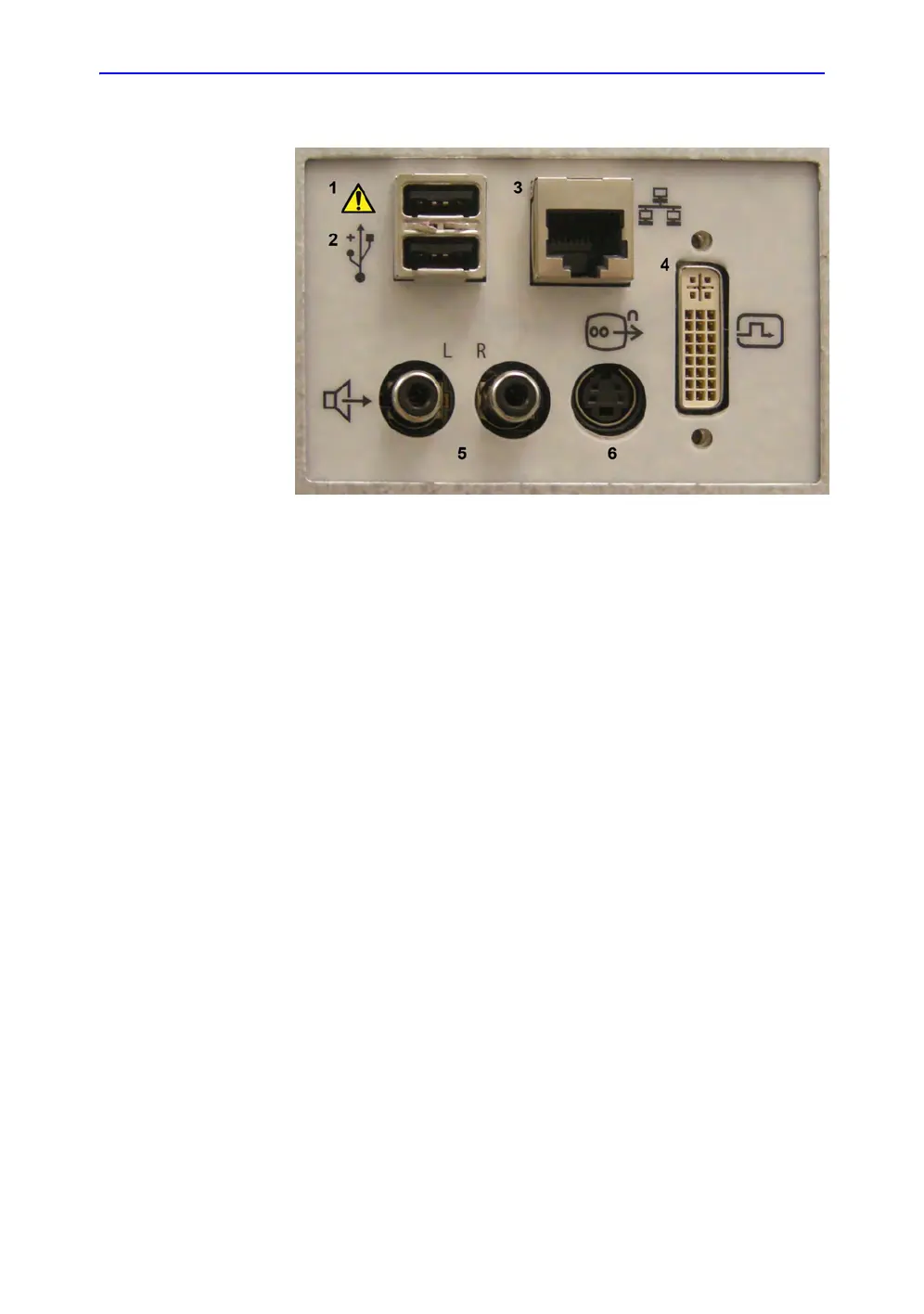

Figure 4-3. Peripheral/Accessory Connector Panel
Table 4-9: Accessory/Connector Panel Explanations
1. USB Ports
2. Ethernet Connection
3. Possible shock hazard. Do not
remove covers or panels. No
user serviceable parts are
inside. Refer servicing to
qualified service personnel.
4. DVI Port Connector
5. Audio In/Out
6. S-Video
