Getting Started
1-30
LOGIQ E9
–
User Guide
Direction 5454884-100 English
Rev. 1
Cable Handling
Take the following precautions with probe cables:
• Keep free from wheels. Use the cable hooks located below
the operator panel.
• Do not bend the cable acutely
• Avoid crossing cables between probes.
Activating the Probe
To activate the probe, select the appropriate probe from the
probe indicators on the Touch Panel.

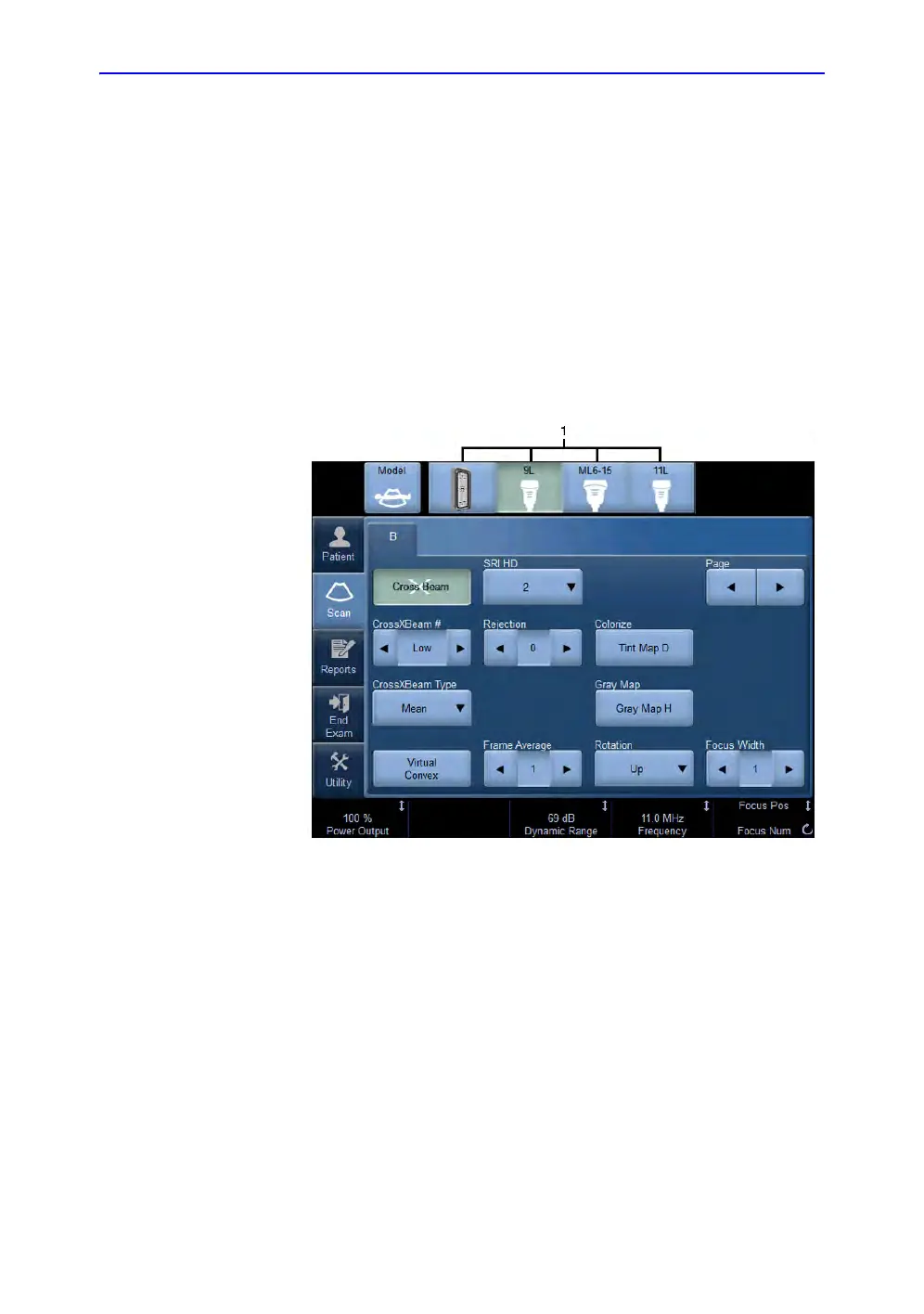

Figure 1-17. Probe Indicators
1. Probe Indicators
The probe's default settings for the mode and selected exam are
used automatically.
